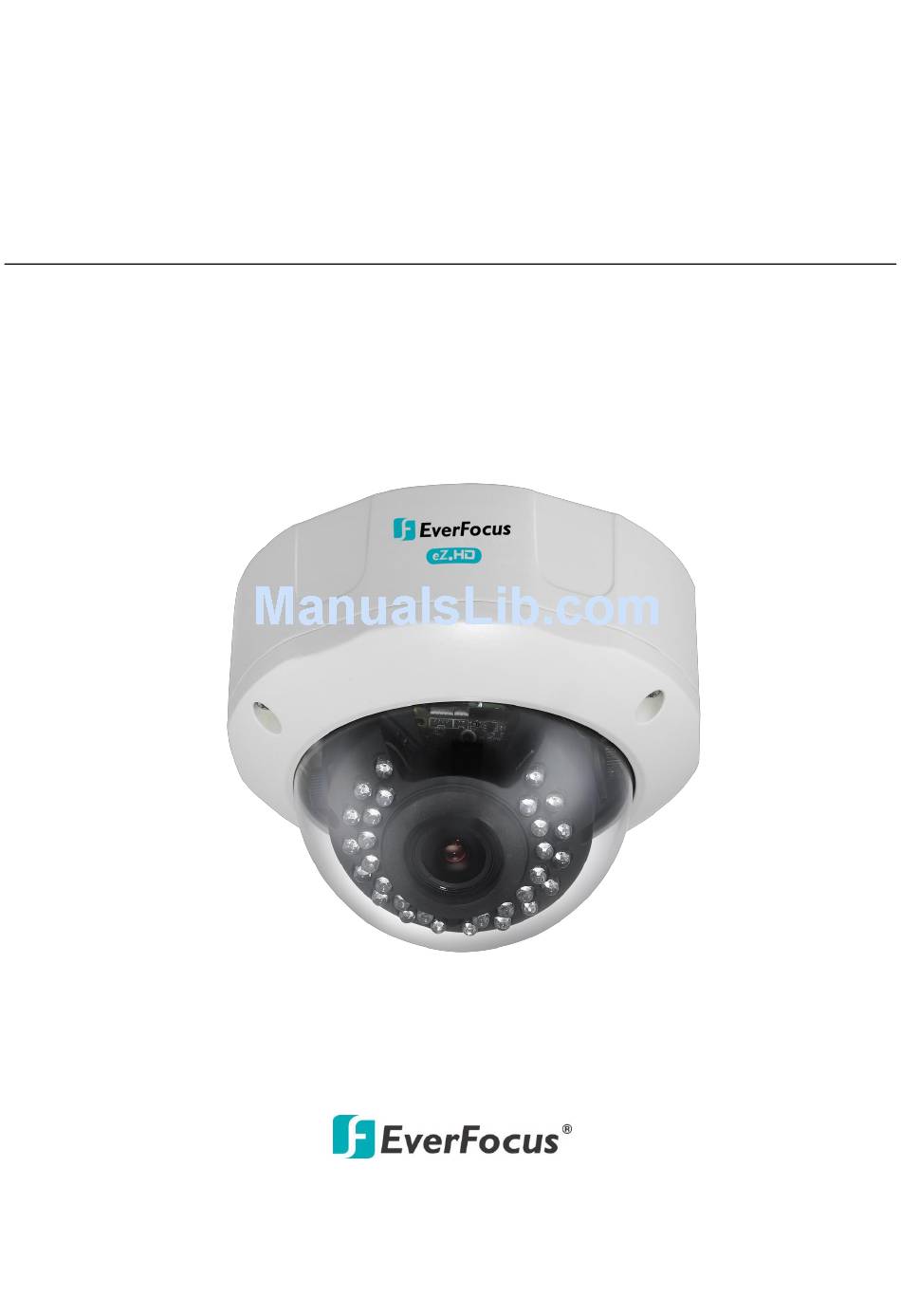

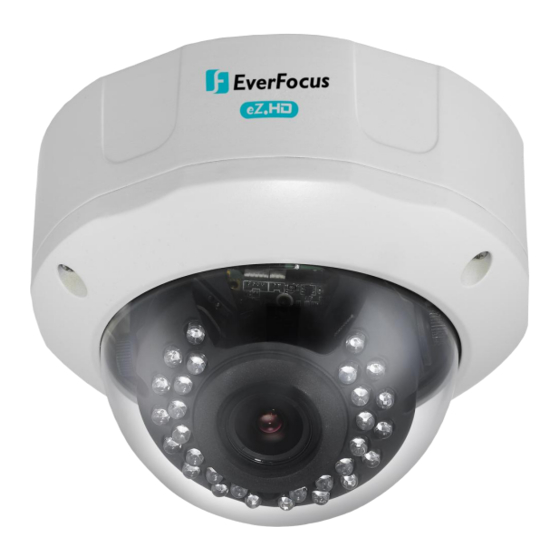

- Page 1 EHD930 eZ.HD Series 720p Analog High Definition True Day/Night Outdoor IR Dome Vandal Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: Nov., 2014...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein.
- Page 3 Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Contents 1. Introduction........................5 Packing List ........................5 Features .......................... 5 2. Cable Description ......................6 3. Installation ........................7 Installation and Adjustment ................... 7 4. Configuration in the OSD Menu ..................12 5. Specifications ........................16... -
Page 5: Introduction
To take full advantage of the amazing resolution available from this advanced imaging technology, the EverFocus eZ.HD Series EHD930 uses a vari-focal lens together with 1/2.8" SONY 1.37M pixels CMOS to deliver 720p high resolution. -
Page 6: Cable Description
EHD930 eZ.HD Vandal Dome Camera Provides 3D Noise Reduction ensures less blurry moving subjects, vivid and high SN ratio images even under low light environment Support 720p & 960H analog signal output, which can be easily switched by OSD ... -
Page 7: Installation
EHD930 eZ.HD Vandal Dome Camera 3. Installation 3.1 Installation and Adjustment To remove the Cover Cap, unscrew the three Set Screws using the supplied Hexagon Wrench. For Ceiling Mount / Wall Mount users: Stick the Template Plate on the position where you want to attach the camera, drill the four holes on the Template Plate for screwing the Adapter Plate with the supplied Screws and Anchors. - Page 8 EHD930 eZ.HD Vandal Dome Camera To screw the camera onto a Wiring Box or using a Bracket: a. You can optionally screw the camera to the wall using an L-Shaped Mounting Bracket. b. Screw the supplied Adapter Plate to the Wiring Box or the L-Shaped Mounting Bracket using the screw holes on the Adapter Plate.
- Page 9 EHD930 eZ.HD Vandal Dome Camera Screw the camera to the Adapter Plate. Connect the camera to a AHD DVR or a portable monitor with the 12VDC or 24VAC power source using the supplied DC power pigtail cable or a power adapter. Using the Test Lead for viewing the video image while adjusting camera angles.
- Page 10 EHD930 eZ.HD Vandal Dome Camera b. Configure the camera settings using the OSD Menu Joystick, connect one end of the Test Lead to the Test-Out connector on the camera module and the other end to the portable monitor. Push the Joystick up / down to select among menu items.
- Page 11 EHD930 eZ.HD Vandal Dome Camera 9. Tear apart the outer packing ( figure 1 ) to take out the Desiccant Bag ( figure 2 ), then make it folded ( figure 3 ) and put it into the camera housing ( figure 4 ). Note: It’s recommended to close the cover cap immediately in case of reducing the absorption capacity of the desiccant bag inside the camera .
-
Page 12: Configuration In The Osd Menu
EHD930 eZ.HD Vandal Dome Camera 4. Configuration in the OSD Menu You can use the Joystick on the rear panel of the camera to configure camera settings in the OSD menu. For details on the OSD menu structure as below: No. - Page 13 EHD930 eZ.HD Vandal Dome Camera Default Select Area1*, Area2, Area3, Area4 Display Position, Size,↑,↓,→,← Black Mask On*/Off HSBLC Level 0-100(20*) All Day* Model Night AGC Level 0-255(48*) Default ATW* AWC→SET Indoor White Outdoor Balance Blue 1-500(50*) Manual 0-100(50*) D→N(Delay) 0-60(1*) Ext* N→D(Delay) 0-60(1*)
- Page 14 EHD930 eZ.HD Vandal Dome Camera Select Area1*,Area2,Area3,Area4 Position, Size,↑,↓,→,← Display Sensitivity 0-100(64*) Color Green*, Blue, White, Red 1.00*,0.75,0.50, Trans 0.25 View Type Off, Block, Outline, All* OSD View On*/Off Alarm Alarm Out On*/Off Alarm Sig High*, Low Time 1-15(3*) Default Select Area1*,Area2,Area3,Area4 Color*...
- Page 15 EHD930 eZ.HD Vandal Dome Camera Pos/Siz Position, Size,↑,↓,→,← Start Press Enter DPC View Off*/On Level 0-255(255*) CAM ID 0-255(1*) RS485 ID Display Off*/On Baud Rate 2400,4800,9600,19200 ,38400 Level 0-10(6*) Sharpness Auto* Start AGC 0-255(50*) End AGC 0-255(200*) Black Level 0-60(0*) Blue Gain 0-100(50*) Red Gain...
-
Page 16: Specifications
EHD930 eZ.HD Vandal Dome Camera 5. Specifications EHD930 Pickup Device 1/2.8" SONY 1.37M pixels CMOS Video Format NTSC and PAL( can be switched via OSD) Effective Pixels 1280 (H)*720 (V) Scanning System Progressive Scan Sensitivity 0 lux with IR on S/N Ratio Over 48 dB (AGC OFF) Electronic Shutter... - Page 17 TEL: +91 22 6726 4500 FAX: +91 22 6726 4518 www.everfocus.in sales@everfocus.in Ihr EverFocus Produkt wurde Your EverFocus product is designed and entwickelt und hergestellt mit manufactured with high quality materials qualitativ hochwertigen Materialien and components which can be recycled and reused.
