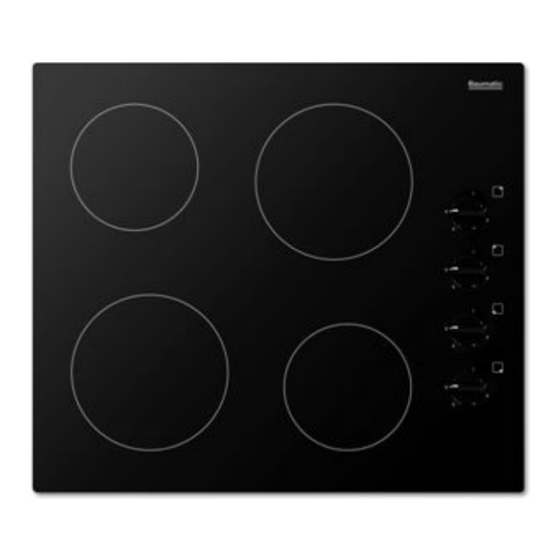

BHC601 60cm 4 Radiant zone frameless ceramic hob...
Page 2
User Manual for your Baumatic BHC601 60 cm 4 Radiant zone frameless ceramic hob. NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
Contents Environmental note Important safety information Specifications Product and aperture dimensions Product specifications Standard accessories Electrical details Ceramic hob surface layout Using the ceramic hob Before first use Control knobs Turning on a zone and setting a power level Residual heat indicator Hob guidelines Cleaning and maintenance Cleaning the ceramic hob top...
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.
You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface.
Page 6
Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
Page 7
Please see the specific section of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
dragged. o Cooking zones should not be switched on without cookware placed on it. Also the cookware should not be empty. Specifications Product dimensions: Height: 512 mm Width: 582 mm Depth: 47 mm Product specifications: o 2 x 1.70 kW radiant zones (diametre 180 mm) o 2 x 1.20 kW radiant zones (diametre 140 mm) o Side control operation o 4 x individual heat indicators...
Rated Voltage: Supply Connection: Max Rated Inputs: Mains Supply Lead: For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. The rating plate of your hob is located on the underneath of the appliance.
Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit.
o To the left of each control knob, there is a residual heat indicator. o After turning a hob zone on, when the temperature of the zone goes above 65°C the corresponding residual heat indicator neon will come on. o After turning a hob zone off, the residual heat indicator neon will stay on until the temperature of the zone falls below 65°C.
Especially if pointed or hard objects are allowed to fall on it with some force. o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC SERVICE DEPARTMENT IMMEDIATELY. Cleaning and maintenance Cleaning operations must only be carried out when the hob is cool.
Type of deposit Remove immediately? Sugar or food/liquid containing sugar Tin foil or plastic Fat splashes Metallic discolourations Water splashes or water rings Using a ceramic hob scraper A ceramic hob scraper will be provided with your appliance. The following guidelines should be followed when using the ceramic hob scraper:- o The scraper should be placed on the ceramic surface at an angle.
It is possible to purchase specialist ceramic hob cleaner/conditioner. You should follow the instructions given by the manufacturer of the specialist ceramic hob cleaner. You should ensure that it is suitable for use on your appliance. Installation The installation must be carried out by a suitably qualified person, in accordance with the current version of the following.
When unpacking the appliance please check that the following items are contained within the packaging: 1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws 4 Spring clips 1 Sealing strip...
o Cut a hole in the worktop that corresponds with the drawings shown above. o IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it, it must also have the additional 20 mm gap shown in the drawing above.
Page 17
appliance. o The protective covering must be removed from both sides. o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the hob from the aperture in future, particularly if it needs to be serviced.
This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage.
Page 19
This should be done before contacting the Baumatic Service Department. o IMPORTANT: The appliance must NOT be connected to the mains supply by means of a 13A plug and socket.
If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at the control switch.
Page 21
Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
