- Page 1 BHC600 60 cm/ BHC700 70 cm touch control ceramic hob using...

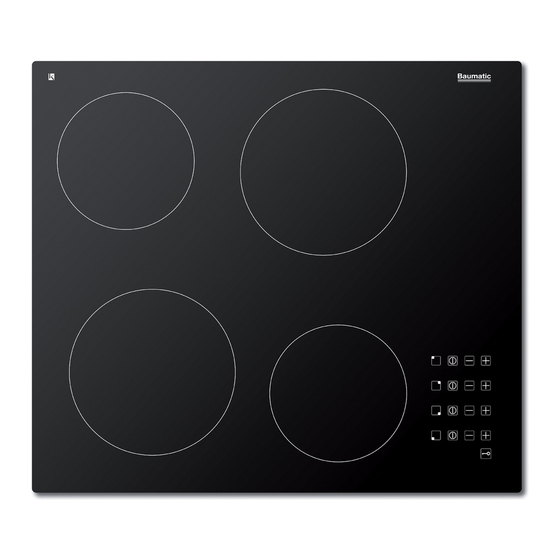

- Page 2 User Manual for your Baumatic BHC600 60 cm Side Touch control 4 zone ceramic hob BHC700 70 cm Side touch control 4 zone ceramic NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance.
-
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 – 8 Specifications 8 – 10 BHC600 BHC700 Product specifications Electrical details Ceramic hob layout Control panel layout Using the ceramic hob 11 - 13 Before first use Touch controls Switching a zone on... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made... - Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the...
- Page 7 Please see the specific section of this booklet that refers to stallation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications
Pans should be lifted on and off the hob surface and not dragged. o Cooking zones should not be switched on without cookware placed on it. Also the cookware should not be empty. Specifications BHC600 Product dimensions: Aperture dimensions: Depth: 520 mm... -
Page 9: Bhc700
BHC700 Product dimensions: Aperture dimensions: Depth: 520 mm Depth: 495 mm Width: 700 mm Width: 565 mm Height: 55 mm Product specifications (both models): o 2 x 1.80 kW hyperspeed zones (diameter 175 mm) o 2 x 1.20 kW hyperspeed zones (diameter 140 mm) o Side touch control operation o 4 individual residual heat indicators o Safety lock... -
Page 10: Ceramic Hob Layout
For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. The rating plate of your hob is located on the underneath of the appliance. Therefore it is a good idea to record this information before you install your appliance. -
Page 11: Using The Ceramic Hob
Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit. -
Page 12: Turning Off A Zone
o If you wish to switch on another zone whilst another is already in use, simply press the ON/OFF button for the zone in question. o IMPORTANT: WHEN MULTIPLE COOKING ZONES ARE BEING USED. IF THE POWER OUTPUT GOES ABOVE A CERTAIN LEVEL, THEN THE POWER OF PARTICULAR ZONES MAY BE REDUCED. -
Page 13: Safety Cut-Off
o A neon above the safety lock button will light to show that the safety lock feature has been switched on. o When the safety lock feature is activated, it will disable any of the other buttons on the control panel. o To disable the safety lock feature, you should press the safety lock button (5) for a few seconds. -
Page 14: Cleaning And Maintenance
Especially if pointed or hard objects are allowed to fall on it with some force. o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC CUSTOMER CARE DEPARTMENT IMMEDIATELY. Cleaning and maintenance Cleaning operations must only be carried out when the hob is cool. -
Page 15: After Each Use
Abrasive cleaners or sharp objects will damage the hob surface; you should clean it using water and a little washing up liquid. Although it is easier to clean some deposits whilst the hob surface is still warm. You should take care not to burn yourself if cleaning the hob surface when it is still warm. -
Page 16: Using A Specialist Ceramic Hob Cleaner
o The ceramic surface should be wiped with a damp cloth and a small amount of washing up liquid. o Dry the appliance by rubbing the surface with a clean cloth. Using a specialist ceramic hob cleaner It is possible to purchase specialist ceramic hob cleaner/conditioner. You should follow the instructions given by the manufacturer of the specialist ceramic hob cleaner. -
Page 17: Unpacking The Appliance
When unpacking the appliance please check that the following items are contained within the packaging:- 1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws 1 Sealing strip Installing the appliance... - Page 18 BHC700 o Cut a hole in the worktop that corresponds with the relevant drawing shown above. o IMPORTANT: must observe ventilation requirements shown in the drawing above. o IMPORTANT: There ventilation holes around the outside of the hob. YOU MUST ensure that these holes are not blocked by the work top, when you put the hob into position (see drawing opposite).
- Page 19 o Carefully turn the hob upside down and place it on a cushioned mat. o Apply the sealing strip provided around the edge of the appliance. o The protective covering must be removed from both sides. o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture.
-
Page 20: Electrical Connection
Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. - Page 21 o The cable connections must be in accordance with the diagram located on the bottom of the hob (see above) o The brass link must be positioned as marked in the appropriate diagram. Once established, you should use a good quality screwdriver to carefully fully tighten ALL of the terminal screws.
-
Page 22: Replacing The Mains Supply Cable
This should be done before contacting the Baumatic Customer Care Department. o IMPORTANT: The appliance must NOT be connected to the mains supply by means of a 13A plug and socket. -
Page 23: My Appliance Isn't Working Correctly
* IMPORTANT: If the cooking zone does appear to be hotter than 60°C and the residual heat indicator has not come on, you should call the Baumatic Customer Care Department. o A humming sound is heard when a cooking zone is selected. - Page 24 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 25: Contact Details
