Basic Connection and Usage of the IFU-HS1

How to Connect the Equipment

Using the IFU-HS1 allows you to select the output to the projector or TV from the connected
equipment simply by switching the select switch on the IFU-HS1.
How to connect the equipment to the IFU-HS1 is described below.

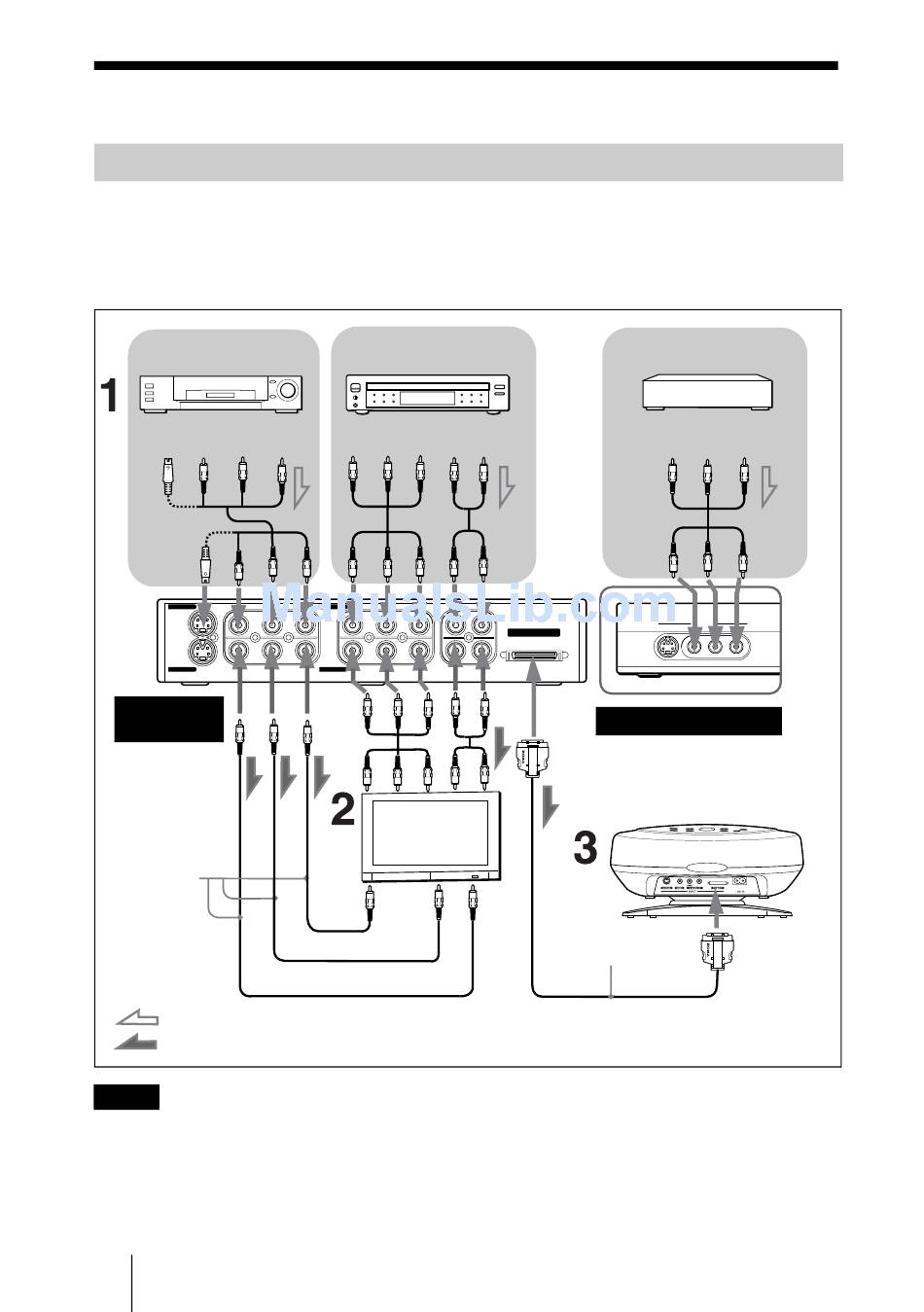

An example of a connection
VIDEO 1 IN:
Video equipment etc.
S video Audio
Video
R (R)
(Blk (Y)
or
Y)
Blk
or
Y Y
R
VIDEO 1 IN S VIDEO VIDEO (MONO)L – AUDIO – R
TV 1 OUT S VIDEO VIDEO (MONO)L – AUDIO – R
Y
Rear of the
IFU-HS1
Audio/video
connecting
cable
(supplied)
(1.5 m)
: Signal flow
Notes
• The signal input from each piece of
equipment connected to the IFU-HS1 is
output from the same system as input
only. For example, to view the picture
output from the equipment connected to
2
GB
Basic Connection and Usage of the IFU-HS1
VIDEO 2 IN:
DVD player etc.
Audio
Y P Audio
P
B
R
L (W)
(B) R (R)
(G) (R)
G B R
W
VIDEO 2 IN Y P /C P /C (MONO)L – AUDIO – R
B B R R
TV 2 OUT Y P /C P /C (MONO)L – AUDIO – R
B B R R
R W G R R
B
Audio
Audio
R (R)
L (W)
Game equipment etc.
Video
Audio
L (W)
R W
PROJECTOR OUT
PJ MULTI
W
Front of the IFU-HS1
TV
LCD Video Projector
Video
(Y)
PJ MULTI cable
(supplied) (10 m)
B: blue
Blk: black
G: green
VIDEO 2 IN on the TV, connect the input
connector of the TV and the output
connector (TV 2 OUT) of the IFU-HS1.
VIDEO 3 IN:
Audio Audio
R (R) L (W)
(Y)
Y W
R
VIDEO 3 IN
S VIDEO VIDEO (MONO)L – AUDIO – R
R: red
W: white
Y: yellow
