Parts Manual / Manuel de pièces / Manual de piezas

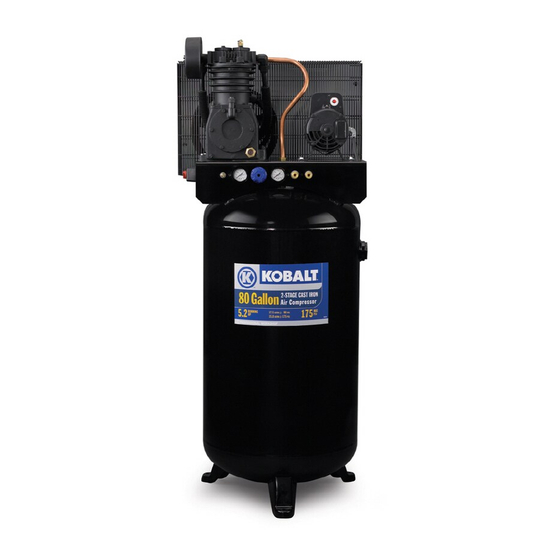

5.2 RHP Electric Two Stage, Cast Iron Pump, Air Compressor
Compresseur d'air électrique biétagé de 5.2 CV et munis
Compresor de aire con bomba de hierro colado y motor eléctricos de dos etapas de 5
RHP
Specification Chart____Tableau des spécifications___Cuadro de especificaciones
ITEM #
RUNNING
(ARTICLE)
H.P.
(ARTÍCULO)
(CV)
138416
5.2
?
Questions? See back pages.__Questions ? Consultez la pages final.__¿Preguntas? Vea la páginas final.
Printed in U.S.A.
TANK CAPACITY
GALLONS
(CAPACITÉ DU
RÉSERVOIR - LITRES)
(CAPACIDAD DEL
TANQUE - LITROS)
80 (302,8)
Item # / Article / Artículo
VOLTAGE/
KICK-IN
AMPS/PHASE
PRESSURE
(TENSION/
(PRESSION
AMPS/PHASE)
D'OUVERTURE)
(VOLTAJE
(PRESION DE
AMP/FASE)
CONEXION)
240/22/1
(9,99 bar)
138416
KICK-OUT
PRESSURE
(PRESSION DE
FERM.)
(PRESION DE
DESCONEXION)
145
175
(12,1 bar)
200-2636_ Rev A_4-07
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kobalt 138416
Summary of Contents for Kobalt 138416
- Page 1 Item # / Article / Artículo 138416 Parts Manual / Manuel de pièces / Manual de piezas 5.2 RHP Electric Two Stage, Cast Iron Pump, Air Compressor Compresseur d’air électrique biétagé de 5.2 CV et munis Compresor de aire con bomba de hierro colado y motor eléctricos de dos etapas de 5 Specification Chart____Tableau des spécifications___Cuadro de especificaciones...
- Page 2 PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS NOTES: Torque to 40-65 lb-in. Serrez de 40 À 65 lbs-in. Torsión hasta 4,5-7,3 N•m Torque to 45-65 lb-in. Serrez de 45 À 65 lbs-in. Torsión hasta 5,1-7,3 N•m Torque to 70-80 lb-ft.
- Page 3 PARTS LIST / LISTE DE PIÈCES / LISTA DE LAS PIEZAS Item Part No Qté Núm / P Cant Description Description Descripción 145-0491 Transfer tube........Tube..........Tubo 058-0012 Compression nut, 3/4”....Écrou de compression ....Tuerca de compressión 068-0003 Connector, Male 3/4” ....Connecteur .......Conectador 064-0003 Elbow ...........Coude ........Codo 031-0020...
- Page 4 PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS NOTES: PUMP - 040-0387 Torque to 10 lbs-ft Specifications Serrez de 10 lbs-ft Torsión hasta 13,6 N•m Weight 145 LBS Torque to 25 lbs-ft Oil Capacity 18.5 OZ Serrez de 25 lbs-ft. Torsión hasta 34,0 N•m Lubrication 10W-30 All weather...
- Page 5 PARTS LIST / LISTE DE PIÈCES / LISTA DE LAS PIEZAS Item Part No Qté Núm / P Cant Description Description Descripción 019-0244 Spacer, h.p. discharge ....Entretoise, décharge....Espaciador, descarga 043-0209 Intake valve assy, l.p....Ensemble de la soupape ..Conjunto de válvula 043-0210 Exhaust valve assy, l.p.
- Page 6 PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS NOTES: Torque to 3-5 lb-in. Serrez de 3 À 5 lbs-in. Torsión hasta .34-,56 N•m Torque to 125-150 lb-in. Serrez de 125 À 150 lbs-ft. Torsión hasta ,14,1-17,0 N•m Torque to 20-30 lb-in.
-
Page 7: Parts And Service
PARTS AND SERVICE Replacement parts and service are available from your Attach your sales receipt at bottom right. nearest authorized Service Center. If the need arises, contact Product Service as listed at right. When needing service, please contact the nearest authorized Service Center or call: When consulting with a Service Center or Product Service, refer to the model number and serial number... - Page 8 DO NOT RETURN TO STORE! CALL US FIRST! IMPORTANT - Please Read Thank you for purchasing this product. This compressor was built to meet the highest quality standards and factory tested to assure satisfactory use. If you have any questions which are not addressed in the owner’s manual, or need service information, call us toll free at 1-866-307-4104.
