Bogen PCM2000 User Manual

Zone paging module for bogen's pcm2000 zone paging system
Hide thumbs Also See for PCM2000:
Table of Contents

Advertisement

Quick Links

See also: Configuration Manual

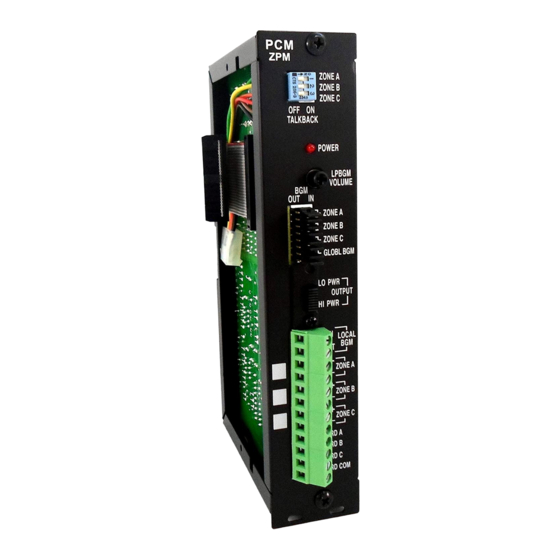

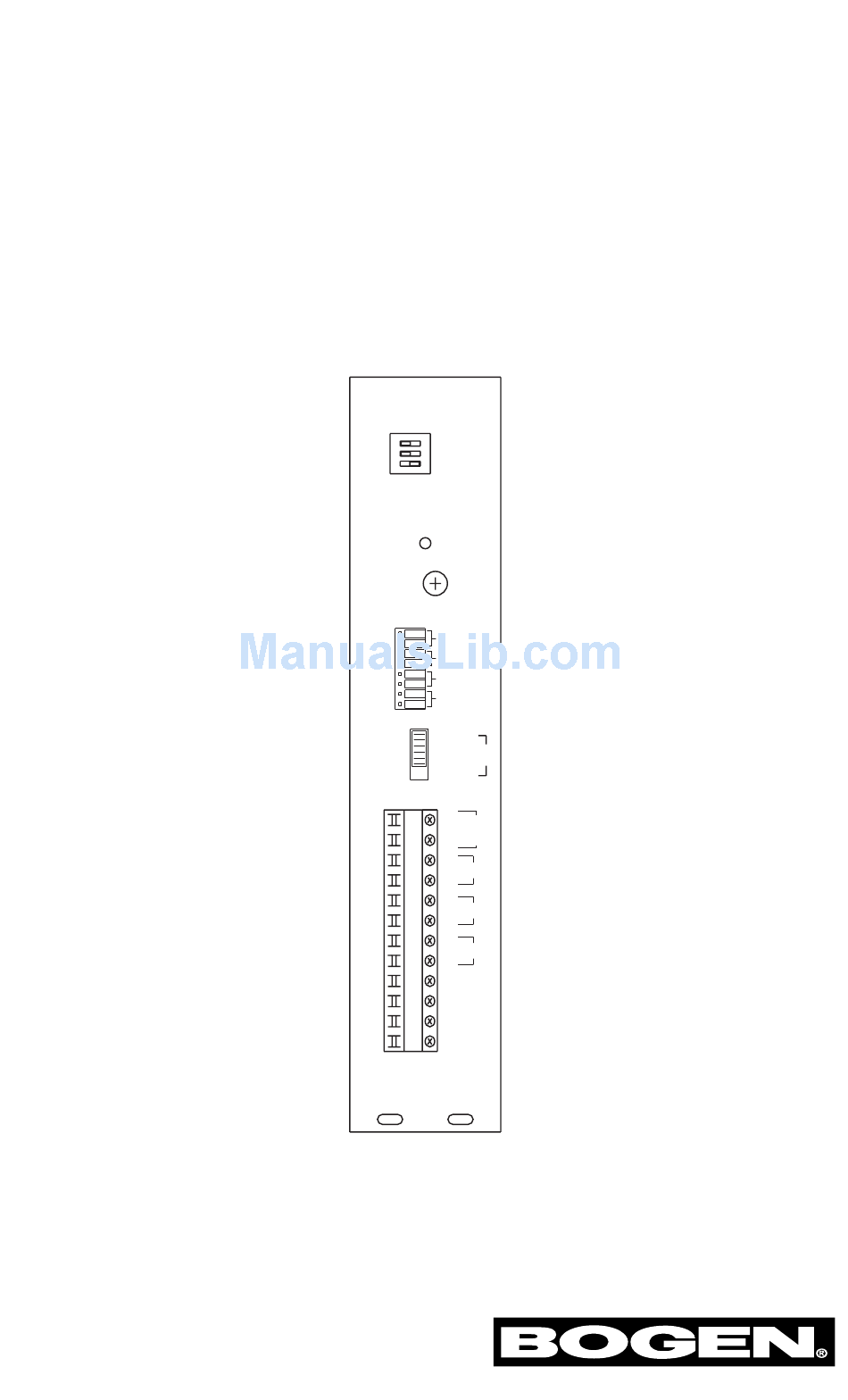

Bogen Model PCMZPM
Zone Paging Module for
Bogen's PCM2000 Zone Paging System
© 2000 Bogen Communications, Inc.
Part No. 54-5947-01R2
Printed in Korea. 0009
PCM
ZPM
ZONE A
ZONE B
ZONE C
OFF
ON
TALKBACK
POWER
LPBGM
VOLUME
BGM
OUT IN
ZONE A
ZONE B
ZONE C
GLOBL BGM
LO PWR
OUTPUT
HI PWR
IN
LOCAL
BGM
RT
+
ZONE A
-
+
ZONE B
-
+
ZONE C
-
RD A
RD B
RD C
RD COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCM2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bogen PCM2000

Summary of Contents for Bogen PCM2000

  • Page 1 Bogen Model PCMZPM Zone Paging Module for Bogen's PCM2000 Zone Paging System © 2000 Bogen Communications, Inc. Part No. 54-5947-01R2 Printed in Korea. 0009 ZONE A ZONE B ZONE C TALKBACK POWER LPBGM VOLUME OUT IN ZONE A ZONE B...
  • Page 2 PCMZPM...

  • Page 3: Table Of Contents

    PCMZPM Contents Description ...4 Talkback Option ...4 Set Output Type ...4 BGM Volume ...4 BGM Options ...5 Local BGM ...5 Zone Wiring ...5 Relay Driver Output ...7...

  • Page 4: Talkback Option

    PCMZPM Description The Bogen PCMZPM module provides three zones of paging to the PCM2000 system. Up to three PCMZPM modules can be used in a basic system to pro- vide up to nine zones of paging. Additional modules can be combined with a PCMCPU module in a satellite system when more than nine zones are required.

  • Page 5: Bgm Options

    PCMZPM BGM Options A three-column jumper field is available to connect or disconnect each zone output to the background music bus. Place the jumper in the OUT position to disconnect the zone from the BGM bus. Place the jumper in the IN position to connect the zone to the BGM bus.
  • Page 6 PCMZPM Amplifier 25V COM GND ZONE A ZONE B ZONE C TALKBACK POWER LPBGM VOLUME OUT IN ZONE A ZONE B ZONE C GLOBL BGM LO PWR OUTPUT HI PWR LOCAL ZONE A ZONE B ZONE C RD A RD B RD C RD COM...

  • Page 7: Relay Driver Output

    Relay Driver Output Each zone module has three relay driver outputs: RD A, RD B, and RD C - one for each speaker zone.When a zone is active, its relay driver is shorted to RD COM through an open collector transistor. These drivers can be used to acti- vate external relays to provide greater power capacity or to operate external equipment.The power supply for these relays must be 12V DC or less.The total sink current per driver cannot exceed 100 mA.
  • Page 8 50 Spring Street, Ramsey, NJ 07446 Tel. 201-934-8500, Fax: 201-934-9832 Web Site: www.bogen.com / E-mail: info@bogen.com...
