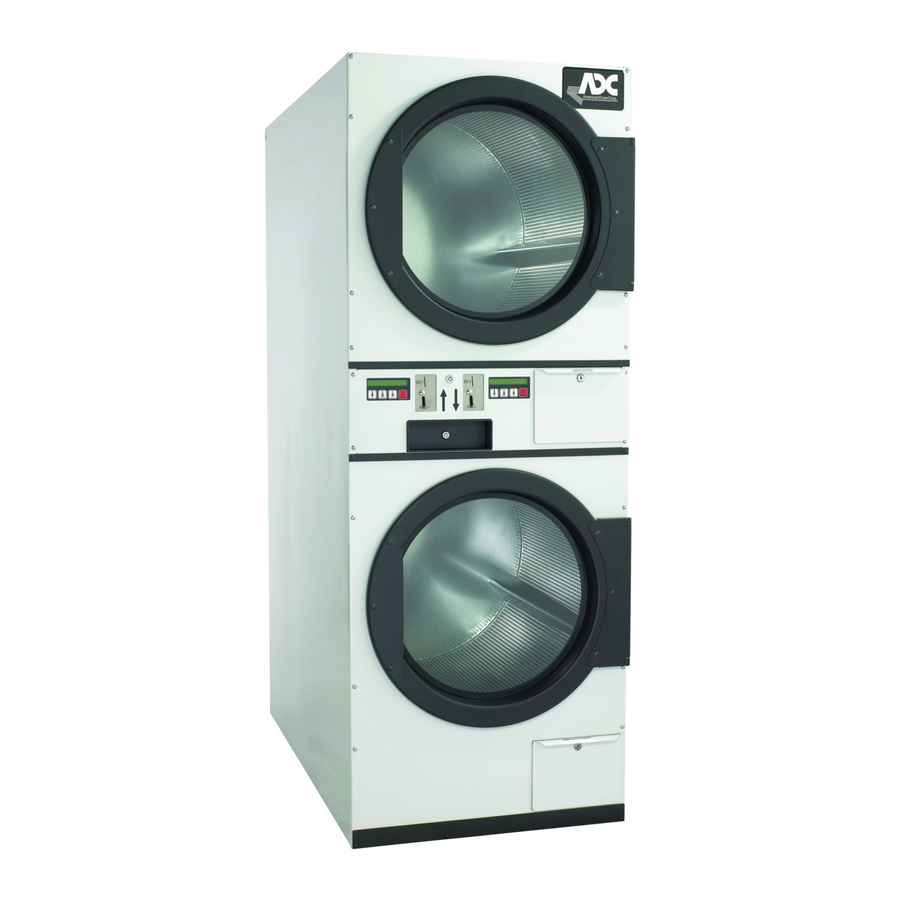

- Page 1 AD-236 Parts Manual 24 VAC Phase 5 American Dryer Corporation 88 Currant Road Fall River, MA 02720-4781 Telephone: (508) 678-9000 / Fax: (508) 678-9447 E-mail: techsupport@amdry.com www.amdry.com 072400JO/tcosta ADC Part No. 450347...
- Page 2 For your convenience, log the following information: MODEL NO. __________________________________________ “IMPORTANT NOTE TO PURCHASER” POUR VOTRE SÉCURITÉ Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil. AD-236...
-
Page 3: Table Of Contents
Coin Control Door Assembly For Models Mfd. as of May 30, 2003 ... 2 Locking Control Door Assembly For Models Mfd. prior to May 30, 2003 ... 3 Coin Microprocessor Control Panel/Box Assemblies ... 4, 5 Upper Front Panel Assembly (For Plastic Door) ... 6 Upper Front Panel Assembly (For Cold Rolled Steel [CRS] Door) ... -
Page 4: Coin Control Door Assembly
Illus. No. Part No. Qty. Description 160040 160140 883896 White Locking Control Door Complete (includes illus. nos. 1 through 3 and 6) 883897 Ivory Locking Control Door Complete (includes illus. nos. 1 through 3 and 6) 883898 Blue Locking Control Door Complete (includes illus. -
Page 5: Locking Control Door Assembly
Locking Control Door Assembly For Models Mfd. prior to May 30, 2003 Illus. No. Part No. Qty. Description 882691 White Locking Control Door Complete (includes illus. nos. 1 through 3) 883466 Ivory Locking Control Door Complete (includes illus. nos. 1 through 3) 882692 Almond Locking Control Door Complete (includes illus. -
Page 6: Coin Microprocessor Control Panel/Box Assemblies
Coin Microprocessor Control Panel/Box Assemblies NOTE: Duplicate ALL components for right hand side of control box. American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781... - Page 7 Coin Microprocessor Control Panel/Box Assemblies Illus. No. Part No. Qty. Description 112526 Coin Keyboard (touch pad) Label Assembly 882694 Control Panel Assembly Less Acceptor (includes illus. nos. 1, 2, and 10 through 12) 882695 White Coin Box 883467 Ivory Coin Box 882696 Almond Coin Box 882697...
-
Page 8: Upper Front Panel Assembly (For Plastic Door)
Illus. No. Part No. Qty. Description 882705 White Upper Front Panel Assembly (includes illus. nos. 1, 2, 3, and 6) 882706 Almond Upper Front Panel Assembly (includes illus. nos. 1, 2, 3, and 6) 882707 Blue Upper Front Panel Assembly (includes illus. -
Page 9: Upper Front Panel Assembly (For Cold Rolled Steel [Crs] Door)
Upper Front Panel Assembly (For Cold Rolled Steel [CRS] Door) Illus. No. Part No. Qty. Description 883260 White Upper Front Panel Assembly (includes illus. nos. 1, 2, and 3) 883262 Almond Upper Front Panel Assembly (includes illus. nos. 1, 2, and 3) 883261 Blue Upper Front Panel Assembly (includes illus. -
Page 10: Lower Front Panel Assembly (For Plastic Door)
Illus. No. Part No. Qty. Description 882702 White Lower Front Panel Assembly (includes illus. nos. 1 through 4, 6, and 7) 882703 Almond Lower Front Panel (includes illus. nos. 1 through 4, 6, and 7) 882704 Blue Lower Front Panel (includes illus. -
Page 11: Lower Front Panel Assembly (For Cold Rolled Steel [Crs] Door)
Lower Front Panel Assembly (For Cold Rolled Steel [CRS] Door) Illus. No. Part No. Qty. Description 883479 White Lower Front Panel Assembly (includes illus. nos. 1 through 4 and 7) 883481 Almond Lower Front Panel (includes illus. nos. 1 through 4 and 7) 883480 Blue Lower Front Panel (includes illus. -
Page 12: Plastic Main Door Assembly
Illus. No. Part No. Qty. Description 881422 Black Plastic Main Door Assembly Complete with Mechanical Fasteners (includes illus. nos. 1 and 5 through 9) 800448 12-1/2” Stainless Steel Main Door Hinge Assembly 150410 #10-24 x 3/8” Phillips Pan Head Taptite Screw 152014 1/4-20 Free Spin Wash Nut 102349... -
Page 13: Main Door "Steel" Assembly
Main Door “Steel” Assembly Illus. No. Part No. Qty. Description 881150 Black Main Door Assembly Complete (includes illus. nos. 1, 2, and 8 through 15) 102354 Door Gasket 170731 Black Gasket Adhesive (10.3 oz. cartridge) 881152 Black Top Hinge Block Assembly (includes illus. -
Page 14: Main Door Switch Assembly (For Plastic Door)
Illus. No. Part No. Qty. Description 152013 #6-32 Hex Nut 153008 #6 Lock Washer 137005 Single Pole Door Switch 121028 Insulated Terminal 154281 3/8” Standard Nylon Spacer 800448 12-1/2” Stainless Steel Main Door Hinge Assembly (includes illus. nos. 6 and 7) 153565 #6 Stud 881246... -
Page 15: Main Door Switch Assembly (For Cold Rolled Steel [Crs] Type Door)
Main Door Switch Assembly (For Cold Rolled Steel [CRS] Type Door) Illus. No. Part No. Qty. Description 150006 #6-32 x 7/8” Phillips Pan Head Machine Screw 152013 #6-32 Hex Nut 153010 #6 Star Washer 137005 Door Switch ONLY 122636 Flag Terminal 881211 Black Main Door Switch Housing 881153... -
Page 16: Basket (Tumbler)/Support Assembly
Illus. No. Part No. Qty. Description 800831 Basket (tumbler) and Support Assembly Complete with Felt Collar (includes illus. nos. 1 through 11) 800721* Basket (tumbler) ONLY (includes illus. nos. 1, 2, and 6) 800891 Stainless Steel Basket (tumbler) and Support Assembly Complete with Felt Collar (includes illus. -
Page 17: Lint Drawer Assembly
Lint Drawer Assembly Illus. No. Part No. Qty. Description 883995 White Locking External Lint Drawer 882712 Almond Locking External Lint Drawer 883996 Blue Locking External Lint Drawer 883994 Ivory Locking External Lint Drawer 882708 White External Lint Drawer 882709 Almond External Lint Drawer 882710 Blue External Lint Drawer 883472... -
Page 18: Lint Drawer Switch Assembly
Illus. No. Part No. Qty. Description 800972 Lint Drawer Switch Box (for bottom pocket Only) 122002* Lint Drawer Switch 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw – Not Illustrated (for bottom pocket Only) Duplicate lint drawer switch for upper pocket. American Dryer Corporation Lint Drawer Switch Assembly 88 Currant Road / Fall River, MA 02720-4781... -
Page 19: Upper Pocket Sensor Bracket Assembly
Upper Pocket Sensor Bracket Assembly Illus. No. Part No. Qty. Description 800769 Temperature Sensor Bracket 882726 Temperature Sensor Bracket Complete (includes illus. nos. 1 through 11) 882931 Temperature Sensor Probe (includes illus. nos. 2, 8, 10, and 11) 130112 225º Automatic Reset Thermostat 150005 #6-32 x 1/4”... -
Page 20: Lower Pocket Sensor Bracket Assembly
Illus. No. Part No. Qty. Description 800770 Temperature Sensor Bracket ONLY 882727 Temperature Sensor Bracket Complete (includes illus. nos. 1 through 11) 882931 Temperature Sensor Probe (includes illus. nos. 2, 8, 10, and 11) 130112 225º Automatic Reset Thermostat 150005 #6-32 x 1/4”... -
Page 21: Idler Bearing Assembly
Idler Bearing Assembly Illus. No. Part No. Qty. Description 100111 5L-650 V-Belt (to basket [tumbler] pulley) 101129 9” x 2-1/2” Pulley with 3/16” Key 100113 4L-400 V-Belt (to motor pulley) for 60 Hz Models ONLY 100115 4L-410 V-Belt (to motor pulley) for 50 Hz Models ONLY 154301 5/16-18 x 1”... -
Page 22: Basket (Tumbler) Bearing Assembly
Basket (Tumbler) Bearing Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781... -
Page 23: Basket (Tumbler) Bearing Assembly
Basket (Tumbler) Bearing Assembly Illus. No. Part No. Qty. Description 880203 1-3/8” Flange Bearing 153005 3/8” Lock Washer 152005 3/8-16 Hex Nut 882544 Pillow Block Bearing Assembly Complete (includes illus. nos. 4 through 14 and 20) 882545 Pillow Block Bearing Assembly Complete (for models mfd. -
Page 24: T.e.f.c. Motor Mount Assembly
Illus. No. Part No. Qty. Description 100604 12-1/2” Impellor with 1/2” Bore 152006 1/2-20 Left Hand Jam Nut 153050 1/2” S.A.E. Flat Washer 100702 1/8” x 1/8” x 1-1/2” Key 153050 1/2” S.A.E. Flat Washer 117604 Noise Suppression Tape (sold by the foot) 800965 Motor Mount ONLY 803967... -
Page 25: T.e.f.c. Motor Mount Assembly
T.E.F.C. Motor Mount Assembly Illus. No. Part No. Qty. Description 150501 5/16-18 x 3/4” Hex Head Machine Bolt 153002 5/16” Lock Washer 153001 5/16” Flat Washer 154000 5/16-18 Tinnerman Nut 181049 1/2 HP 100-230v 1ø 50/60 Motor with Plug 883629 1/2 HP 240v 1ø... -
Page 26: Direct Spark Ignition (Dsi) Gas Valve/Burner Assembly
Direct Spark Ignition (DSI) Gas Valve/Burner Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781... -
Page 27: Direct Spark Ignition (Dsi) Gas Valve/Burner Assembly
Direct Spark Ignition (DSI) Gas Valve/Burner Assembly Illus. No. Part No. Qty. Description 824142 Gas Valve/Burner Tube Mounting Plate ONLY 809313* Natural Gas - Gas Valve/Burner Assembly Complete Less Orifice (includes illus. nos. 1 and 3 through 18) 809314* Liquid Propane (L.P.) Gas Valve/Burner Assembly Complete Less Orifice (includes illus. -
Page 28: Gas Piping Assembly
Illus. No. Part No. Qty. Description 318702 Top Pipe Support Bracket ONLY 150300 #10-16 x 1/2” Hex Washer TEK Screw 141236 Gas Piping Manifold American Dryer Corporation Gas Piping Assembly 88 Currant Road / Fall River, MA 02720-4781... -
Page 29: Gas Burner Assembly
Gas Burner Assembly Illus. No. Part No. Qty. Description 800526 Gas Burner Chamber Assembly (includes illus. nos. 1 through 3) 318006 Flame Viewing Plate 150300 #10-16 x 1/2” Hex Washer TEK Screw 802502 Hi-Limit Bracket Assembly (includes illus. nos. 4 through 8) 319710 Hi-Limit Bracket ONLY 150301... -
Page 30: Sail Switch Assembly
Illus. No. Part No. Qty. Description 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 802800 Sail Switch Box with Cover and Bracket (includes illus. nos. 2, 4, and 5) 154004 Twin Speed Nut 150300 #10-16 x 1/2” Hex Head TEK Screw 802799 Sail Switch Box Cover and Bracket ONLY 122200... -
Page 31: Single Phase (1Ø) Motor, Electrical Relay Panel Assembly
Single Phase (1ø) Motor, Electrical Relay Panel Assembly Illus. No. Part No. Qty. Description 150009* #6-32 x 1-1/2” Phillips Machine Screw 120701* Power Block 121300* Open/Closed Bushing 353142* Power Block Mounting Bracket 824828 Arc Suppressor (A.S.) Capacitor 151000* #6-32 Pal Nut 152001* #8-32 Hex Nut 153012*... -
Page 32: 3-Phase (3Ø) Motor, Electrical Relay Panel Assembly
Illus. No. Part No. Qty. Description 150009* #6-32 x 1-1/2” Phillips Machine Screw 120701* Power Block 121300* Open/Closed Bushing 353142* Power Block Mounting Bracket 137015 Arc Suppressor (A.S.) Capacitor ONLY 151000* #6-32 Pal Nut 152001* #8-32 Hex Nut 153012* #8 Star Washer 132447 24 VAC Motor Contactor 826340... -
Page 33: Back Guard Assembly
Back Guard Assembly Illus. No. Part No. Qty. Description 311014 Upper/Lower Back Guard Assembly 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 318702 Top Pipe Support Bracket ONLY 150300 #10-16 x 1/2” Hex Washer TEK Screw 103500 Adjustable Leveling Leg Telephone: (508) 678-9000 Fax: (508) 678-9447... -
Page 34: Exhaust Ducting Assembly
Illus. No. Part No. Qty. Description 880505 Wye Branch Damper Assembly 143527 6” Round x 7” Oval Straight Boot 143539 15-1/2” Long x 7” Oval Duct 143537 7” Oval x 45º Elbow 143538 6” Round x 7” Oval Straight Boot 143536 6”... -
Page 35: Additional Parts Available
Additional Parts Available Part No. Description 114533 “Black/White/Green Ground” Label 112280 “Clean Lint Screen” Label 112533 “Phase 5 Coin Program Location Summary” Label 114001 “Caution - Exhaust/Lint Screen” Label 114006 “Warning - Fire Hazards” Label 120100 3/8” Straight (BX) Connector 120300 3/8”... - Page 36 ADC 450347 8 - 08/18/04-1...
