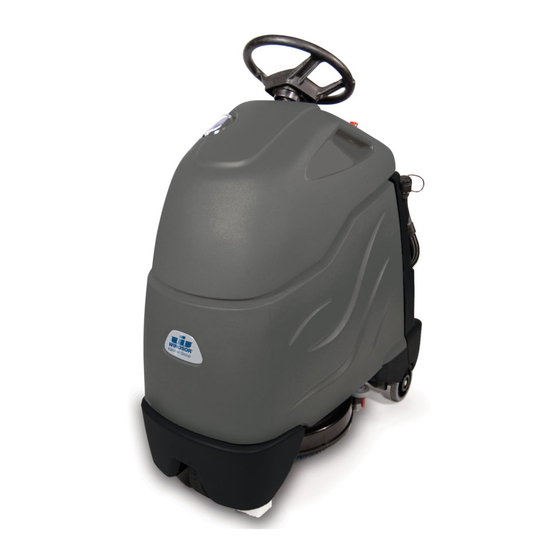

Windsor CS20 Operator Instructions Manual
  1. Manuals
  2. Brands
  3. Windsor Manuals
  4. Scrubber
  5. chariot iScrub cs20
  6. Operator instructions manual

Windsor CS20 Operator Instructions Manual

Hide thumbs Also See for CS20:
Table of Contents

Advertisement

Quick Links

86359770-N
03/18/13
Operating instructions (ENG)
Read these instructions before using the machine.
MODELS:
CS20
10061250
CSC20
10061330
CSX20
10061370
CSXC20
10061380
CS22SP
10061300
CSC22SP
10061340
From Serial Number (1*)
See Serial number page or
call manufacturer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Windsor CS20

Summary of Contents for Windsor CS20

  • Page 1 Operating instructions (ENG) MODELS: CS20 10061250 CSC20 10061330 CSX20 10061370 CSXC20 10061380 CS22SP 10061300 CSC22SP 10061340 From Serial Number (1*) See Serial number page or call manufacturer. Read these instructions before using the machine. 86359770-N 03/18/13...

  • Page 2: Machine Data Label

    Warranty Registration Thank you for purchasing a Windsor product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product go to : www.windsorind.com/WarrantyRegistration.aspx...

  • Page 3: Table Of Contents

    Troubleshooting ......54 Battery Discharge Indicator Troubleshooting ..56 86359770 - CS20 SCRUBBER...

  • Page 4: Parts

    Parts PARTS...
  • Page 5 Bumper 86359770 - CS20 SCRUBBER...
  • Page 6 86276980 SCREW 5/16-18 X 2 HHCS SS 86010670 WASHER 5/16 FLAT SS 86276070 SCR, 5/16-18 X 3/4 CARRIAGE SS 86270830 NUT 5/16-18 HEX NYLOCK SS 86323950 PAD, TIP 86327510 SCR, KA50X16, PT OHS, WN1412, A2 SS 86359770 - CS20 SCRUBBER...
  • Page 7 Bumper - Deluxe & Cylindrical 86359770 - CS20 SCRUBBER...

  • Page 8: Bumper - Deluxe & Cylindrical

    SCREW 5/16-18 X 2 HHCS SS 86010670 WASHER 5/16 FLAT SS 86276070 SCR, 5/16-18 X 3/4 CARRIAGE SS 86270830 NUT 5/16-18 HEX NYLOCK SS 86323950 PAD, TIP 86327510 SCR, KA50X16, PT OHS, WN1412, A2 SS 86333910 BRACKET, TIE DOWN 86359770 - CS20 SCRUBBER...
  • Page 9 Console 86359770 - CS20 SCRUBBER...

  • Page 10: Console

    BRACKET, HINGE LOWER 86239720 SP HORN, 108DB MINATURE W/RING 86006800 SCREW 10-32 X 1/2 PHTR PLT 86332390 PLATE, COVER 86332770 GASKET, HINGE BRACKET 86332760 GASKET, STEERING SHAFT 86302620 FOAM, 1 X 1 X 18 DELUXE ONLY 86359770 - CS20 SCRUBBER...

  • Page 11: Control Panel

    Control Panel A TORQUE 4-5 FT-LBS A 18 86359770 - CS20 SCRUBBER...

  • Page 12: Control Panel

    Control Panel SERIAL NO. PART NO. QTY DESCRIPTION NOTES FROM 86357790 PANEL, CONTROL, CS20 RE 86337210 SPACER, .14ID X .25OD X .38, NYL 86336110 RELAY, SPST-NO 86336100 CLIP, RELAY 86347250 PCB, RELAY OMRON II 86362190 CONTROLLER, CS20 RE 86326390 CONN, 8MM PITCH, 10 POSN...
  • Page 13 Control Panel 86359770 - CS20 SCRUBBER...
  • Page 14 GASKET, .188 X.31 X 41.0 86354560 BEZEL, ROTARY SWITCH 86358440 O-RING, 4MM ID, 1.5MM THK, BUNA-N 86358430 SCR, M4X12 FHMS, ISO7046 SS NP 86354810 GASKET, ROTARY SWITCH 63130140 SPRING ELEMENT 86348960 IS INCLUDED WITH CONTROL PANEL HARNESS. 86359770 - CS20 SCRUBBER...

  • Page 15: Decals - Disk

    Decals - Disk 86359770 - CS20 SCRUBBER...
  • Page 16 SERIAL NO. PART NO. QTY DESCRIPTION NOTES FROM 86328490 LABEL, RIGHT, iSCRUB 20 86328500 LABEL, LEFT, iSCRUB 20 86004970 LABEL WINDSOR LOGO DOMED 86328550 LABEL, SOLUTION LEVEL 86358050 LABEL, CONTROL PANEL, CS20 86335710 LABEL, BATTERY WIRING 86359770 - CS20 SCRUBBER...

  • Page 17: Decals - Deluxe & Cylindrical

    Decals - Deluxe & Cylindrical 86359770 - CS20 SCRUBBER...
  • Page 18 Decals - Deluxe & Cylindrical SERIAL NO. PART NO. QTY DESCRIPTION NOTES FROM 86342020 LABEL, WINDSOR DOMED LOGO 86358050 LABEL, CONTROL PANEL, CS20 86342000 LABEL, SIDE ISCRUB DLX DISK 86346630 LABEL, ISCRUB 22X SP CYLINDRICAL 86335710 LABEL, BATTERY WIRING 86359770 - CS20 SCRUBBER...

  • Page 19: Drive - Lower

    Drive - Lower A TORQUE 15/18 FT-LBS B TORQUE 10 FT-LBS C TORQUE 15 FT-LBS D TORQUE 5 FT-LBS E TORQUE 100 IN-OZ AFTER 86359770 - CS20 SCRUBBER...
  • Page 20 86362040 TAPE CLOSED CELL 1/8 X 3/4 X 2 1/2 PSA 86362140 SCREW, M6 X 12MM, HEX FLANGE, PLTD FOR INSTALLATION OF 8.636-401.0 WITH BRAKE HARNESS AND LOWER HARNESS, ORDER KIT 8.636-900.0 SEE SERIAL NUMBER PAGE. 86359770 - CS20 SCRUBBER...

  • Page 21: Drive - Chain

    Drive - Chain A TORQUE 78 IN/LBS 86359770 - CS20 SCRUBBER...
  • Page 22 86274150 SCR, 1/4-20 X 1.75 HHCS 86232780 CHAIN MASTERLINK 12.7MM 86368600 WASHER, 2.5OD X 1.25ID X .125THK, DELRIN 86279420 WASHER .75IDX1.25ODX.125THK NY 86278940 WASHER 1/4 ID X 1-1/4 OD PLT 86271370 NUT, 1/4-20 SERFLG STL ZNPLT 86359770 - CS20 SCRUBBER...
  • Page 23 Drive Mounting 86359770 - CS20 SCRUBBER...

  • Page 24: Drive Mounting

    BRACKET, LINKAGE MOUNT, RIGHT 86319730 BRACKET, LINKAGE MOUNT, LEFT 86331630 BRACKET, ROLLER GUIDE 86010670 WASHER, 5/16 X 3/4 SS 86276690 SCR, 5/16-18 X 1.75 CARR SS 86276070 SCR, 5/16-18 X 3/4 CARRIAGE SS 86270830 NUT, 5/16-18 HEX NYLOCK SS 86359770 - CS20 SCRUBBER...

  • Page 25: Frame & Rear Wheels

    Frame & Rear Wheels 86359770 - CS20 SCRUBBER...
  • Page 26 SPACER, FLG .887ID x 1.055D x .345LG 86318030 AXLE, 20mm x 562 mm 86369160 WHEEL, 6.00 X 1.58, GRY W/BEARINGS (*4) 86223470 RING, 20MM EXTERNAL SNAP 86279510 WASHER 3/8 FLAT 86340950 SCR, 3/8 X 1.5, LAG, PLTD * SEE SERIAL NUMBER PAGE 86359770 - CS20 SCRUBBER...

  • Page 27: On Board Battery Charger - Disk

    On Board Battery Charger - Disk 86359770 - CS20 SCRUBBER...
  • Page 28 SCR, 5/16-18 X 1.00 HHCS GR5 86270830 NUT, 5/16-18 HEX NYLOCK SS 86234390 CORD ASM, 16/3 SJTWX2M IEC 86198450 CLAMP, 5/16 DIA NYLON 86228990 BEARING FLG .314IDX.5002OD 86333070 METER, SPE BATTERY CHARGE 86198470 CLAMP, 9/16 DIA NYLON 86359770 - CS20 SCRUBBER...

  • Page 29: On Board Battery Charger - Deluxe & Cylindrical

    On Board Battery Charger - Deluxe & Cylindrical 86359770 - CS20 SCRUBBER...
  • Page 30 86198450 CLAMP, 5/16 DIA NYLON 86228990 BEARING FLG .314IDX.5002OD 86333070 METER, SPE BATTERY CHARGE 86198470 CLAMP, 9/16 DIA NYLON 86333940 BRACKET, CHARGER CORD 86006590 SCREW 10-32 X 1/2 PPHMS SS NP 86264940 CABLE TIE, 11.38" UL/CSA 86359770 - CS20 SCRUBBER...

  • Page 31: Pedal Platform

    Pedal Platform 86359770 - CS20 SCRUBBER...
  • Page 32 BRKT, LINEAR POT 86326140 PIN, DOWEL .25 X 2.75, STEEL 86318010 PEDAL, HEEL 86318000 PEDAL, ACCELERATOR 86317990 PLATFORM, OPERATOR 86311560 POTENTIOMETER ASM, LINEAR 86254970 SPRING, COMP 18MM OD X 83 X 2 86173330 WASHER, M5, FLAT, ISO7093, SS 86359770 - CS20 SCRUBBER...

  • Page 33: Pedal Platform Mounting

    Pedal Platform Mounting 86359770 - CS20 SCRUBBER...
  • Page 34 Pedal Platform Mounting SERIAL NO. PART NO. QTY DESCRIPTION NOTES FROM 86327510 SCR, KA50 X 16, WN1412 A2 SS 86198440 CLAMP, 1/4 PLASTIC CABLE 86327910 SCR, KA50X25, PT OHS, WN1412, PLTD 86173330 WASHER, M5, FLAT, ISO7093, SS 86359770 - CS20 SCRUBBER...

  • Page 35: Recovery Tank

    Recovery Tank A TORQUE 15/17 IN/LBS 86359770 - CS20 SCRUBBER...
  • Page 36 LATCH, CONCEALED KEEPER 86312920 GASKET, VAC MOTOR 86335700 BRACKET, DRAIN HOSE 86007070 SCREW 5/16-18 X 1.00 PTHMS SS 86007650 SPACER, .438D X .317ID X .25L 86010670 WASHER 5/16 FLAT SS 86270830 NUT 5/16-18 HEX NYLOCK SS 86359770 - CS20 SCRUBBER...

  • Page 37: Scrub Brush - Pad Driver

    Scrub Brush - Pad Driver 10A - 10F 86359770 - CS20 SCRUBBER...
  • Page 38 47623930 ROLLER BRUSH COMPLETE RED 47624090 ROLLER BRUSH COMPLETE WHITE 10C 47624100 ROLLER BRUSH COMPLETE ORANGE 47624110 ROLLER BRUSH COMPLETE GREEN 47624120 ROLLER BRUSH COMPLETE BLACK 41140100 MICROFIBRE ROLL COMPLETE BR 55/40 47624150 ROLL PAD BR55 86359770 - CS20 SCRUBBER...
  • Page 39 Scrub Brush Deck - Disk A TORQUE 18 FT-LBS B TORQUE 20 FT-LBS 86359770 - CS20 SCRUBBER...

  • Page 40: Scrub Brush Deck - Disk

    FLEXIBLE STRIP BRUSH, 20" SKIRT 86319820 PIVOT, SQUEEGEE LINKAGE 86338440 SPACER, .41 ID X .73 OD X .105T 86006870 SCREW #10B X 1/2 PHMS BLK 86335450 WASHER, #10 X .75 ODX.040. NYL, BLK 86324480 ACCESS COVER, BRUSH RELEASE 86359770 - CS20 SCRUBBER...

  • Page 41: Scrub Brush Deck Mounting - Disk

    Scrub Brush Deck Mounting - Disk 86359770 - CS20 SCRUBBER...
  • Page 42 PART NO. QTY DESCRIPTION NOTES FROM 86277030 SCR, 5/16-18X1.25 CARRIAGE S 86270830 NUT 5/16-18 HEX NYLOCK SS 86010670 WASHER 5/16 FLAT SS 86259410 WASHER THRUST.51 ID X1ODX.063 86228990 BEARING,FLNGD,.314ID X.502OD 86277130 SCR, 5/16-18 X 1.00 CARRIAGE SS 86359770 - CS20 SCRUBBER...

  • Page 43: Scrub Deck Drive Assembly - Cylindrical

    Scrub Deck Drive Assembly - Cylindrical 86359770 - CS20 SCRUBBER...
  • Page 44 SCREW M6X12 -8.8-R2R (IN6RD) 73122760 WASHER 6 -200HV-A2E ISO7093-1 73060870 SCREW M6X10 -8.8-R3R (IN6RD) SHEET METAL COMPONENT COVERING 50353910 CAP INVER 41002260 DRIVESHAFT COMPLETE 51106860 SPACER SLEEVE 73432310 LOCKING RING 32X1,2 -ST-PH DIN 472 50560100 ROCKER BR-VS 86359770 - CS20 SCRUBBER...
  • Page 45 Scrub Deck - Cylindrical 86359770 - CS20 SCRUBBER...

  • Page 46: Scrub Deck - Cylindrical

    SCREW 6X25 -10.9-A2R (IN6RD) 50354320 BOLT DEFLECTOR ROLL RIGHT KILLER 50354380 DEFLECTOR ROLL 51156810 WASHER 73120660 WASHER 10 -A2 ISO 7090 50354290 LOCKING BAR SIDE PLATE 50354300 BRACKET SCRAPER LIP RIGHT 63304500 PRESSURE SPRING 40353780 MOTOR WITH PLUG 86359770 - CS20 SCRUBBER...

  • Page 47: Scrub Deck Linkage - Cylindrical

    Scrub Deck Linkage - Cylindrical 86359770 - CS20 SCRUBBER...
  • Page 48 SCR, 5/16-18 X 1.5 CARRIAGE SS 86347680 BRACKET, LINKAGE, TOP 86347910 FLNG BRNG, .375 X .44, NYL 86010680 WASHER 3/8 ID X 3/4 OD NYLON 86278330 SHOULDER BOLT, 3/8OD X 3/8L SS 86264920 CABLE TIE, 7" UL/CSA 86359770 - CS20 SCRUBBER...
  • Page 49 Scrub Brush Deck Mounting - Cylindrical 86359770 - CS20 SCRUBBER...

  • Page 50: Scrub Brush Deck Mounting - Cylindrical

    SCR, 5/16-18X1.25 CARRIAGE S 86270830 NUT 5/16-18 HEX NYLOCK SS 86010670 WASHER 5/16 FLAT SS 86259410 WASHER THRUST.51 ID X1ODX.063 86228990 BEARING,FLNGD,.314ID X.502OD 86010680 WASHER 3/8 ID X 3/4 OD NYLON 86010770 WASHER 7/16ID X1DX.08 FLT SS 86359770 - CS20 SCRUBBER...
  • Page 51 Scrub Deck Lift 86359770 - CS20 SCRUBBER...

  • Page 52: Scrub Deck Lift

    PART NO. QTY DESCRIPTION NOTES FROM 86320880 ACT, 36VDC, 3.0" STK, 8.74 LNG 86342240 SPACER, .81 X 1.06 X .125 86328040 PIN, CLEVIS, 1/4 X 2.0 L 86354750 WASHER, 1.00X.264X.070THK, NYL, BLK 86008650 COTTER 1/4" RING 86359770 - CS20 SCRUBBER...

  • Page 53: Solution Tank

    Solution Tank 86359770 - CS20 SCRUBBER...
  • Page 54 86010630 WASHER 1/4 ID X 5/8 OD SS 86264930 CABLE TIE, 3.5" UL/CSA 86328020 HOSE ASM, 1.25 ID X 14.0, 4:1 86353900 SCR POST, 1/4 X 1 BLK PLSTC 86246090 LANYARD,.093X6", 1~LOOP-.26EYE *SEE SERIAL NUMBER PAGE 86359770 - CS20 SCRUBBER...

  • Page 55: Solution Tank - Deluxe

    Solution Tank - Deluxe CYLINDRICAL DISK DELUXE 86359770 - CS20 SCRUBBER...
  • Page 56 Screw 8 X 3/4 PFHT/S BLK ZINC 86317620 FLANGE, WITH O-RING 86317610 GASKET, 5.5 ODX4.5 IDX.06W/PSA 86232790 CHAIN,ASM, #10SS BD X 10" 86272020 NUT, 8-32 HEX THIN NYLOCK SS 86233150 SP CLAMP, 3/8 HOSE (D-SLOT) * SEE SERIAL NUMBER PAGE 86359770 - CS20 SCRUBBER...

  • Page 57: Squeegee

    Squeegee - Disk ATTACHES TO FRAME 86359770 - CS20 SCRUBBER...
  • Page 58 NUT, 3/8-24 HEX JAM, PLTD 86271240 NUT, CAP, PUSH, .25" 86270990 NUT, 10-32 HEX NYLOCK SS 86219690 KNOB, 1.5 OD X 5/16-18 86332400 LIFT BRKT, DOUBLE SCRUB 86332460 LANYARD ASSY, COILED CABLE 86338160 SQUEEGEE ASM, KIT GUM RUBBER COMPLETE 86359770 - CS20 SCRUBBER...

  • Page 59: Squeegee - Cylindrical

    Squeegee - Cylindrical 86359770 - CS20 SCRUBBER...
  • Page 60 40353100 SUCTION BAR PRE-ASSEMBLED CURVED 86346020 VACUUM TUBE, SQUEEGEE 86372270 SQUEEGEE ASM. 22SP LINATEX COMPLETE 86349630 SCR, SET, M5 X 25MM, ISO4029, CP, SS 86368580 BLADE, SQUEEGEE FRONT 30” LINATEX 86368560 BLADE, SQUEEGEE FRONT 30” GUM 86359770 - CS20 SCRUBBER...

  • Page 61: Squeegee Linkage - Cylindrical

    Squeegee Linkage - Cylindrical 86359770 - CS20 SCRUBBER...
  • Page 62 SP SCREW 5/16-18X1.00 CARRIAGE SS (*3) 86010770 WASHER 7/16ID X1DX.08 FLT SS (*3) 86279630 WASHER, .344IDX1.13ODX.09T PLT (*3) 86270830 NUT 5/16-18 HEX NYLOCK SS (*3) 86367520 BRKT, DECK ADJUSTMENT (*3) 86372740 SQUEEGEE LINKAGE ASSEMBLY *SEE SERIAL NUMBER PAGE. 86359770 - CS20 SCRUBBER...
  • Page 63 Steering 86359770 - CS20 SCRUBBER...

  • Page 64: Steering

    DELUXE & CYLINDRICAL 86271610 NUT 5/8-18 HEX NYLOCK THN 86279420 WASHER,.75IDX1.25ODX.125THK NY 86228790 BEARING FLANGE .88ODX.75IDX.75 86339320 SHAFT, STEERING KIT CS20 86339330 SHAFT, STEERING ASM DELUXE & CYLINDRICAL 86234810 COVER, STEERING WHEEL 66403520 CAP STEERING WHEEL WINDSOR DELUXE & CYLINDRICAL 86333950 BEARING, .75ID X 1.0OD X .63...

  • Page 65: Vacuum

    Vacuum See maintenance section for motor mounting details. 86359770 - CS20 SCRUBBER...
  • Page 66 WASHER 1/4 ID X 5/8 OD SS 86264930 CABLE TIE, 3.5" UL/CSA 86327500 MOUNT, VIBRATION 86012210 VAC MOTOR, 36VDC 2ST TD 86135310 BRUSH SET, 24/36V VAC, WINDSOR 86217750 ELBOW, VAC MUFFLER 90 DEG DELUXE ONLY 86264940 CABLE TIE, 11.38" UL/CSA DELUXE ONLY 86222220...

  • Page 67: Wiring - Battery

    Wiring - Battery MAIN WIRING HARNESS 86359770 - CS20 SCRUBBER...
  • Page 68 NOT SHOWN 86270920 SP NUT, 6-32 HEX NYLOCK SS 86279450 WASHER, #6 FLAT SAE PLTD 86274710 SCR, 6-32 X 1.0 PPHMS 86271910 NUT, 5/16-18 FLEXLOCK NOT SHOWN 86006560 SCREW 5/16-18 X 1 HHCS SS NOT SHOWN 86359770 - CS20 SCRUBBER...

  • Page 69: Wiring Diagram 1

    Wiring Diagram 1 9A or 86359770 - CS20 SCRUBBER...
  • Page 70 PART NO. QTY DESCRIPTION NOTES FROM 86326170 HARNESS, OPERATOR PLATFORM 86344450 HARNESS, MAIN ACTUATOR 86333110 HARNESS, CS20 MAIN POT AND BRAKE 86333120 HARNESS, CS20 MAINCHARGER 86333130 HARNESS, CS20 MAIN TRACTION 86333140 HARNESS, CS20 MAIN VACUUM 86333150 HARNESS, CS20 MAIN BRUSH...
  • Page 71 ROTARY INPUT 63-RT BATTERY POS OPEN OPEN OPEN OPEN OPEN 3-WS ACTUATOR 29-SW K5 COIL GND 4-SW ACTUATOR 32-GR SLOW/FAST INH OPEN 34-OR INHIBIT 1 OPEN 65-VI INHIBIT 2 OPEN 33-SW CONTROL LOW 30-RT H-BRIDGE INPUT 86359770 - CS20 SCRUBBER...
  • Page 72 HORN BUTTON MICROSWITCH-COVER PROGRAM SWITCH CHARGER S-UP / S-DOWN MICROSWITCH HOURS METER V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE V-UP & V-DOWN DIODE-MOTOR M4 X1-X2-X3-X4-X5-X12 TERMINAL BLOCK ** X6-X7-X8-X11 DEUTSCH CONNECTOR * X9-X10-X13 PACKARD CONNECTOR FASTON TERMINALS RING TERMINAL BRAKE ELECTOVALVE WATER 86359770 - CS20 SCRUBBER...
  • Page 73 Wiring Diagram 3 86359770 - CS20 SCRUBBER...
  • Page 74 HORN BUTTON MICROSWITCH-COVER PROGRAM SWITCH CHARGER S-UP / S-DOWN MICROSWITCH HOURS METER V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE V-UP & V-DOWN DIODE-MOTOR M4 X1-X2-X3-X4-X5-X12 TERMINAL BLOCK ** X6-X7-X8-X11 DEUTSCH CONNECTOR * X9-X10-X13 PACKARD CONNECTOR FASTON TERMINALS RING TERMINAL BRAKE ELECTOVALVE WATER 86359770 - CS20 SCRUBBER...
  • Page 75 Wiring Diagram 4 86359770 - CS20 SCRUBBER...
  • Page 76 HORN BUTTON MICROSWITCH-COVER PROGRAM SWITCH CHARGER S-UP / S-DOWN MICROSWITCH HOURS METER V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE V-UP & V-DOWN DIODE-MOTOR M4 X1-X2-X3-X4-X5-X12 TERMINAL BLOCK ** X6-X7-X8-X11 DEUTSCH CONNECTOR * X9-X10-X13 PACKARD CONNECTOR FASTON TERMINALS RING TERMINAL BRAKE ELECTOVALVE WATER 86359770 - CS20 SCRUBBER...
  • Page 77 Wiring Diagram 5 REFERENZ THROTTLE REFERENZ HIGH THROTTLE 86359770 - CS20 SCRUBBER...
  • Page 78 HORN BUTTON MICROSWITCH-COVER PROGRAM SWITCH CHARGER S-UP / S-DOWN MICROSWITCH HOURS METER V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE V-UP & V-DOWN DIODE-MOTOR M4 X1-X2-X3-X4-X5-X12 TERMINAL BLOCK ** X6-X7-X8-X11 DEUTSCH CONNECTOR * X9-X10-X13 PACKARD CONNECTOR FASTON TERMINALS RING TERMINAL BRAKE ELECTOVALVE WATER 86359770 - CS20 SCRUBBER...
  • Page 79 Wiring Diagram 6 86359770 - CS20 SCRUBBER...
  • Page 80 HORN BUTTON MICROSWITCH-COVER PROGRAM SWITCH CHARGER S-UP / S-DOWN MICROSWITCH HOURS METER V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE V-UP & V-DOWN DIODE-MOTOR M4 X1-X2-X3-X4-X5-X12 TERMINAL BLOCK ** X6-X7-X8-X11 DEUTSCH CONNECTOR * X9-X10-X13 PACKARD CONNECTOR FASTON TERMINALS RING TERMINAL BRAKE ELECTOVALVE WATER 86359770 - CS20 SCRUBBER...
  • Page 81 Wiring Diagram 7 86359770 - CS20 SCRUBBER...
  • Page 82 HORN BUTTON MICROSWITCH-COVER PROGRAM SWITCH CHARGER S-UP / S-DOWN MICROSWITCH HOURS METER V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE V-UP & V-DOWN DIODE-MOTOR M4 X1-X2-X3-X4-X5-X12 TERMINAL BLOCK ** X6-X7-X8-X11 DEUTSCH CONNECTOR * X9-X10-X13 PACKARD CONNECTOR FASTON TERMINALS RING TERMINAL BRAKE ELECTOVALVE WATER 86359770 - CS20 SCRUBBER...
  • Page 83 Wiring Diagram 8 86359770 - CS20 SCRUBBER...
  • Page 84 HORN BUTTON MICROSWITCH-COVER PROGRAM SWITCH CHARGER S-UP / S-DOWN MICROSWITCH HOURS METER V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE V-UP & V-DOWN DIODE-MOTOR M4 X1-X2-X3-X4-X5-X12 TERMINAL BLOCK ** X6-X7-X8-X11 DEUTSCH CONNECTOR * X9-X10-X13 PACKARD CONNECTOR FASTON TERMINALS RING TERMINAL BRAKE ELECTOVALVE WATER 86359770 - CS20 SCRUBBER...

  • Page 85: Suggested Spare Parts

    86007170 SWITCH, KEY 2 POSITION 86302360 DRAIN HOSE 86199840 FLOAT SCREEN CAGE ASSY (SLIP) 86331980 BRUSH SET, 8.633-197.0 SCRUB MTR 86135310 BRUSH SET, 24/36V VAC, WINDSOR 86007970 STRAINER, 3/8 IN. NPT 60 MESH 86312920 GASKET, VAC MOTOR 86326200 GASKET, VACUUM INTAKE 86327850 GASKET, REC TANK 68”...

  • Page 86: Serial Numbers

    Serial Numbers REF. MODEL: SERIAL # 10061250002172, 10061300000029, 10061330002350, 10061340000041, 10061370000354, 10061380000387 10061250002240,10061300000046, 10061330002430, 10061340000050, 10061370000378, 10061380000447 10061300000037, 10061320000183, 10061340000046, 10061360000046 10061250002391, 10061300000073, 10061330002581, 10061340000507, 10061370000477, 10061380000504 10061250002491, 10061330002672, 10061370000568, 10061380000553, 10061300000087, 10061340000078 86359770 - CS20 SCRUBBER...

This manual is also suitable for:

Csc20Csc22spCsx20Csxc20Cs22spChario2 iscrub 20 csc22sp ... Show all

Table of Contents
