Connectors and Indicator LEDs

The ITI-5232E provides four 8-pin Modular Jack (MJ) connectors for connection with
your network. Each of these four ports supports either Twisted Pair Category 3 or 5 cable
for 10Mb/s connections, or Category 5 cable for 100Mb/sec operation.

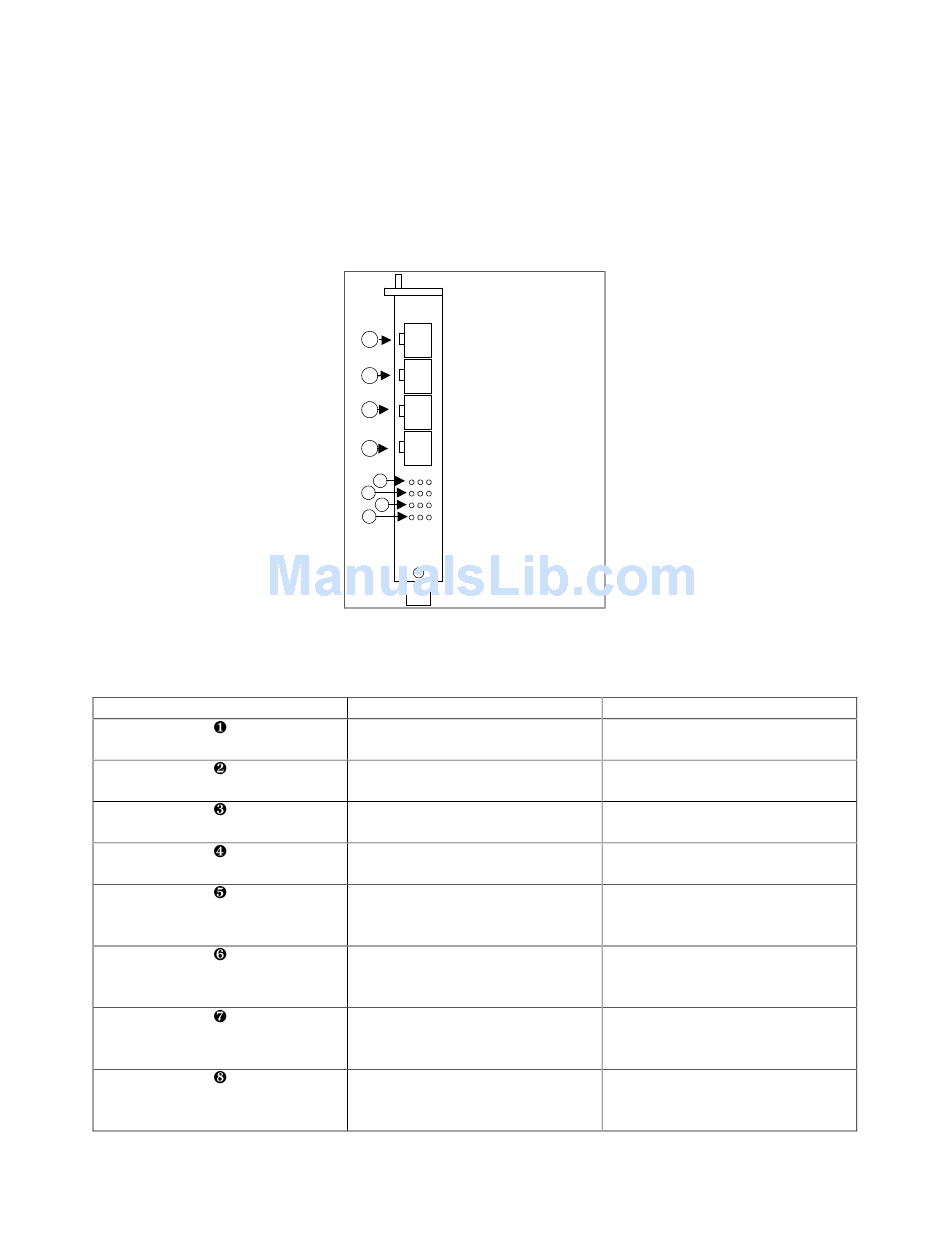

Figure 1 shows the ITI-5232E Adapter connectors and indicator LEDs.

Figure 1 Connectors and Indicator LEDs

Table 2 describes the ITI-5232E Four Port Fast Ethernet Adapter connectors and indicator LEDs.
Reference

Table 2 Connections and Indicator LEDs

1
Port 0
2
Port 1
3
Port 2
4
Port 3
5
Port 0
6
Port 1
7
Port 2
8
Port 3
Component
Channel 0 8-pin MJ Connector
Channel 1 8-pin MJ Connector
Channel 2 8-pin MJ Connector
Channel 3 8-pin MJ Connector
Channel 0 Indicator LEDs
Channel 1 Indicator LEDs
Channel 2 Indicator LEDs
Channel 3 Indicator LEDs
Description
10/100 Mb/s twisted-pair network
connector for Channel 0
10/100 Mb/s twisted-pair network
connector for Channel 1
10/100 Mb/s twisted-pair network
connector for Channel 2
10/100 Mb/s twisted-pair network
connector for Channel 3
100 Mb/s (Left LED)
Activity (Center LED)
Link (Right LED)
100 Mb/s (Left LED)
Activity (Center LED)
Link (Right LED)
100 Mb/s (Left LED)
Activity (Center LED)
Link (Right LED)
100 Mb/s (Left LED)
Activity (Center LED)
Link (Right LED)
8
