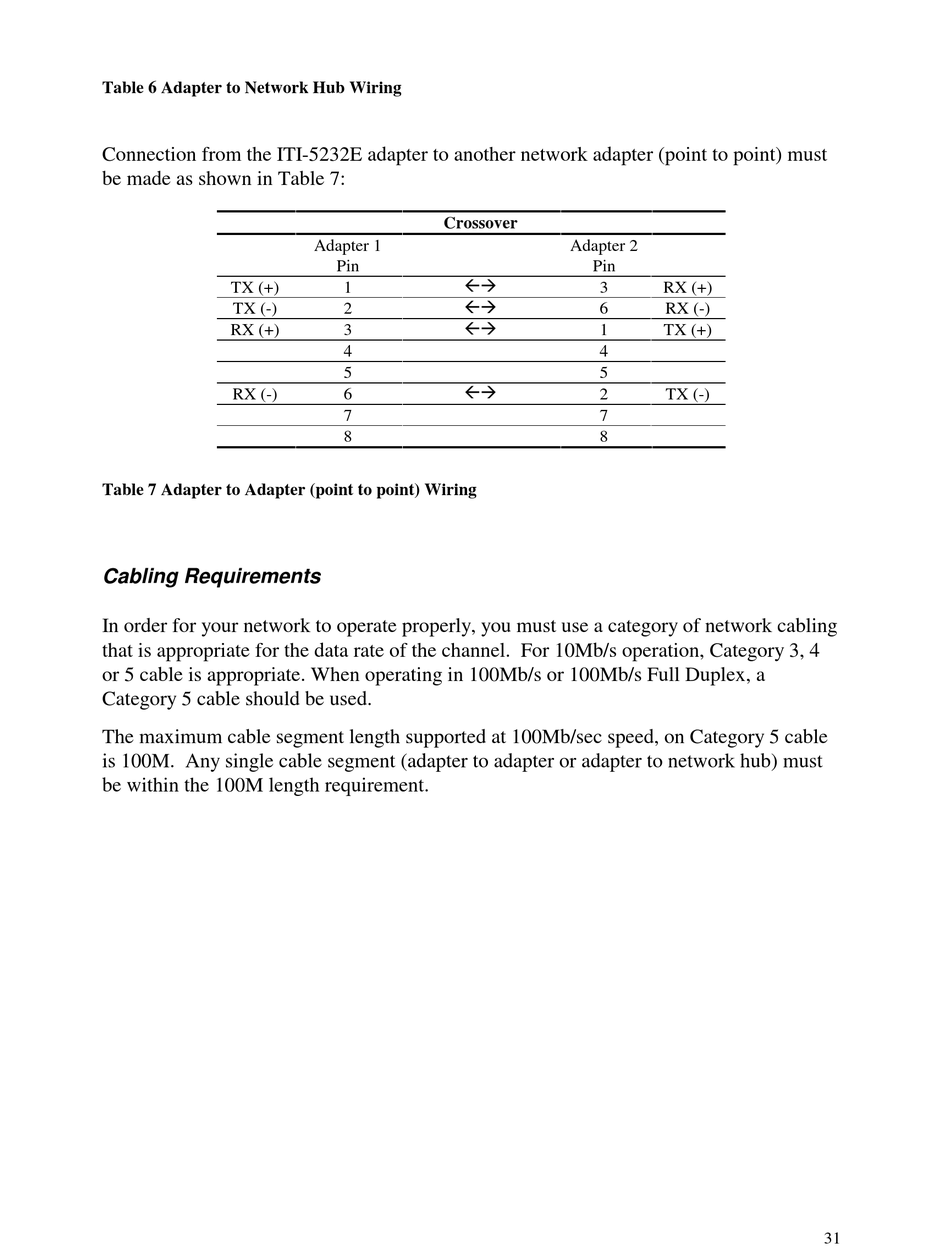

Table 6 Adapter to Network Hub Wiring

Connection from the ITI-5232E adapter to another network adapter (point to point) must
be made as shown in Table 7:
TX (+)
TX (-)
RX (+)
RX (-)

Table 7 Adapter to Adapter (point to point) Wiring

Cabling Requirements

In order for your network to operate properly, you must use a category of network cabling
that is appropriate for the data rate of the channel. For 10Mb/s operation, Category 3, 4
or 5 cable is appropriate. When operating in 100Mb/s or 100Mb/s Full Duplex, a
Category 5 cable should be used.
The maximum cable segment length supported at 100Mb/sec speed, on Category 5 cable
is 100M. Any single cable segment (adapter to adapter or adapter to network hub) must
be within the 100M length requirement.
Crossover
Adapter 1
Pin
ÇÈ
1
ÇÈ
2
ÇÈ
3
4
5
ÇÈ
6
7
8
Adapter 2
Pin
3 RX (+)
6 RX (-)
1 TX (+)
4
5
2 TX (-)
7
8
31
