Appendix B

Connector Pin Assignments

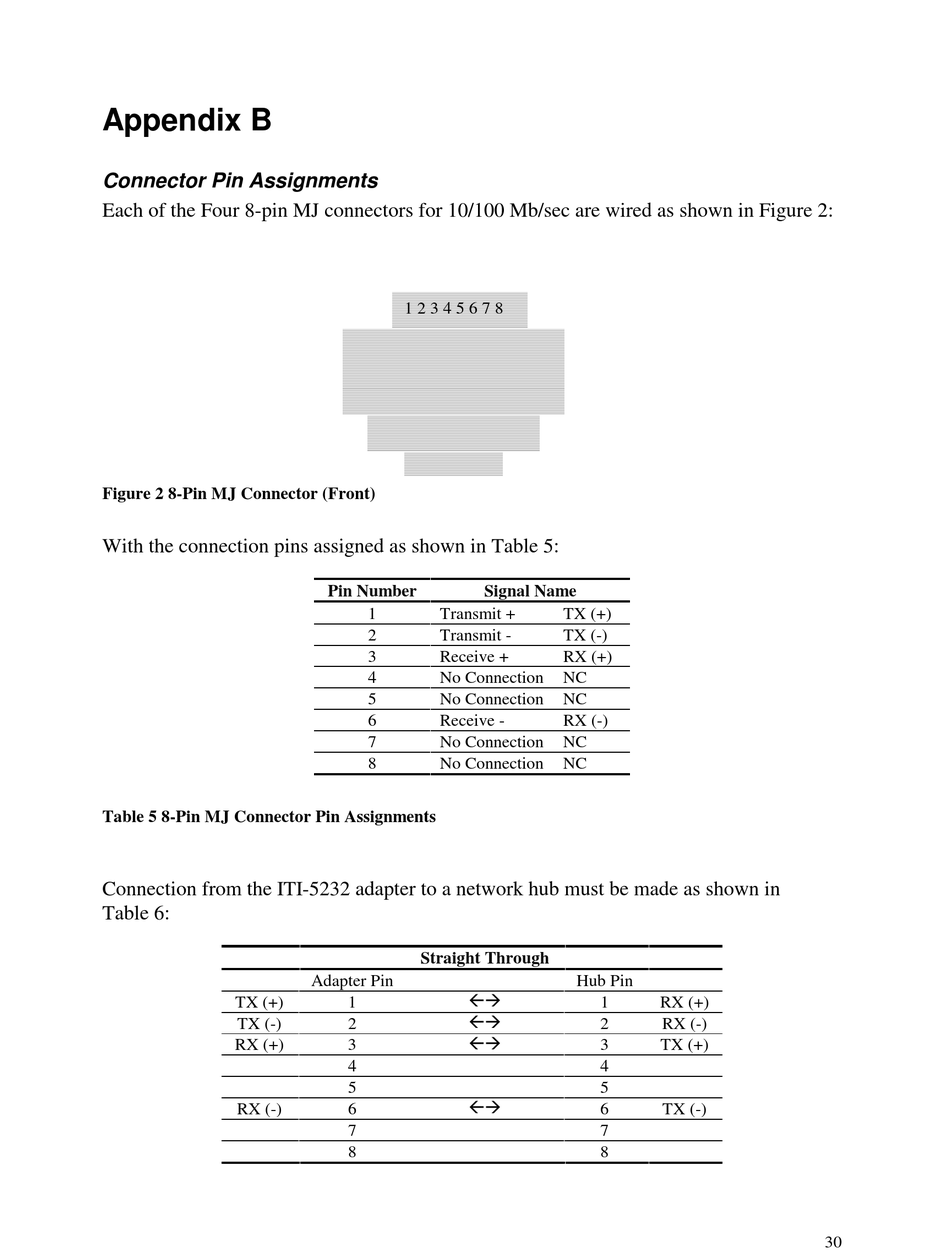

Each of the Four 8-pin MJ connectors for 10/100 Mb/sec are wired as shown in Figure 2:

Figure 2 8-Pin MJ Connector (Front)

With the connection pins assigned as shown in Table 5:

Table 5 8-Pin MJ Connector Pin Assignments

Connection from the ITI-5232 adapter to a network hub must be made as shown in
Table 6:
TX (+)
TX (-)
RX (+)
RX (-)
1 2 3 4 5 6 7 8
Pin Number Signal Name
1 Transmit +
2 Transmit -
3 Receive +
4 No Connection
5 No Connection
6 Receive -
7 No Connection
8 No Connection
Straight Through
Adapter Pin
ÇÈ
1
ÇÈ
2
ÇÈ
3
4
5
ÇÈ
6
7
8
TX (+)
TX (-)
RX (+)
NC
NC
RX (-)
NC
NC
Hub Pin
1 RX (+)
2 RX (-)
3 TX (+)
4
5
6 TX (-)
7
8
