Page 1: Gigabit Ethernet

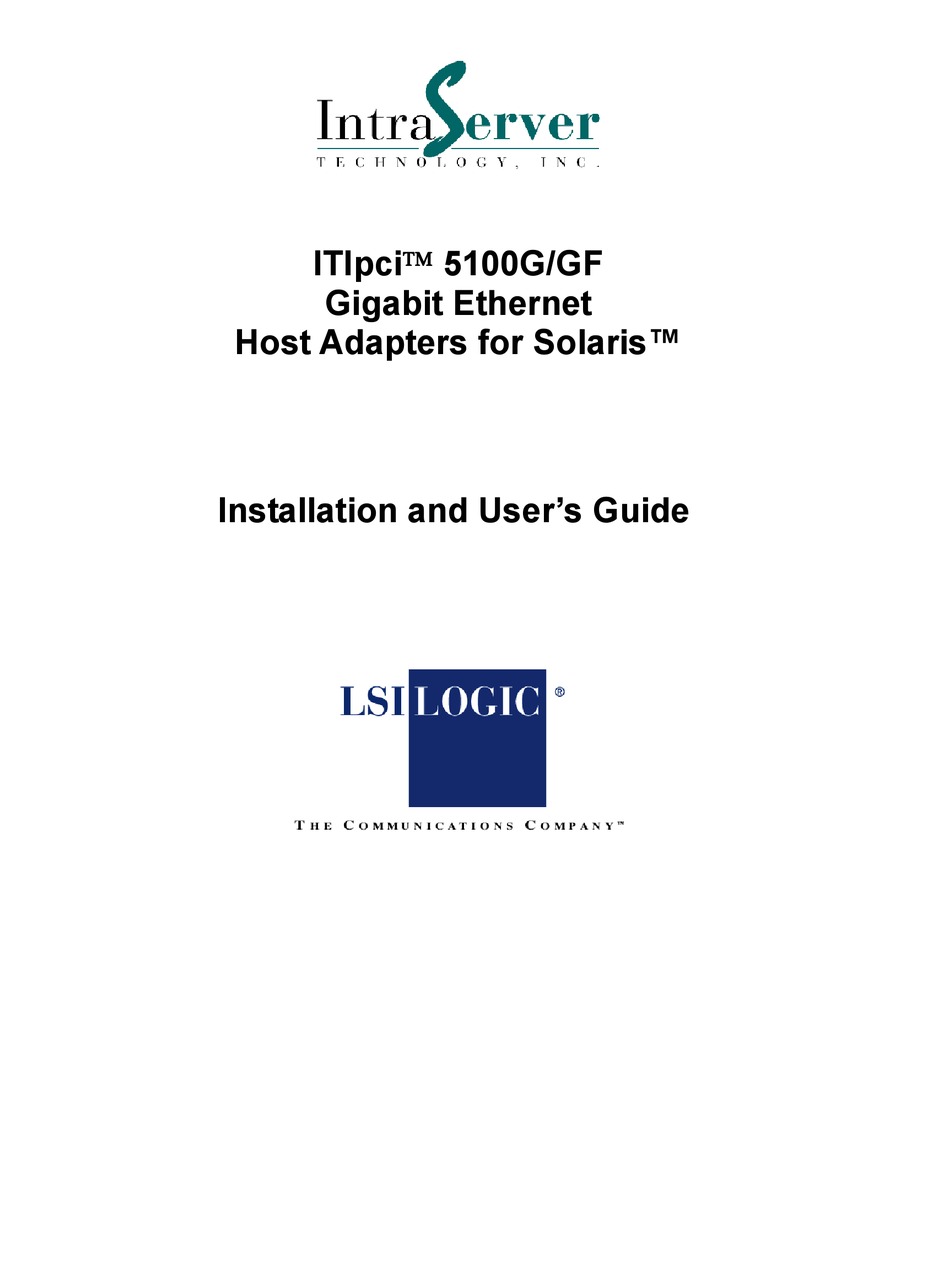

ITIpci 5100G/GF Gigabit Ethernet Host Adapters for Solaris™ Installation and User’s Guide... - Page 2 Order Number 90-100300 Version 1.1 LSI Logic Corporation, Copyright 2000 Version 1.1 Second Printing, December, 2000 Added VLAN support Version 1.0 First Printing, August, 2000 The information in this document is subject to change without notice and should not be construed as a commitment by LSI Logic Corporation. LSI Logic Corporation assumes no responsibility for any errors that may appear in this document.
- Page 3 The Reader’s Comment form at the end of this document requests your critical evaluation to assist in preparing future documentation. The LSI Logic logo design is a registered trademark of LSI Logic Corporation. The following are trademarks of IntraServer Technology, Inc.: ITIpci and the IntraServer logo.
- Page 4 FCC Class B Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 5: Fcc Declaration Of Conformity
FCC Declaration of Conformity The IntraServer Technology, Inc. ITIpci Gigabit Ethernet adapters, model numbers 5100G and 5100GF comply with the requirements of FCC part 15, class B as defined under paragraph 2.909 of these rules. This declaration covers product identified with ITI 5100G and 5100GF on the product label. -
Page 6: Table Of Contents
... 8 REFACE How This Book Is Organized... 8 UNIX Commands... 9 Typographic Conventions... 9 Shell Prompts... 10 Contacting IntraServer Technology ... 10 ABOUT THE ITI-5100G/GF ADAPTER... 11 ... 13 EATURES ITI-5100G and GF Models ... 13 ITI-5100G Model... 13 ITI-5100GF Model ... - Page 7 ... 31 EGOTIATION TCP/IP P NCREASING ERFORMANCE AVING RIVER ARAMETERS OPTIONAL CONFIGURATION ... 33 VLAN ... 35 Overview... 35 Configuring VLANs ... 37 ... 40 UMBO RAMES UPPORT Overview... 40 Configuring Jumbo Frames Support ... 40 ... 41 OMING Overview... 41 Configuring Dual Homing...
-
Page 8: Introduction
_________________________ Preface This guide describes how to install and use the following IntraServer Technology ITI-5100G/GF adapters in the Solaris operating environment: •= PCI (Peripheral Component Interconnect) ITI-5100G Gigabit Ethernet for Copper adapter •= PCI (Peripheral Component Interconnect) ITI-5100GF Gigabit Ethernet for Fiber adapter The procedures in this guide assume that you are a system or network administrator experienced in installing similar hardware in the Solaris environment. -
Page 9: Unix Commands
UNIX Commands This document may not include all necessary software commands or procedures. Instead, it may name software tasks and refer you to operating system documentation or the handbook that was shipped with your workstation. You might need to use supplemental documentation for the following types of information: •= Shutting down the system... -
Page 10: Shell Prompts
C shell superuser Bourne shell and Korn shell Bourne shell and Korn shell superuser # Table 2: Shell Prompts Contacting IntraServer Technology Use the following information to access IntraServer Technology support and sales. •= URL for IntraServer Technology Online: http://www.intraserver.com This website includes product information, software updates and release notes. -
Page 11: About The Iti-5100G/Gf Adapter
________________________1 About the ITI-5100G/GF Adapter Figure 1: IntraServer Technology ITI-5100GF Gigibit Ethernet Fiber Interface Adapter The ITI-5100GF adapter connects your PCI compliant server or workstation to a Gigabit Ethernet network. The adapter incorporates a technology that transfers data at a rate of one gigabit per second, 10 times the rate of a Fast Ethernet adapter. -
Page 12: Figure 2: Intraserver Technology Iti-5100G Gigibit Ethernet Copper 10/100/100Base-T Interface Adapter
Figure 2: IntraServer Technology ITI-5100G Gigibit Ethernet Copper 10/100/100Base-T Interface Adapter The ITI-5100G adapter connects your PCI compliant server or workstation to a Gigabit Ethernet network. The adapter incorporates a technology that transfers data at a rate of one gigabit per second, 10 times the rate of a Fast Ethernet adapter. -
Page 13: Features
Features Following is a list of the Gigabit Ethernet PCI adapter features: ITI-5100G and GF Models •= Full-duplex Gigabit Ethernet interface (IEEE P802.3-1999) •= Jumbo Frame support (optional 9,000 byte frames for server- to-server traffic) •= Standard Ethernet frame size (up to 1518 bytes) •= Dual Homing for automatic failover if a port, switch, or adapter is down... -
Page 14: Vlans Support
bytes), frame format, and compliance with the following standards and protocols: •= Logical Link Control (IEEE 802.2) •= Flow Control (IEEE 802.3x) •= SNMP •= Gigabit Ethernet (IEEE P802.3z) VLANs Support Virtual Local Area Networks ( VLANs ) are commonly used to split up groups of network users into manageable broadcast domains, to create logical segmentation of workgroups, and to enforce security policies among logical segments. -
Page 15: Dual Dma Channels
interrupt for multiple, back-to-back incoming packets, preserving host CPU cycles. Dual DMA Channels The PCI interface on the ITI-5100G/GF adapter contains two independent DMA channels for simultaneous read and write operations. ASIC with Embedded RISC Processor The core control for the ITI-5100G/GF adapter resides in a tightly integrated, high-performance ASIC. -
Page 16: Table 3: Iti-5100Gf Led Status Indicators
Good link. No link; possible bad cable, bad connector, missing or improperly installed driver software, or configuration mismatch. Table 3: ITI-5100GF LED Status Indicators LSI Logic Corporation Page 16 of 56... -
Page 17: Figure 4: Iti-5100G Adapter Faceplate
Figure 4: ITI-5100G adapter faceplate The faceplate of the ITI-5100G adapter has one 10/100/1000Base-T twisted pair copper (CAT-5) connector for connecting the adapter to a Gigabit Ethernet segment. The adapter will also operate in an existing 10/100 Ethernet environment. ITI-5100G Port LED Activity State Blinking Data detected on the port. -
Page 18: Installing The Iti-5100G/Gf Adapter
________________________2 Installing the ITI-5100G/GF The following instructions apply to installing the ITI-5100G/GF adapter in most servers. Refer to the manuals that were supplied with your server for details about performing these tasks on your particular system. System Requirements Before installing the ITI-5100G/GF adapter, make sure your system meets the requirements listed in the following table: Hardware and Software Requirements Category... -
Page 19: Safety Precautions
Check the adapter for visible signs of damage, particularly on the card's edge connector. Never attempt to install any damaged adapter. If the adapter is damaged, report it to your IntraServer Technology Customer Support Representative. For more information, see Contacting IntraServer Technology. -
Page 20: Pci Adapter Installation
PCI Adapter Installation To install a PCI ITI-5100G/GF adapter in your system, perform the following procedure. Observe all precautions and pre-installation instructions in the Safety Precautions section. Before installing the adapter, ensure the system power is OFF , and proper electrical grounding procedures have been followed. Remove the server cover, and select any empty PCI slot. -
Page 21: Connecting The Network Cables
Connecting the Network Cables 5100GF Cable Connection The 5100GF adapter has one SC-type connector used for attaching the server to a Gigabit Ethernet fiber-optic segment. The port is auto-negotiating and supports full-duplex operation. Prepare an appropriate cable. The following table lists cable characteristics required for connecting to 1000Base-SX ports: 1000BASE-SX Link Characteristics Description... -
Page 22: 5100G Cable Connection
5100G Cable Connection The 5100G adapter has one RJ-45 connector used for attaching the server to an Ethernet twisted pair copper segment. The port is auto-negotiating and supports full-duplex operation. Prepare an appropriate cable. The following table lists cable characteristics required for connecting to 10/100/100 Base-T ports: 10/100/1000BASE-T Cable Specifications Port Type... -
Page 23: The Iti-5100G/Gf Driver Software
To install the adapter software for Solaris, perform the following procedure: Become superuser (root). Note the revision level of the Software Distribution Media included with your IntraServer Technology adapter. The revision level is stamped on the Software Distribution Media label and is used in the commands below. -
Page 24: Troubleshooting: If The Driver Fails To Attach
pkgadd At the prompt, type the command: # pkgadd -d . The screen displays a list of packages available for installation: The following packages are available: 1 ITIalt IntraServer/LSI Logic 32/64-bit Gigabit Ethernet Adapter (sparc)Kit Version x.x Select package(s) you wish to process (or `all' to process all packages). -
Page 25: Configuring The Host Files
# sync # sync # halt Then, at the ok prompt, use the following command to list the system devices: ok show-devs ITI-5100G/GF adapter output will be displayed. Sample PCI examples are shown on the next page. For PCI systems, " ethernet@1 " identifies the PCI ITI-5100G/GF adapter: /SUNW,ffb@1e,0 /SUNW,UltraSPARC-II@0,0... - Page 26 Note: If any adapter card is moved from one slot to another, the instance values in the /etc/path_to_inst Correct the instance values before making any adapter configuration changes. See your Solaris manuals for details on setting instance values. •= Each adapter must be assigned a host name and an IP address.
-
Page 27: Configuring Driver Parameters With Ndd
iti # cat /etc/hostname.alt0 iti-1 iti # cat /etc/hostname.alt1 iti-2 iti # cat /etc/hostname.alt2 iti-3 iti # cat /etc/hostname.alt3 iti-4 For each host name, enter the appropriate IP address in the file. /etc/hosts Reboot the system. If you make changes and put the system into service before rebooting, you may experience configuration problems. - Page 28 recv_coal_ticks (read and write) nic_tracing (read and write) link_negotiation (read and write) dump_nic (read and write) jumbo (read and write) vlan? (read and write) vlan_tag (read and write) vlan_tag_id (read and write) redund? (read and write) redund (read and write) fdr_filter (read and write) rx_flow_control (read and write) tx_flow_control (read and write)
- Page 29 The following table describes the driver parameters available through ndd . Adapter Driver Parameters Parameter Meaning Minimum number of 1 sec ticks between statistics updates. 0 (off) is the minimum, and 100,000 is the stat_ticks default. There is no maximum. Number of sends before a send complete event is set.
-
Page 30: Checking Parameter Settings
Adapter Driver Parameters Parameter Meaning If link negotiation is on, a value of 1 allows the adapter to negotiate 802.3x transmit flow control with the device at the other end of the link. If 802.3x flow control is supported by the other tx_flow_control device, transmit pause packets will be respected. -
Page 31: Link Negotiation
Note: Any changes made with will be lost when you reboot the system. To make configuration changes survive reboot, store driver settings in the file (see Saving Driver Parameters Beyond /etc/rc2.d/S99itialt Reboot). Link Negotiation The default configuration for link negotiation of the Gigabit Ethernet link is auto . -
Page 32: Saving Driver Parameters Beyond Reboot
Saving Driver Parameters Beyond Reboot Any parameter changes made using ndd will be lost the next time your system is rebooted. To keep changes through reboot, parameter settings must be placed in a start-up file with the following filename: /etc/rc2.d/S99itialt Example: If you need to adjust adapter 2 to turn Link Negotiation off and increase the TCP/IP values, you could place the following lines in the /etc/rc2.d/S99itialt start-up file:... -
Page 33: Optional Configuration
________________________4 Optional Configuration Your IntraServer Technology ITI-5100G/GF adapter can be configured to support the following options: •= VLANs: Virtual Local Area Networks (VLANs) are commonly used to split up groups of network users into manageable broadcast domains, to create logical segmentation of workgroups, and to enforce security policies among each logical segment. - Page 34 Note: If you modify any of the optional configuration parameters (VLANs, Jumbo Frame, or Dual Homing), you must reboot the system before the changes will take effect. If you make changes and do not reboot, you may experience configuration problems. LSI Logic Corporation Page 34 of 56...
-
Page 35: Vlans
VLANs VLANs allow you to split your physical LAN into logical subparts, providing an essential tool for increasing the efficiency and flexibility of your network. Overview Each defined VLAN behaves as its own separate network, with its traffic and broadcasts isolated from the other VLANs to increase bandwidth efficiency within each logical group. -
Page 36: Table 9: Example Vlan Network Topology
In the example network shown in Figure 6, the physical LAN consists of a switch, two servers, and five clients. The LAN is logically organized into three different VLANs, each representing a different IP subnet. The features of this network are described in the following table. Example VLAN Network Topology Component Description An IP subnet consisting of the Main Server, PC #3, and PC #5. -
Page 37: Configuring Vlans
VLAN tagging is only required to be enabled on switch ports that create trunk links to other VLAN capable switches, or on ports connected to tag-capable end-stations, such as servers or workstations with ITI5100G/GF adapters. Configuring VLANs By default, Alteon WebSystems switches have a single VLAN configured for every port, which groups all ports into the same broadcast domain, just as if there were no VLANs at all. -
Page 38: Table 10: Creating The /Etc/Hostname.alt
/etc/hostname /etc/hostname .alt6300 .alt6301 Table 10: Creating the /etc/hostname.alt<num> files Place the appropriate adapter host name into the file(s). /etc/hostname.alt The /etc/hostname.alt <num> adapter host name. The host name should be different from the host name of any other interface. For example, /etc/hostname.alt0 and /etc/hostname.alt100 cannot share the same host name.Files -
Page 39: Table 11: Creating The /Etc/Vlan.alt
Up to 64 First Adapter Second Adapter VLANs /etc/vlan /etc/vlan .alt0 .alt1 /etc/vlan /etc/vlan .alt100 .alt101 /etc/vlan /etc/vlan .alt200 .alt201 /etc/vlan /etc/vlan .alt6300 .alt6301 Table 11: Creating the /etc/vlan.alt<num> files Place the appropriate VLAN ID tag into the Each VLAN must be assigned a unique identification number. Even though the maximum number of VLANs that can be configured on each adapter is 64, any particular VLAN can be assigned an identification number between 1 and 4094.Files -
Page 40: Jumbo Frames Support
# reboot -- -r Verify the configuration changes. Enter the following command and verify that the appropriate VLANs are present: # ifconfig -a Jumbo Frames Support ITI-5100G/GF adapters support Jumbo Frames--frames of up to 9,000 bytes that are sent between servers that have ITI-5100G/GF adapters and switches that support Jumbo Frames. -
Page 41: Dual Homing
Note: If you modify parameters and put the system into service before rebooting, you may experience configuration problems. Perform this command to reboot the system: # reboot Verify the configuration changes. Enter the following command and verify that the MTU size is set to 9000: # ifconfig -a Dual Homing When two ITI-5100G/GF adapters are installed in the same server, they can... -
Page 42: Configuring Dual Homing
Configuring Dual Homing To configure Dual Homing in a system with two adapters, where /etc/hostname.alt0 is the primary adapter, perform the following procedure: Note: Do not configure an /etc/hostname.alt<num> entry for the redundant adapter. Also, do not configure Jumbo Frame support files for the redundant adapter. - Page 43 Changes to the optional configuration parameters (Jumbo Frame, or Dual Homing) do not take effect until you reboot the system. If you will be making changes to the other optional parameters during your configuration session, you should wait to reboot until those changes are complete. Note: If you modify parameters and put the system into service before rebooting, you may experience configuration problems.
-
Page 44: Appendices
________________________5 Appendix A 1000BASE-SX Link Characteristics Description 62.5 Micron 50 Micron Shortwave (850 nanometer multimode fiber) 2 to 550 meters Operating Range 2 to 260 meters (in compliance with IEEE 802.3-1998) 10/100/1000BASE-T Cable Specifications Port Type Connector 10Base-T RJ-45 Cat. 3, 4 or 5 UTP 100/1000Base-T RJ-45 Cat. -
Page 45: Power Requirements
Power Requirements Specification Measurement PCI operating voltage +5 V ± 5% 7.5 Watts PCI power consumption 1.5A @ +5VDC Environmental Specifications Operating Condition Specification 0° to 55° C (+32 to +131 Temperature 5 to 85% non-condensing Relative humidity (40° C, 16 hour dwells at extremes) Altitude Up to 10,000 feet... -
Page 46: Ppendix B
Appendix B Ethernet Connector The 8-pin RJ-45 connector for 10/100/1000 Mb/sec Ethernet is wired as shown: 87654321 Figure 9: 8-Pin RJ-45 Connector (Front) With the connection pins assigned as shown: Contact 10Base-T Signal 100Base-TX Signal 1000Base-T Signal TD+ (Transmit TD+ (Transmit Data) Data) TD- (Transmit Data) TD- (Transmit Data) BI_DA- (Bidi Data) RD+ (Receive Data) RD+ (Receive Data) BI_DB+ (Bidi Data) -
Page 47: Ppendix C
Appendix C Glossary of Terms The following terms are used throughout this guide. Term Meaning 10/100/1000 10, 100 and 1000Mbps on the same port. 1000BaseT Physical layer spec. for 1000Mbps Ethernet over various wiring specs. 100BaseT Physical layer spec. for 100Mbps Ethernet over various wiring specs. -
Page 48: Table 13: Glossary Of Terms
Packet Unit of information packaged in a predetermined structure for communications using Ethernet protocols. Peripheral Component Interconnect RJ-45 The 8-conductor version of an RJ- 11 (telephone, but wider). Router Component which receives and transmits and forwards packets to their destinations via the shortest route possible. -
Page 49: List Of Figures
List of Figures Figure 1: IntraServer Technology ITI-5100GF Gigibit Ethernet Fiber Interface Adapter... 11 Figure 2: IntraServer Technology ITI-5100G Gigibit Ethernet Copper 10/100/100Base-T Interface Adapter... 12 Figure 3: ITI-5100GF adapter faceplate... 15 Figure 4: ITI-5100G adapter faceplate ... 17 Figure 5: Connecting the network cable to the 5100GF adapter ... 21 Figure 6: Servers Supporting Multiple VLANs... -
Page 50: Ppendix D
(“EULA”) is a legal agreement between you (either an individual or a single entity) licensee of the IntraServer ITIpci SCSI Software being licensed by IntraServer Technology, Inc. (“ITI”) for the software (“SOFTWARE PRODUCT” or “SOFTWARE”) provided with the ITIpci Host Adapter (“Host Adapter”). You may not use the Software except in conjunction with the Host Adapter. - Page 51 Software: You may install and use one copy of the SOFTWARE PRODUCT on a single computer (the “Computer”). Network Services: SOFTWARE functionality that enables the Computer to act as a network server, any number of computers may access or otherwise utilize the basic network services of the server.
- Page 52 2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS: Limitation Reverse Engineering, Modifications and Derivatives: You may not reverse engineer, decompile, disassemble, or modify, in whole or in part, the SOFTWARE PRODUCT, or create a derivative work using the SOFTWARE PRODUCT except and only to the extent that such activity is expressly permitted by applicable law notwithstanding this limitation.
-
Page 53: Product Support
Technical Data and Computer Software clause DFARS 252.227-7013 or subparagraphs (c)(1) and (2) of the Commercial Computer Software – Restricted Rights at 48 CFR 52.227-19 as applicable. The Manufacturer is IntraServer Technology, Inc., Seven October Hill Road, Holliston, MA, USA 01746. 7. EXPORT LAWS AND REGULATIONS: The end user agrees to comply with the export laws and regulations of the United States and other governing jurisdictions. -
Page 54: Product Warranty
Product Warranty LIMITED SOFTWARE WARRANTY IntraServer Technology, Inc. (“ITI”) warrants to only the original licensee that the Software, when properly installed in conjunction with the Host Adapter, will perform substantially in accordance with ITI’s specifications contained in ITI’s documentation provided with the Software (“ITI’s Documentation”) for a period of 60 days from the date of the original... - Page 55 return shipping date of the repaired or replaced product, or (ii) the period of time remaining on the original three year warranty. Before returning any product, contact ITI’s Technical Support (for telephone numbers and addresses, see the Technical Support section of this document). If ITI’s Technical Support verifies that the product is defective, the Return Authorization Department will issue an RMA number to place on the package containing the Host Adapter.
-
Page 56: Reader' Comment
Reader’s Comments Mail to: IntraServer Technology, Inc. Seven October Hill Road Holliston, MA 01746 Your comments and suggestions help us improve the quality of our publications. I rate this manual on: Accuracy (product works as manual says) Completeness (enough information)
