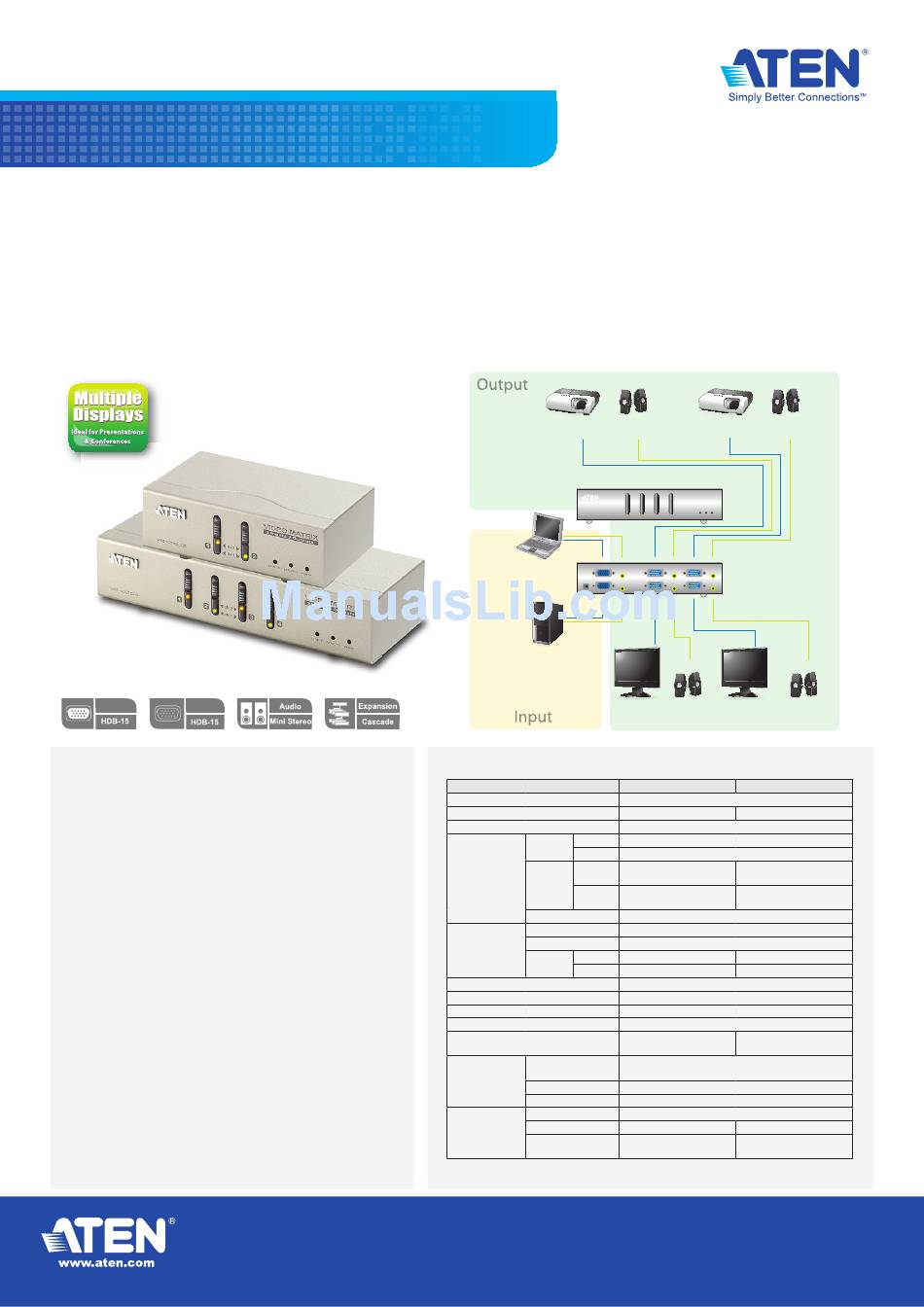

ATEN VS0202 Specifications

VS0202/VS0204
Video Matrix Switch + Audio
The VS0202 / VS0204 Video Matrix Switch combines the capabilities of a video switch and signal
splitter. It duplicates and enhances the video and audio signals from up to two input sources
(computers), and routes them to two / four output devices (monitors, projectors, etc.).
The VS0202 / VS0204 provides fast, flexible, reliable solutions for installations that require audio-visual
information from multiple sources to be delivered to multiple destinations – such as:
• Broadcasting information to public locations (news, airline and train schedules and arrival/departure
information).
• Sporting events
• Theater and lecture overflow rooms
• Classroom and company training facilities
Video Out Video In
Features
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
• Each of the 2/4 video outs can toggle between Source 1
and Source 2 using front panel pushbuttons
• Expandable – Cascade to ATEN's video splitters to support
hundreds of video displays
• Audio-enabled
• With up to 300 MHz Video Bandwidth
• Duplicate and enhance video signals up to 65 m
• Superior video quality – up to 1920 x 1440
Headquarters
ATEN International Co., Ltd.
3F, No.125, Sec. 2, Datung Rd. Sijhih City, Taipei 221, Taiwan
Tel: 886-2-8692-6789
© Copyright 2009 ATEN® International Co., Ltd. All brand names and trademarks are the registered property of their respective owners.
Setup
Specifications
Display Connections
Computer Connections
Port Selection
Connectors
LEDs
Video
Video Bandwidth
Sync Range
Signal Range
Power Consumption
Environment
Physical
Properties
* The specifications and pictures are subject to change without notice.
Fax: 886-2-8692-6767 E-mail: online@aten.com.tw
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Video Projector Speakers
Notebook
PC
Flat Screen
Speakers
Monitor
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Function VS0202
2
Video 2 x HDB-15 Male (Blue)
Input
Audio 2 x Mini Stereo Jack Female (Green)
2 x HDB-15 Female
Video
(Blue)
Output
2 x Mini Stereo Jack
Audio
Female (Green)
Power
Power
Activity / Source
1 2 (Green)
Input
2 2 (Orange)
Sync Positive/Negative
DC 5.3V ,2.39W
(Max.)
Operating
Temp.
Storage Temp.
Humidity 0–80% RH, Non-condensing
Housing
Weight 0.47 kg
Dimensions 13.00 x 7.50 x 4.50
( L x W x H ) cm
Video Projector Speakers
VS0204
Monitor Speakers
VS0204
2
4
Pushbutton
4 x HDB-15 Female
(Blue)
4 x Mini Stereo Jack
Female (Green)
1 x DC Jack
1 (Blue)
2 (Green)
4 (Green)
4 (Orange)
1920 x 1440 @ 60Hz
300 MHz
65m (210')
DC 5.3V ,3.02W
(Max.)
0–50˚C
-20–60˚C
Metal
0.69 kg
20.00 x 7.50 x 4.50
cm
2009. Version 2.0
