User Manual
VS-0202
VS-0204
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the units and/or
any devices that connect to them.
This package contains:
1 VS-0202 or VS-0204 Video Matrix Switch
1 VGA/Audio Cable (1.8m)
1 Power Adapter
1 Quick Start Guide
1 User Manual
If anything is damaged or missing, contact your dealer.
Copyright 2006 ATEN
©
Manual Part No. PAPE-1268-100G
Printing Date: 03/2006
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights
reserved. All other trademarks are the property of their respective owners.
®
International Co., Ltd.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATEN VS-0202
Summary of Contents for ATEN VS-0202
- Page 1 ® Copyright 2006 ATEN International Co., Ltd. © Manual Part No. PAPE-1268-100G Printing Date: 03/2006 ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners.
- Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause interference to radio...

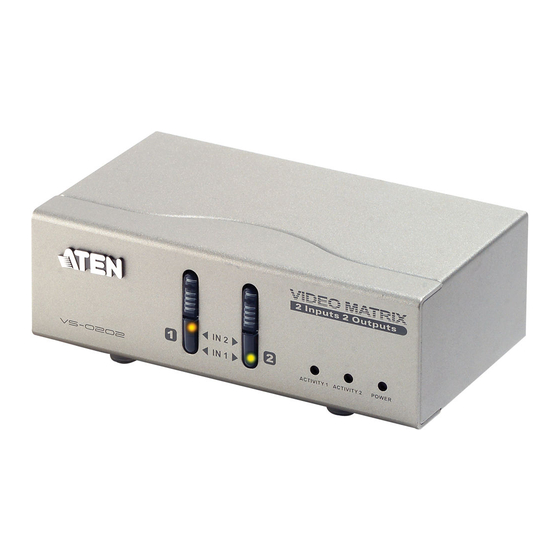

- Page 3 Overview The VS-0202 / VS-0204 Video Matrix Switch combines the capability of a video switcher and signal splitter. It duplicates and enhances the video and audio signals from up to two input sources (computers), and routes them to two / four output devices (monitors, projectors, etc.).
-
Page 4: Installation Requirements
Features Front panel push button switches select the combination of video input to video output Duplicates and enhances video signals up to 65 m (max.) Cascadable Seamless electronic switching No additional hardware or software needed Installation Requirements A VGA, SVGA, XGA or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation for each output port you will be using. -
Page 5: Hardware Overview
Power LED Lights to indicate that the unit is receiving power. * The front panel of the VS-0204 is identical to that of the VS-0202, except that it has two additional Input Select Switches. - 5 -... - Page 6 The video and audio cables from the monitors Ports and speakers plug in here. * The rear panel of the VS-0204 is identical to that of the VS-0202, except that it has two additional Video/Audio OUT ports. - 6 -...
-
Page 7: Hardware Installation
Hardware Installation Before you Begin 1. Make sure that the power to all the devices you will be connecting up has been turned off. 2. Make sure that all devices you will be connecting up are properly grounded. Single Stage Setting up the Video Matrix Switch is simply a matter of plugging in the cables. - Page 8 Single Stage Installation Diagram: Audio cable Video cable Power adapter cable - 8 -...
- Page 9 Cascading To provide video display to additional monitors, up to two / four additional video splitters can be cascaded from the VS-0202 / VS-0204’s video output ports. To cascade a video splitter, use a high density HDB-15 male/ female VGA cable to connect any available video out port on the...
-
Page 10: Operation
Operation The Video Matrix Switch operates according to the following parameters: Each front panel switch corresponds to an output port. Press the switch to select the input source for display on the device connected to the corresponding output port. Pressing a switch toggles between the two input ports. -
Page 11: Specifications
Specifications Model VS-0202 VS-0204 PC - Monitor Connection 2 - 2 2 - 4 Connectors 2 x HDB-15 (f) 4 x HDB-15 (f) 2 x 3.5mm Mini Stereo (f) 4 x 3.5mm Mini Stereo (f) 2 x HDB-15 (m) 2 x HDB-15 (m) 2 x 3.5mm Mini Stereo (f) -
Page 12: Vga Pin Assignments
Vertical Sync Ground Ground Getting Help If you need to contact ATEN technical support with a problem, visit our website at www.aten.com. Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION.
