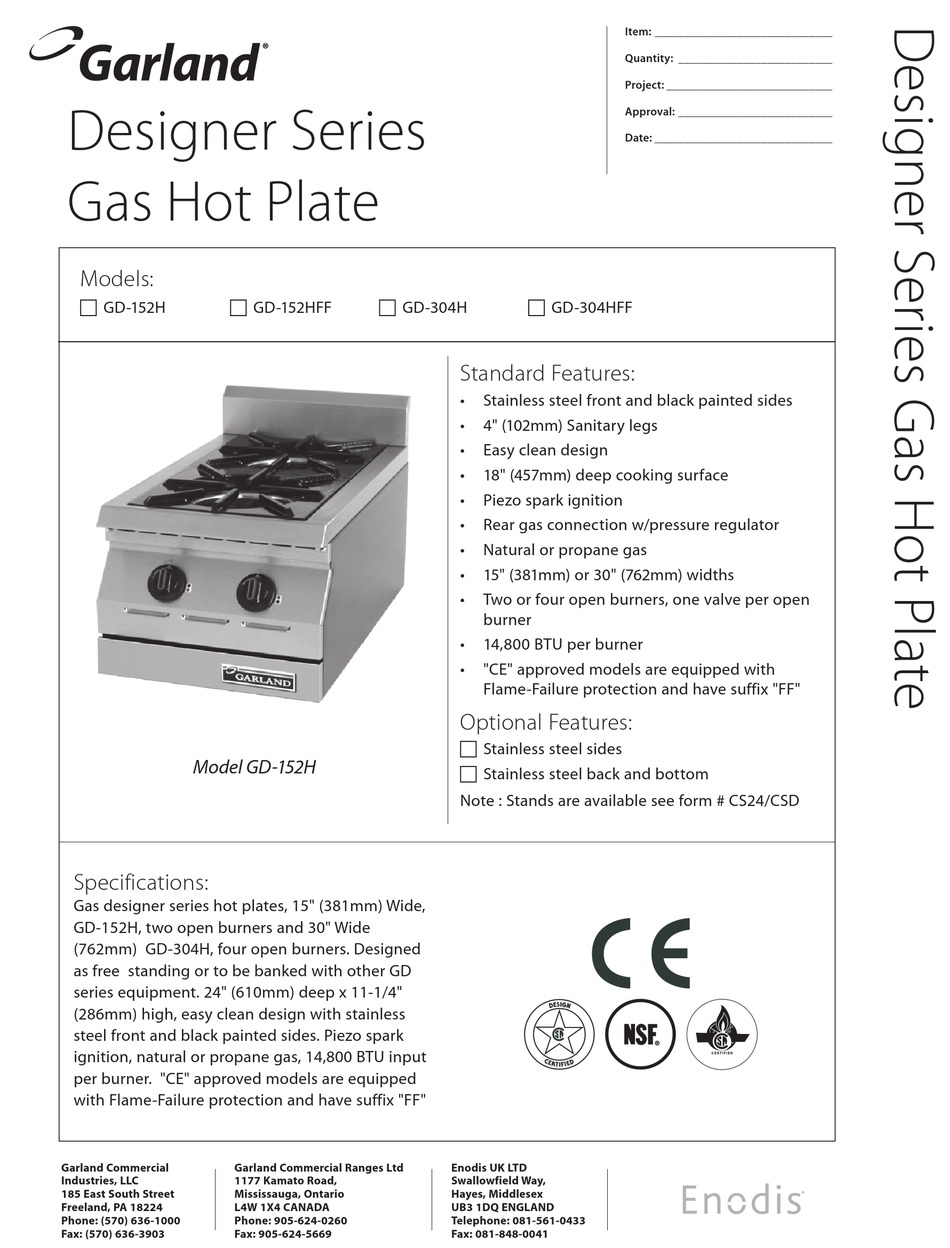

Garland Enodis GD-152H Specifications

Designer Series
Gas Hot Plate
Models:
 GD-152H  GD-152HFF
Model GD-152H

Specifications:

Gas designer series hot plates, 15" (381mm) Wide,
GD-152H, two open burners and 30" Wide
(762mm) GD-304H, four open burners. Designed
as free standing or to be banked with other GD
series equipment. 24" (610mm) deep x 11-1/4"
(286mm) high, easy clean design with stainless
steel front and black painted sides. Piezo spark
ignition, natural or propane gas, 14,800 BTU input
per burner. "CE" approved models are equipped
with Flame-Failure protection and have suffix "FF"
Garland Commercial Garland Commercial Ranges Ltd
Industries, LLC 1177 Kamato Road,
185 East South Street Mississauga, Ontario
Freeland, PA 18224 L4W 1X4 CANADA
Phone: (570) 636-1000 Phone: 905-624-0260
Fax: (570) 636-3903 Fax: 905-624-5669
 GD-304H  GD-304HFF

Standard Features:

• Stainless steel front and black painted sides
• 4" (102mm) Sanitary legs
• Easy clean design
• 18" (457mm) deep cooking surface
• Piezo spark ignition
• Rear gas connection w/pressure regulator
• Natural or propane gas
• 15" (381mm) or 30" (762mm) widths
• Two or four open burners, one valve per open
burner
• 14,800 BTU per burner
• "CE" approved models are equipped with
Flame-Failure protection and have suffix "FF"
Optional Features:
 Stainless steel sides
 Stainless steel back and bottom
Note : Stands are available see form # CS24/CSD
Enodis UK LTD
Swallowfield Way,
Hayes, Middlesex
UB3 1DQ ENGLAND
Telephone: 081-561-0433
Fax: 081-848-0041
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
