INSTALLATION AND
OPERATION MANUAL

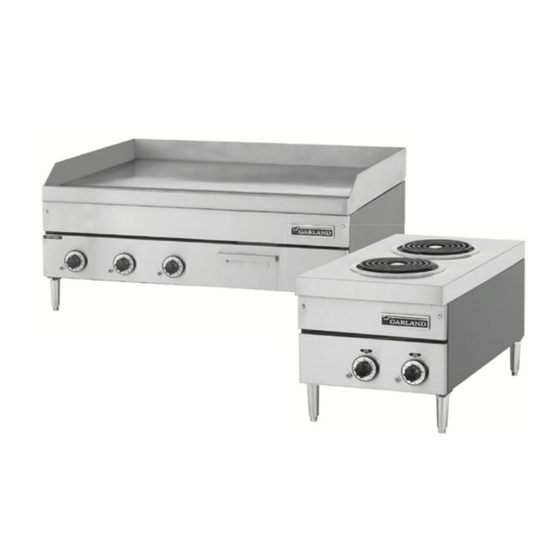

GARLAND COUNTER TOP
HOT PLATES & GRIDDLES
MODELS: E24-12H, E24-24G,
E24-36G, E24-48G,
E24-60G & E24-72G
FOR YOUR SAFETY:
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS OR
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE, INJURY,
OR DEATH. READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR
SERVICING THIS EQUIPMENT
Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent
using genuine Garland replacement parts . Garland will have no obligation with respect to any product that has been
improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation
instructions provided with the product, or any product that has its serial number defaced, obliterated or removed,
or which has been modified or repaired using unauthorized parts or by unauthorized service agents .
For a list of authorized service agents, please refer to the Garland web site at http://www .garland-group .com .
The information contained herein, (including design and parts specifications), may be superseded and is subject
to change without notice .
GARLAND COMMERCIAL INDUSTRIES
185 East South Street
Freeland, Pennsylvania 18224
Phone: (570) 66-1000
Fax: (570) 66-90
Part # 1009080 Rev 5 (01/25/08)
Part # 1009080 Rev 5 (01/25/08)
APPLIANCE
WARNING:
GARLAND COMMERCIAL RANGES, LTD .
1177 Kamato Road, Mississauga, Ontario L4W 1X4
CANADA
Phone: 905-624-0260
Fax: 905-624-5669
PLEASE READ ALL SECTIONS OF THIS MANUAL
AND RETAIN FOR FUTURE REFERENCE .
THIS PRODUCT HAS BEEN CERTIFIED AS
COMMERCIAL COOKING EQUIPMENT AND
MUST BE INSTALLED BY PROFESSIONAL
PERSONNEL AS SPECIFIED .
INSTALLATION AND ELECTRICAL CONNECTION
MUST COMPLY WITH CURRENT CODES:
IN CANADA - THE CANADIAN ELECTRICAL
CODE PART 1 AND / OR LOCAL CODES .
IN USA – THE NATIONAL ELECTRICAL CODE
ANSI / NFPA – CURRENT EDITION .
ENSURE ELECTRICAL SUPPLY CONFORMS WITH
ELECTRICAL CHARACTERISTICS SHOWN ON
THE RATING PLATE .
Enodis UK LTD .
Swallowfi eld Way, Hayes, Middlesex UB 1DQ ENGLAND
Telephone: 081-561-04
Fax: 081-848-0041
© 2004 Garland Commercial Industries, Inc .
Page 1
Advertisement
Table of Contents
Related Manuals for Garland E24-12H
Summary of Contents for Garland E24-12H
- Page 1 Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent using genuine Garland replacement parts . Garland will have no obligation with respect to any product that has been improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or which has been modified or repaired using unauthorized parts or by unauthorized service agents .
-
Page 2: Important Information
IMPORTANT INFORMATION WARNING: This product contains chemicals known to the state of california to cause cancer and/or birth defects or other reproductive harm. Installation and servicing of this product could expose you to airborne particles of glass wool/ceramic fibers. Inhalation of airborne particles of glass wool/ceramic fibers is known to the state of California to cause cancer. -
Page 3: Table Of Contents
E24-12H Hot Plate . . . . . . . . . . . . . . . . . . . -
Page 4: Dimensions
DIMENSIONS E24-12H E24-24G, E24-36G, E24-48G E24- 60G and E24-72G REAR CABLE 7" ENTRANCE [178mm] 29-1/4" [743mm] 48" [1219mm] 36" [914mm] 24" [610mm] 12-13/16" [325mm] Add 4” (102mm) to height if sanitary legs are used Page 4 29" [737mm] 72" [1829mm] 60"... -
Page 5: Electrical Specifications
ELECTRICAL SPECIFICATIONS E24 Grill Loading Chart – Delta (Domestic Wiring) Model Voltage Total KW E24-24G E24-6G E24-48G E24-60G E24-72G Model Voltage Total KW 415V 2N~ 8 .0 (240/415V) E24-24G 80V 2N~ 6 .7 (220/80V) 415V 2N~ 12 .0 (240/415V) E24-6G 80V 2N~ 10 .1 (220/80V) -
Page 6: Introduction
ELECTRICAL SPECIFICATIONS Continued Total Kw Model Load E24-12H 4 .2 Export voltage available on request – Specify wiring required kW loadings are reduced on 220 volt systems . Standard wiring 240 volt (220/240) or 208 volt (197/219) single or three phase... -
Page 7: Installation
NOTE: Appliances are not internally fused . They must be connected to a suitable disconnect box in accordance with local code . E24-12H Hot Plate Electrical connection to the terminal may be made though the knockout on the main back . Front access is gained by raising the rear surface element and removing bowl . -
Page 8: Initial Operation
INITIAL OPERATION Before use allow the griddle plate to reach room temperature . Clean the griddle surface thoroughly by washing with hot water and mild soap to remove rust preventative . Rinse and dry well . Griddle Seasoning Instructions 1 Remove all factory applied protective material by washing with hot water, mild detergent or soap solution . -
Page 9: Calibration Of The Griddle Thermostat
OPERATION Continued Calibration of the Griddle Thermostat Equipped with commercial duty snap action electric thermostats, these units are designed to open on temperature rise . Field re-calibration is seldom necessary and should not be resorted to unless experience with cooking results definitely proves that the control is not maintaining the temperature to which the dial is set . -
Page 10: Maintenance And Cleaning
MAINTENANCE AND CLEANING NOTE: Disconnect line cord from the power supply or turn the power off at the circuit breaker before cleaning of servicing for your protection against electric shock . Exterior Cleaning Establish a regular cleaning schedule . Any spills should be wiped off immediately . - Page 11 Part # 1009080 Rev 5 (01/25/08) Page 11...
