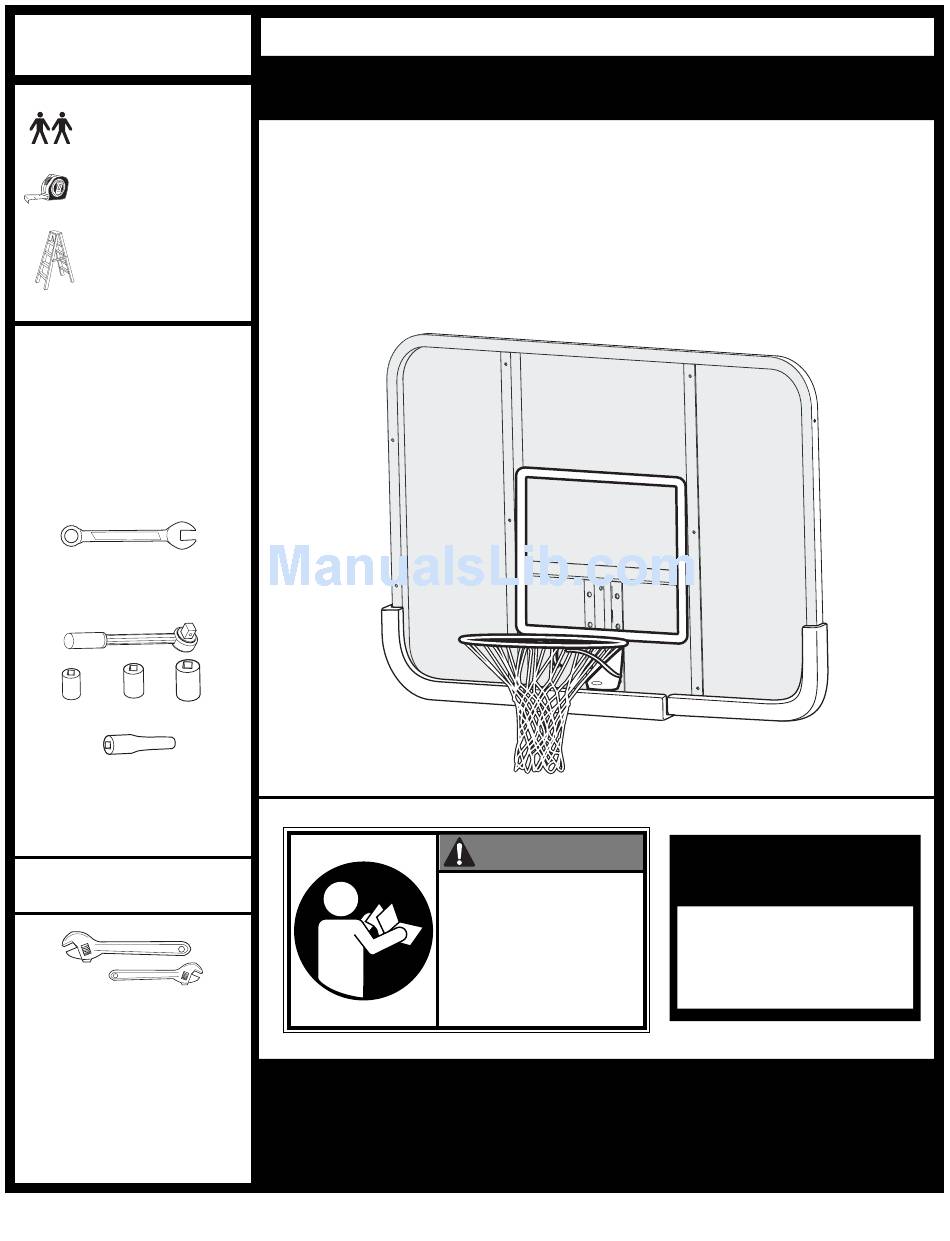

Huffy 1700 MXP Owner's Manual

Backboard and rim

Advertisement

Quick Links

REQUIRED TOOLS
AND MATERIALS:
• 2 Capable Adults
• Tape Measure
• Step Ladder - 8ft.
(2.4 m)
• (2 each) Wrenches
and/or Socket Wrenches
and Sockets (Deep-Well
Sockets are
Recommended).
1/2"
9/16"
AND/OR
1/2"
9/16"
3/4"
• Extension is
Recommended.
OPTIONAL TOOLS
AND MATERIALS:
• Large and Small
Adjustable Wrenches
© COPYRIGHT 2006 by SPALDING
This manual, accompanied by sales receipt, should be saved and kept on hand as a
convenient reference, as it contains important information about your model.
Backboard and Rim
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
3/4"
Adult Assembly Required.

Owners Manual

Customer Service Center
WARNING!
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO
PROPERTY.
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1-800-632 7921
Internet Address: http://www.huffysports.com
1
Write Model Number
From Box Here:
07/04
ID# M7900541
