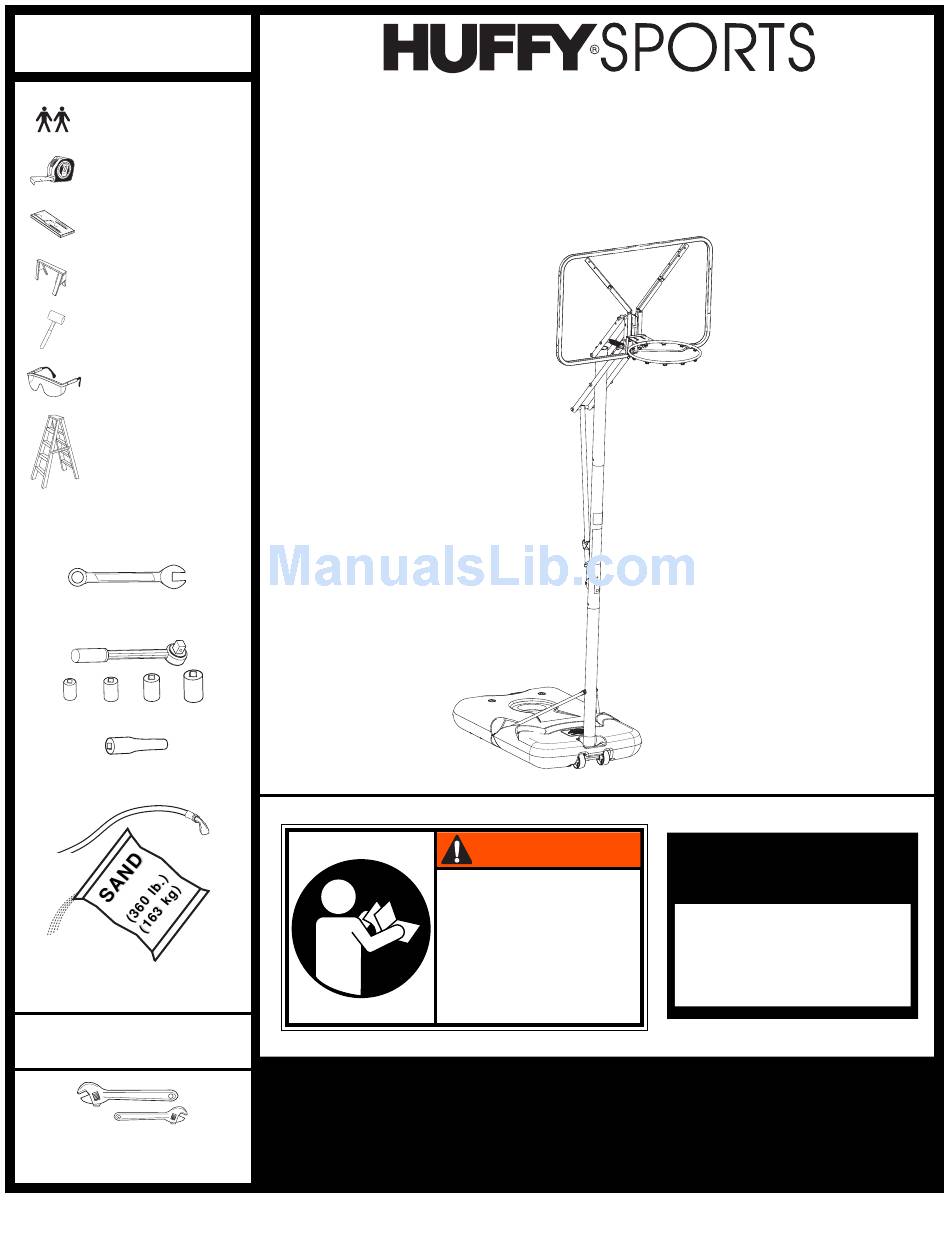

REQUIRED TOOLS
AND MATERIALS:
• 2 People
• Tape Measure
• Wood Board
(scrap)
• Sawhorse or
Support Table
• Hammer
• Safety Glasses
• Step Ladder - 8ft.
(2.4 m)
• (2 each) Wrenches and/or Socket
Wrenches and Sockets (Deep-
Well Sockets are Recommended).
7/16"
1/2"
9/16"
3/4"
AND/OR
7/16"
1/2"
9/16"
3/4"
• Extension is Recommended.
OPTIONAL TOOLS
AND MATERIALS:
•
Large and Small Adjustable
Wrenches
© COPYRIGHT 2005 by HUFFY SPORTS
A DIVISION OF RUSSELL CORPORATION
Portable System
Owners Manual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
WARNING!
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO
PROPERTY.
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1-800-632 7921
Internet Address: http://www.huffysports.com
1
Write Model Number
From Box Here:
2/05
P/N 211017
Advertisement
Table of Contents
Related Manuals for Huffy Fitness Equipment
Summary of Contents for Huffy Fitness Equipment
-
Page 1: Owners Manual
OPTIONAL TOOLS AND MATERIALS: • Large and Small Adjustable Wrenches © COPYRIGHT 2005 by HUFFY SPORTS A DIVISION OF RUSSELL CORPORATION Portable System Owners Manual Customer Service Center • N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A. -
Page 2: Before You Start
BEFORE YOU START! To ensure optimal playability of backboard system, a close tolerance fit between the elevator components and hardware is required. Test-fit large bolts into large holes of elevator tubes, backboard brackets, and triangle plates. Carefully rock them in a circular motion to ream out any excess paint from holes if necessary. -
Page 3: Safety Instructions
The climate, placement of the pole, the location of the pole, exposure to corrosives such as pesticides, herbicides or salts are all important. • If technical assistance is required, contact Huffy Sports. • Adult supervision is recommended when adjusting height. - Page 4 ALL Huffy Sports Basketball Systems, including those used for DISPLAYS, MUST be assembled and ballasted with sand or water according to the instructions. Failure to follow instructions could result in SERIOUS INJURY. It is NOT acceptable to devise a makeshift weight system.
-
Page 5: Front View
Get to know the basic parts of your basketball system... FRONT VIEW BACK VIEW BACKBOARD BACKBOARD ELEVATOR ADJUSTMENT ELEVATOR POLE ADJUSTMENT POLE SUPPORT SUPPORT STRUT STRUT BASE BASE 2/05 P/N 211017... - Page 6 Item Qty. Part No. Description 206657 Tank, (Black) 200628 Wheel Axle 226401 Wheel, 4“ (Black) 908170 Top Pole Section 904840 Middle Pole Section 900136 Bottom Pole Section 202820 Rod, 3/8 O.D. x 4-3/4 Long 202822 Eyebolt, 3/8-16 x 2-1/2 Long 203063 Nut, Nylock, 3/8-16 906206...
- Page 7 HARDWARE IDENTIFIER (BOLTS & PINS) Item #8 (1) Item #15 (6)* Item #11 (1) Item #18 (1) Item #28 (2) Item #35 (2)* Item #36 (1) Item #43 (6) HARDWARE IDENTIFIER (NUTS & WASHERS) Item #9 (3) Item #13 (2) Item #16 (8)* Item #12 (6) Item #39 (6)
- Page 8 HARDWARE IDENTIFIER (STEEL SPACERS & RODS) Item #7 (1) Item #33 (2) HARDWARE IDENTIFIER (PLASTIC SPACERS & CLIPS) Item #48 (2) Item #20 (12) Item #37 (4) Item #17 (2) HARDWARE IDENTIFIER (OTHER) Item #31 (1) Item #32 (1) Item #34 (1) Item #30 (1) P/N 211017 2/05...
-
Page 9: Section A: Assemble The Base
SECTION A: ASSEMBLE THE BASE This is what your system will look like when you’ve finished this section. Correctly identify each pole section. Poles have an identification sticker that will be used as a reference point in the next step. ITEMS REQUIRED FOR THIS SECTION (2) 1/2”, (2) 9/16"... - Page 10 While maintaining alignment, bounce pole top (4) and middle section (5) together as shown until they no longer move toward identification sticker. Upright assembly. IMPORTANT! Center alignment slot of middle pole section (5) in a lower hole of top pole section (4) as shown.
- Page 11 Install rod (7) through holes in bottom pole section (6) and eyebolt (8). Install wheel axle (2) through wheel carriage (19) and install wheels (3) onto wheel axle (2) with spacers (17) as shown. Insert pole assembly into tank assembly as shown.
- Page 12 Secure flat end of tank struts (10) to pole using bolt (11), washers (12), and nut (13), as shown. Rotate the non-secured angled ends of the struts (10) as shown. Secure tank struts (10) to the base using bolt (15), washers (12), and nut (16).
-
Page 13: Section B: Attach The Backboard
SECTION B: ATTACH THE BACKBOARD This is what your system will look like when you’ve finished this section. Assemble backboard brackets (29) using spacers (33) bolts (35) and nuts (9) as shown. Identify elevator tubes (41 and 42). Toward Pole ITEMS REQUIRED FOR THIS SECTION (2) 1/2”, (2) 9/16”... - Page 14 Attach lower elevator tubes (41) and spring (44) to backboard brackets (29) using spacers (37) bolt (43) and nut (39) as shown. Insert T-bolt (36) through Slam Jam bracket (32) as shown. Secure Slam Jam bracket (32) and backboard bracket (29) assemblies to backboard. Using bolt (15) and nut (16) as shown. WARNING! TWO PEOPLE REQUIRED FOR THIS PROCEDURE.
- Page 15 Attach upper elevator tubes (42) to backboard brackets (29) using spacers (37) bolt (43) and nut (39) as shown. Support pole on sawhorse. Attach upper and lower elevator tubes (41 and 42) to upper pole section (4) using bolts (43) and nuts (39) as shown. Attach pole cap (22) as shown. WARNING! TWO PEOPLE REQUIRED FOR THIS PROCEDURE.
- Page 16 Slide inner adjustment tube (47) into outer tube assembly (46) until it snaps in place about midway inside the outer tube assembly (46). Attach adjustment tube (46) assembly to lower elevator tubes (41) using bolt (43) spacers (48) and nut (39) as shown. IMPORTANT! NOTE ORIENTATION OF HANDLE...
- Page 17 Attach the inner adjustment tube (47) to pole mount bracket (27) using bolt (18) and nut (13) as shown. WARNING! TIGHTEN BOLT (18) IN LOCK NUT (13) UNTIL FLUSH (EVEN) WITH LOCK NUT’S OUTER EDGE. WARNING! TWO PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR...
- Page 18 Install Slam Jam Rim to Backboard A Fit rim (21) securely into bracket (32) as shown. Allow T-bolt (36) to slip through center hole in rim (21). B Install reinforcement bracket (31) onto T-bolt (36) as shown. C Install spring (30) onto T-bolt (36) as shown. D Install special nut (40) and washer (38) onto T-bolt (36).
- Page 19 Install net clips (20). WARNING! USE OF THIS PRODUCT WITHOUT PROPER INSTALLATION OF SMART CLIPS ® , OR WHEN ALL SMART CLIPS ® ARE NOT PRESENT COULD RESULT IN BODILY HARM. BE SURE TO FOLLOW DIRECTIONS CAREFULLY. Insert one “arm” of clip (20) into ram (21) as shown. Twist “body” of clip slightly so that second “arm”...
- Page 20 NET INSTALLATION Insert net (26) into bottom of clip (20) as shown. Twist net (26) until it snaps into position. Net must be centered through clip (20). SIDE VIEW NET CLIP SIDE VIEW NET CLIP P/N 211017 2/05...
- Page 21 Insert bolt (43) through left side upper elevator tube (42), then stretch spring (44) onto bolt (43). Insert bolt (43) through right side upper elevator tube (42) and secure with nut (39). WARNING! USE EYE PROTECTION WHEN INSTALLING SPRINGS. 2/05 P/N 211017...
- Page 22 Roll the completed assembly to the desired playing area. Insert the T-strap (14) through the slot on the back of the base as shown. Secure the unit to ground by twisting the tie down stake (23) into the ground and hooking the T-strap (14) onto the tie down stake (23). Fill tank with 33 gallons of water. WARNING! TWO PEOPLE REQUIRED FOR THIS PROCEDURE.
