REQUIRED TOOLS
AND MATERIALS:
• 2 People
• Tape Measure
• Wood Board
(scrap)
• Sawhorse or
Support Table
• Hammer
• #2 or #3 Phillips
Screwdriver
• (2 each) Wrenches and/or
Socket Wrenches and
Sockets (Deep-Well Sockets
are Recommended).
1/2"
9/16"
3/4"
AND/OR
1/2"
9/16"
3/4"
• Extension is Recommended.
• Garden Hose or Sand
• Step Ladder 8ft. (2.4 m)
OPTIONAL TOOLS
AND MATERIALS:
• Large and Small Adjustable
Wrenches
© COPYRIGHT 2005 by HUFFY SPORTS
A DIVISION OF RUSSELL CORPORATION
Universal Elevator Mount

Owners Manual

Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
WARNING!
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO
PROPERTY.
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1-800-632 7921
Internet Address: http://www.huffysports.com
1
Write Model Number
From Box Here:
03/05
P/N 211014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 211014 and is the answer not in the manual?

Questions and answers

Related Manuals for Huffy 211014

Summary of Contents for Huffy 211014

  • Page 1: Owners Manual

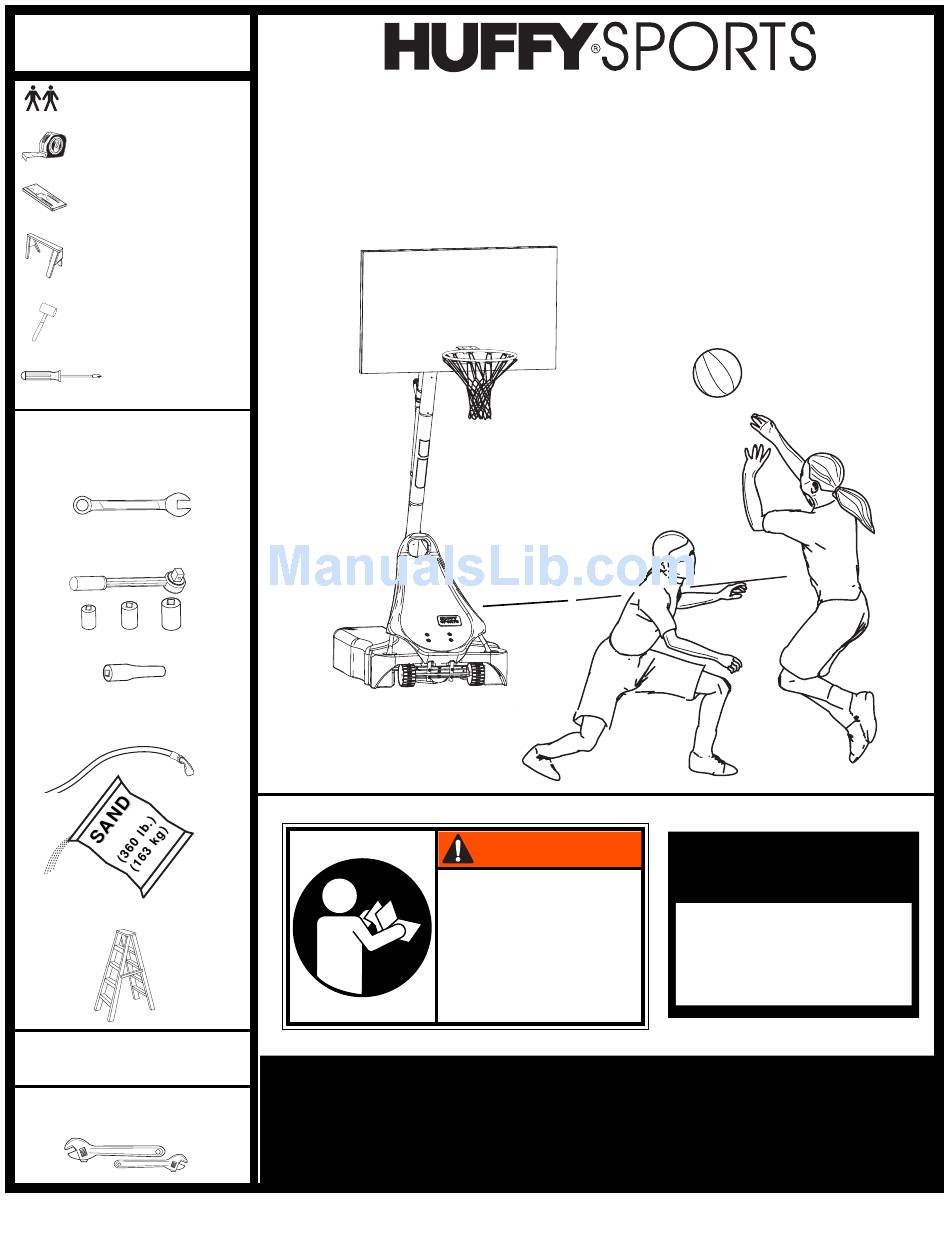

    OPTIONAL TOOLS AND MATERIALS: • Large and Small Adjustable Wrenches © COPYRIGHT 2005 by HUFFY SPORTS A DIVISION OF RUSSELL CORPORATION Universal Elevator Mount Owners Manual Customer Service Center • N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.

  • Page 2: Before You Start

    Carefully rock them in a circular motion to ream out any excess paint from holes if necessary. Not all items pictured are included with every model. P/N 211014 03/05 WARNING FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.

  • Page 3: Safety Instructions

    PROPERTY DAMAGE AND WILL VOID WARRANTY. Use caution when using this unit. NOTICE TO ASSEMBLERS IMPORTANT! Remove all contents from boxes. WARRANTY CARD: Please remember to complete your product registration form either on-line at: www.huffysports.com/warrantycard or mail-in the enclosed postcard. 03/05 P/N 211014...

  • Page 4: Front View

    Get to know the basic parts of your basketball system... FRONT VIEW BACK VIEW BACKBOARD ELEVATOR TOP POLE ASSEMBLY BOTTOM POLE MIDDLE POLE FRONT STRUTS BASE COVER WHEEL CARRIAGE ASSEMBLY P/N 211014 03/05...

  • Page 5: Parts Identifier

    Tie Down Stake 201568 Anchor Strap 204532 Label Height & Moving 226401 Wheel 4” 900033 Bracket, Slam Jam Rim 200318 Bracket, Rim Reinforcement 203472 Spring, Slam Jam Rim P-3 (1) P-6 (2) P-7 (1) P-10 (1) P-13 (2) 03/05 P/N 211014...
  • Page 6 P-14 (1) P-18 (1) P-21 (2) P-25 (1) P-29 (1) P/N 211014 03/05 PARTS IDENTIFIER P-15 (1) P-16 (2) P-19 (2) P-23 (1) P-22 (1) HEIGHT ADJUSTMENT TO ADJUST BACKBOARD: 1. Grasp handle and press button. 2. Raise or lower to desired height.
  • Page 7 Bolt, Hex Flange, 5/16-18 x 1" Long H-30 202739 Bolt, Hex, 5/16-18 x 1.75" Long H-31 203796 T-Bolt, 3/8-16. 5" Long H-32 203470 Washer, Flat, 1.5" O.D. H-33 203795 Nut, Special * You may have extra hardware with this model. 03/05 P/N 211014...
  • Page 8 Item H-6 (1) Item H-3 (1) Item H-8 (1) Item #H-10 (1) Item #H-30 (1) Item H-25 (2) Item H-31 (1) Item H-21 (2) Item #H-29 (4) Item H-13 (4) Item H-2 (1) Item H-27 (4) Item H-16 (2) P/N 211014 03/05...
  • Page 9 Item H-33 (1) Item H-4 (7) Item H-5 (1) Item H-9 (4) Item H-22 (1) HARDWARE IDENTIFIER (PLASTIC SPACERS & CAPS) Item H-7 (1) Item H-14 (2) Item H-1 (4) Item H-28 (12) Item H-17 (4) Item H-20 (4) 03/05 P/N 211014...

  • Page 10: Section A: Assemble The Poles

    Align dimple of top pole section (P-1) into trough of middle pole section (P-2) as shown. Pole Middle STICKER TROUGH 5" 1-1/2" DIMPLE P/N 211014 03/05 SECTION A: ASSEMBLE THE POLES 5" (13 cm) Pole Middle Wood Scrap HOLE Pole Identification...
  • Page 11 (NOT SUPPLIED) IMPORTANT! Holes in top pole (P-1) and bottom pole (P-3) sections MUST align to correctly position elevator system toward playing surface. RODS SHOWN ARE FOR VISUAL REPRESENTATION OF ALIGNMENT AND ARE NOT SUPPLIED WITH THE HARDWARE 03/05 P/N 211014...

  • Page 12: Section B: Assemble The Base

    • Assemble Pushnut, Wheels, Axle, And Wheel Bracket As Shown. • Support Pushnut/Axle From The End With A Block Of Wood To Install The Second Pushnut Onto The Axle. Wood Block P/N 211014 03/05 SECTION B: ASSEMBLE THE BASE NOTE: P-28 P-28...
  • Page 13 Install wheel assembly to base (P-8) using bolt (H-2), and nut (H-11) as shown. Finger-tighten only. H-11 Install rod (H-5) through holes in bottom pole section (P-3) and eyebolt (H-6). 03/05 P/N 211014...
  • Page 14 (P-26), washer (H-4), and lock nut (H-26). WARNING! TWO PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. IMPORTANT! The Warning Label should be facing towards the front. P/N 211014 03/05 P-26 H-26...
  • Page 15 FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. Rotate non-secured ends of tank struts (P-13) outward to mounting holes in tank as shown. P-13 P-13 ORIENTATION OF STRUTS P-13 H-4 H-23 P-13 NOTE: 03/05 P/N 211014...
  • Page 16 Insert bolt (H-10) through lower pivot bracket (P-15) as shown; bolt (H-10) will be secured in step 11. Carefully place base assembly on its side. Install lower pivot bracket (P-15) with bolt (H-12), washers (H-9), and lock nut (H-26) as shown. P/N 211014 03/05 P-13...
  • Page 17 Bracket As Shown. • Support Pushnut/Axle From The End With A Block Of Wood To Install The Second Pushnut Onto The Axle. Wood Block IMPORTANT! SIDE OF WHEEL WITH LONGER PLASTIC AXLE NEEDS TO FACE THE WHEEL BRACKET. 03/05 P/N 211014...
  • Page 18 WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. Install pole mount bracket (P-9) and reinforcement bracket (P-7) with carriage bolts (H-16) as shown. Tighten flange nuts (H-11) completely. H-11 P/N 211014 03/05 H-26 Carefully reposition entire assembly as shown:...

  • Page 19: Section C: Assemble The Elevator System & Backboard

    This is what your system will look like when you’ve finished this section. Securely rest the assembly on sawhorse. Identify elevator tubes (P-19 and P-20). P-20 P-19 P-19 Lower Elevator Tube Toward Pole P-20 Upper Elevator Tube Toward Board 03/05 P/N 211014...

  • Page 20: Completed Assembly

    Install triangle plates (P-17) and elevator tubes (P-19 and P-20) to top pole section (P-1) as shown. Install pole cap (P-18) at this time. WARNING! TIGHTEN BOLT (H-18) IN LOCK NUT (H-15) UNTIL FLUSH (EVEN) WITH LOCK NUT’S OUTER EDGE. COMPLETED ASSEMBLY P/N 211014 03/05 H-15 H-17 P-17 H-17 H-18 H-18...
  • Page 21 H-24 P-21 P-21 H-25 H-26 Face of Backboard P-11 P-10 H-24 P-21 H-25 P-10 NOTE: Rotate upper tube to line up screw holes. Reinsert screws removed in previous step as shown. H-26 H-24 H-26 H-25 03/05 P/N 211014...
  • Page 22 (H-11). IMPORTANT! Position springs (P-12) against elevator tubes as shown P/N 211014 03/05 Insert spacer (H-22) through springs (P-12) then assemble lower elevator tubes (P-19), and springs (P-12), to brackets (P-21) using bolts (H-18), plastic spacers (H-20), metal P-19 spacer (H-22) and nuts (H-15) as shown.
  • Page 23 C. Install spring (P-32) onto T-bolt (H-31) as shown. D. Install special nut (H-33) and washer (H-32) onto T-bolt (H-31). E. Tighten nut (H-33) until flush with end of T-bolt (H-31). P-31 P-29 H-31 H-31 P-30 H-32 H-33 P-32 H-31 H-32 H-31 H-33 03/05 P/N 211014...
  • Page 24 Assemble upper elevator tubes (P-20) to brackets using bolt (H-18), plastic spacers (H-20), and nut (H-15) as shown. H-18 P/N 211014 03/05 H-15 H-20 P-21 H-20 P-20 WARNING! P-20 TIGHTEN BOLT (H-18) IN LOCK NUT (H-15) UNTIL FLUSH (EVEN) WITH LOCK NUT’S OUTER EDGE.
  • Page 25 10’ (3.05 m) setting. H-15 H-14 P-19 H-14 P-19 H-18 Note orientation of handle. P-10 H-23 P-20 P-20 P-17 IMPORTANT! WARNING! TIGHTEN BOLT (H-30) IN LOCK NUT (H-23) UNTIL FLUSH (EVEN) WITH LOCK NUT’S OUTER EDGE. 03/05 P/N 211014...
  • Page 26 (P-12) onto bolt (H-18). Continue inserting bolt (H-18) through right side upper elevator tube (P-20) and secure with nut (H-15). WARNING! USE EYE PROTECTION WHEN INSTALLING P/N 211014 03/05 H-18 SPRINGS. IMPORTANT! Position springs (P-12) against elevator tubes (away from brackets (P-21) as shown).
  • Page 27 Push second “arm” back and into ram as shown. Twist “body” of clip slightly again to spread “arms” of clip. Clip “arms” must be flat and touching edge-to-edge as shown, without overlapping. CLIP “ARM” H-28 CLIP “BODY” 03/05 P/N 211014...
  • Page 28 Install net (P-33). SIDE VIEW H-28 NET CLIP P-33 Insert net into bottom of clip as shown. P-33 SIDE VIEW Twist net until it snaps into position. Net must be centered through clip. NET CLIP P/N 211014 03/05...

  • Page 29: Section D: Install Front Cover & Handle

    FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. CAUTION! ADD TWO GALLONS (7.6 LITERS) OF NON-TOXIC ANTIFREEZE IN SUB- FREEZING CLIMATES. NOTE: IF USING SAND: 2 GALLONS OF ANTI-FREEZE IS NOT REQUIRED P-16 H-11 03/05 P/N 211014...

  • Page 30: Section E: Securing The System & Applying Label

    P-27 1. Grasp handle and press button. 2. Raise or lower to desired height. 3. Release button. MOVING SYSTEM P/N 211014 03/05 Apply Height Adjustment and Moving Label (P-27) to front of pole, where it is clearly visible. P-26 1. Adjust basketball backboard height to lowest position.
