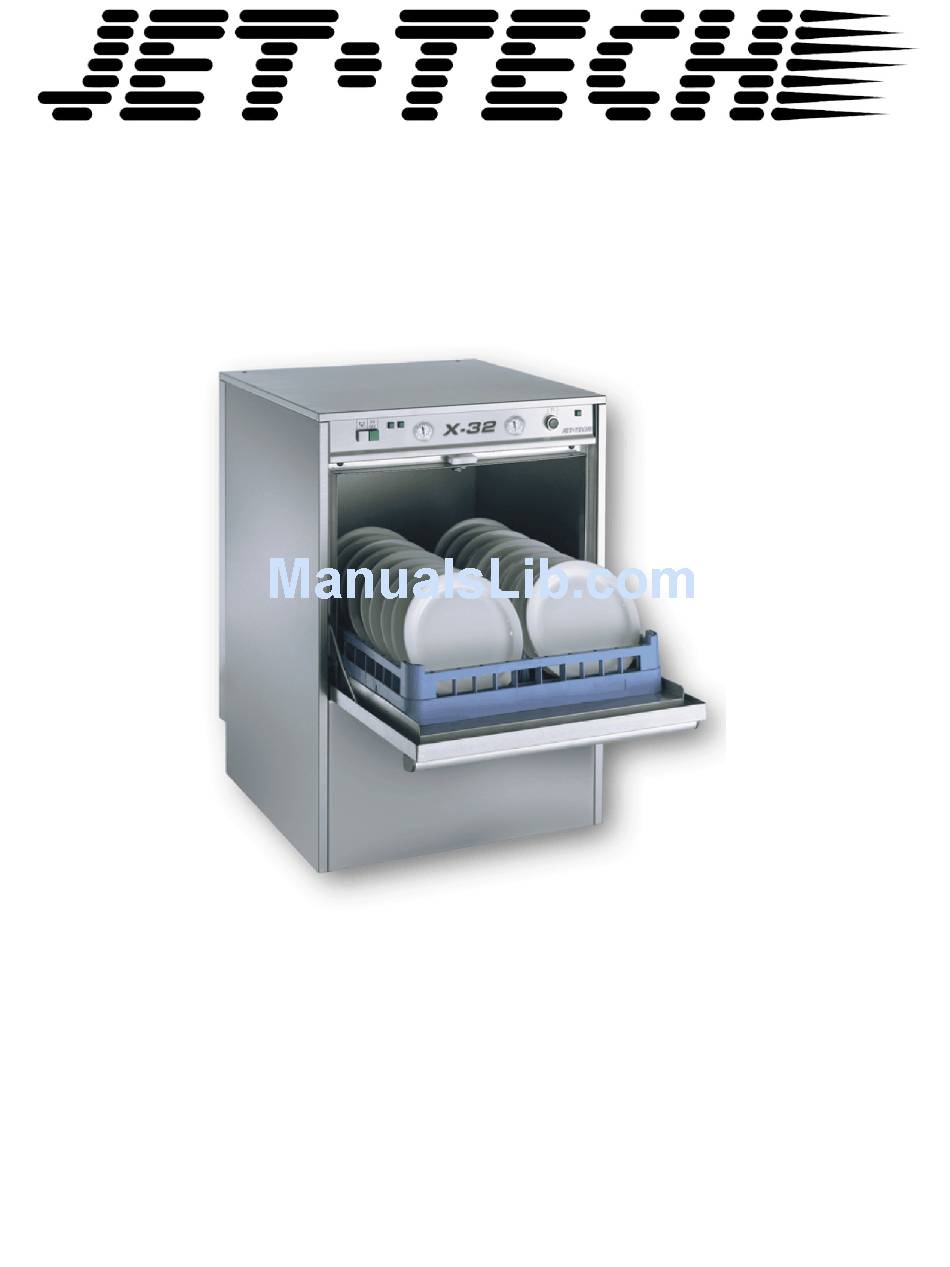

- Page 1 LOW TEMP WAREWASHERS X-32 X-32 Technical Manual 2003 02...
- Page 2 Welcome to JET TECH “creating endless possibilities!” This manual was created specifically for you, the end- user. We have included information to help troubleshoot problems and facilitate resolving those problems. General information pertaining to our range of ware- washers will be covered in this section. Specific information on our current models are available upon request;...
-
Page 3: Manufacturer's Limited Warranty
Warranty MANUFACTURERS LIMITED WARRANTY Jet Tech Systems Corporation (Jet Tech) hereby warrants all new warewashers bearing the name “JET TECH” and installed within the continental United States of America or Canada to be free from defects in material and workmanship, under normal and regular usage and operation, for a period of one (1) year following the date of original installation, (unless specified otherwise) but in no event can exceed eighteen (18) months from the date of shipment from the factory. -
Page 4: Technical Features
Independent Chemical Pumps Sanitary inner “deep-drawn” wash tank Construction features Technical Features Body , external housing, wash tank, and all chassis components in brushed stainless steel Rack capacity: 19.75" x 19.75" (50 cm x 50 AISI 304 18/8 cm) (one open combination rack and on peg dish rack supplied) Reduced operating noise of 58 DbA due to utilization of double-wall insulated panels... -
Page 5: Water Inlet
DRAIN The X‐32 is equipped with an automatic drain pump that will pump the drain water to a maximum height of 36" (0.9 meter). A 1" ID flexible drain hose is included to facilitate maintenance and servicing of the machine. It is important not to reduce the size of this hose. - Page 6 ELECTRICAL Unit must be connected with a 110 volts 60Hz line. The terminal block will receive L1, N and Ground wire. Unit must be well grounded. Breaker rating should be 15 amps.
-
Page 7: Getting Started
Getting Started Immediately upon receipt of your new X-32 dishwasher, inspect the dishwasher for any obvious signs of damage. If you do find any traces of damage, contact the transport company that brought the dishwasher to your place at once. -
Page 8: Installation Checklist
Chemical hook-up This unit is equipped with three (3) chemical pumps. Each will inject a different liquid product at a specific time during the wash cycle. The chemical pumps have sufficient length of tubing hose that can be inserted in gallon containers near the dishwasher. -
Page 9: Operation
Second function: is for de-lime. The operator must put the de-liming chemical product in the water in the wash tank of X-32 and then push the black button. When the de-lime push-button is in the ON position the wash pump... -
Page 10: Electrical Schematics
Electrical Schematics DPS - Drain pump By-pass switch MPS - Drain Pump TL - Main Power switch PS1, PS2 - Pressure switches ER - Rinse solenoid valve EC - Fill solenoid valve MPD - Detergent pump MPB - Rinse additive pump MPSA - Sanitizer pump MP - Door switch TLS - Deliming option switch...
