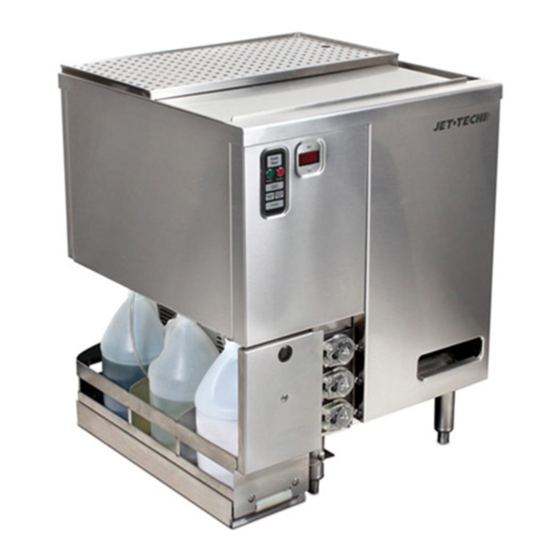

Standard Features :
Fill and dump style cycle uses less water and energy than traditional rotary glasswashers.
Unit plugs into standard 120V electrical outlet for an easy installation.
Computer controlled fill cycle allows for 75°F (24°C) rinse, providing clean glasses that are cool to the touch.
The sliding cover and cold water rinse prevent steam from escaping during and after the cycle.
Unique drainboard top provides integrated glassware landing area.
Exclusive design with side notch provides space for three one-gallon chemical containers within the 24" by 24" foot print.
Conveyor advance switch rotates conveyor one-half turn for easy loading and unloading of glassware.
Covers and drainboard top are easily removable for cleaning access.
Pre-programmed de-liming cycle for easy removal of mineral deposits during maintenance (de-liming agent must be added).
Conveyor and stationary spray box are easily removed for cleaning and visual inspection.
Automatic peristaltic metering pumps accurately dispense detergent, sanitizer, and rinse aid.
XG-37
ROTARY BAR
GLASSWASHER

Advertisement

Table of Contents
loading

Related Manuals for Jet-tech XG-37

Summary of Contents for Jet-tech XG-37

  • Page 1 XG-37 ROTARY BAR GLASSWASHER Standard Features : Fill and dump style cycle uses less water and energy than traditional rotary glasswashers.  Unit plugs into standard 120V electrical outlet for an easy installation.  Computer controlled fill cycle allows for 75°F (24°C) rinse, providing clean glasses that are cool to the touch. The sliding cover and cold water rinse prevent steam from escaping during and after the cycle. Unique drainboard top provides integrated glassware landing area. Exclusive design with side notch provides space for three one-gallon chemical containers within the 24" by 24" foot print.  Conveyor advance switch rotates conveyor one-half turn for easy loading and unloading of glassware.  Covers and drainboard top are easily removable for cleaning access. Pre-programmed de-liming cycle for easy removal of mineral deposits during maintenance (de-liming agent must be added).  Conveyor and stationary spray box are easily removed for cleaning and visual inspection.  Automatic peristaltic metering pumps accurately dispense detergent, sanitizer, and rinse aid. ...
  • Page 2 Easy to clean membrane switch panel includes : LESS Conveyor advance switch that rotates conveyor one half turn for easy loading and unloading WATER of glassware. Priming switches for easy priming of chemical Fill and dump style cycle results in up pumps. to 59% less water consumption than common industry rotary glasswashers. De-liming cycle for easy removal of mineral deposits during maintenance (de-liming agent must be added). No curtain and soft-start conveyor help to ensure no glasses tip over during operation. Full 10” of clearance height for washing glassware and pitchers. Can wash up to 18 glasses per minute, easily handling the output of multiple bartenders using typical glassware. (A complete cycle is 2 minutes, 15 seconds) LESS ENERGY Fill and dump operation means no maintenance heater and low utility bills. Uses up to 87% less energy than common industry rotary glasswashers. Virtually no idle energy use. XG-37 is equipped with Pumped wash and rinse ensures a slide-out chemical bottle water line pressure variances do not rack for easy access affect wash results. Durable water recirculating to chemical bottles. pump has stainless steel housing and impeller (shown with cover removed)
  • Page 3 The XG-37 has a fill and dump style cycle but the comparisons to traditional fill & dump style machines end there. In addition to the cold water rinse, this glasswasher is specifically designed to align with underbar equipment. It also has a sliding cover for access to glassware, which improves bartender work flow by eliminating the door extending into the aisle.
  • Page 4 NOTE: 1. In  all  cases,  consult  local  plumbing,  electrical  and  health  codes  for  regulations  which  may  not  be  consistent  with  the  7" information on the front of this specification sheet 10.625" 4.312" 2. The  utility  connections  are  made  from  the  floor  at the  bottom  of the unit approximately 7" to 8" high. 3. The Jet-Tech policy of constant quality improvement means  5" specifications are subject  to change without notice. 24" 15.531" 1  = DRAIN 2  = HOT WATER 10.5"...
  • Page 5 Operation Manual XG-37 G lasswasher © 2012 Jet-Tech Rev. 13-01-12...

  • Page 6: Table Of Contents

    Page Introduction ..................... 1 Utility Requirements and Connections ............2 Uncrating and Assembly Instructions ............. 2 XG-37 Parts Identification ................3 Start-Up Instructions ..................4-5 Water Level/Temperature Adjustment Procedure ........4 Chemical Adjustment Procedure ............5 Control Panel Operation ................. 6 Wash Cycle Description ..................

  • Page 7: Introduction

    This manual describes the operational features of the XG-37 model glasswasher. Please review this information before attempting installation and operation. Long term, trouble- free operation will follow if good housekeeping and maintenance procedures are followed. Thank you for selecting Jet-Tech products.
  • Page 8 tIlIty equIrements and onnectIons 1. G Use 1/2" OD (or larger) copper to 3/8" FMPT adapter provided. eneral lumbInG Minimum water pressure - 25 PSI. (Hot and cold water Maximum water pressure - 100 PSI. Install water pressure regulator if line pressure is over required) 100 PSI.
  • Page 9 10. Drain stopper Circuit Board * For a more comprehensive parts list, reference the XG-37 Parts Directory. 13. Water inlets 11. Inlet screen 14. Chemical inlets MVP Group Corp - 5659 Royalmount Ave., Montreal, QC, Canada H4P 2P9 Tel: 514.737.9701 / 888.275.4538 - Fax: 514.342.3854 / 877.453.8832...

  • Page 10: Start-Up Instructions

    Chemical containers should be stored in a manner and/or location that prevents them from spilling or splashing. Chemical containers must be secured. Please consult your chemical vendor to ensure proper storage or call the Jet-Tech factory to purchase an accessory chemical storage drawer, part number 01001500.
  • Page 11 tart nstructIons 5. Rinse Temperature Adjustment: With the sliding cover closed, initiate a cycle by pressing Cycle Start to check rinse water temperature (Rin Temp knob is set fully open at the factory and may require adjustment at installation location). Machine will perform wash cycle and proceed to rinse cycle.

  • Page 12: Control Panel Operation

    ontrol anel ycle ycle escrIptIon Control Panel Operation 1. Load the conveyor with glassware. To aid in loading the conveyor, rotate the conveyor 1/2 turn by pressing the Conveyor Advance button on the control panel. Cycle 2. Close the sliding cover. Start 3.
  • Page 13 XG-37 w IrInG IaGram pump pump Coveyor Advance Rinse 24Vac pump Transformer MC4003491TS Bl/W Conveyor Moptor 120 Vac Conveyor Br/W Soft Start Br/W Neutral Door Switch Br/W Br/W Control Box Temp Sensor BARE MC3003463FS Low Det. Low San. Low Rinse...

  • Page 14: Cleaning Instructions

    Regular maintenance of your Jet-Tech glasswasher will extend its useful life and lower the service costs. The following parts are removable for daily cleaning: 1. Drainboard insert 5. Conveyor 9. Pump inlet screen 2. Drainboard pan 6. Spray box 10.

  • Page 15: Liming Procedure

    1. With the conveyor empty, press the De-Liming button. The red In Use light will illuminate. 2. The XG-37 holds 1.25 gallons of water - measure out the appropriate amount of de-liming solution. WARNING! Most de-liming chemicals are hazardous. Follow chemical manufacturers instructions very carefully! 3.

  • Page 16: Useful Information About Water, Detergent And Sanitizer

    , & s seFul nFormatIon bout ater eterGent anItIzer ater ondItIons Your water supply fits one of the following descriptions. Greater detergent consumption is required with “hard” water. raIns arts escrIptIon allon IllIon Soft Less than 1.0 Less than 17.1 Slightly Hard 1.0 to 3.5 17.1 to 60...

  • Page 17: Important Information About Chemicals

    Only Jet-Tech replacement parts should be used. Components from other suppliers may result in machine malfunctions. Please consult your Jet-Tech service agent if service or technical assistance is required. The factory is also available to answer any operational questions.
  • Page 18 rouble hootInG uIde rouble or ItuatIon ause emedy A. Unit does not run Sliding cover open Close sliding cover Out of chemicals Replace and prime empty chemicals No power (Power light “off”) Check power source Defective switch panel Replace switch panel Wire connections poor, loose, or broken Re-crimp and/or replace wire connection B.

  • Page 19: Warranty

    MVP; provided that: the service work was performed by an authorized Jet-Tech service agency; and that this agency installed an original and genuine Jet-Tech part in the machine. Any repair work performed by a nonauthorized service depot remains the sole responsibility of the user, and MVP will not be held responsible.
  • Page 20 XG-37 w IrInG IaGram pump pump Coveyor Advance Rinse 24Vac pump Transformer MC4003491TS Bl/W Conveyor Moptor 120 Vac Conveyor Br/W Soft Start Br/W Neutral Door Switch Br/W Br/W Control Box Temp Sensor BARE MC3003463FS Low Det. Low San. Low Rinse...
  • Page 21 Parts Directory XG-37 G lassWasher...
  • Page 22 ndex Covers and Drainboard Tops ....... . . 4 Interior and Exterior Components ......5-6 Electrical Components .

  • Page 23: Covers And Drainboard Tops

    overs and raInboard esCrIPtIon 1. 01001559 Sliding cover 2. 01001560 Drainboard top 3. 01001440 Insert, drainboard top 4. 01001443 Inner cover 5. 01001552 Slide, plastic, sliding cover, (2 required)

  • Page 24: Interior And Exterior Components

    nterIor and xterIor omPonents...
  • Page 25 nterIor and xterIor omPonents esCrIPtIon 1. 01001479 Assembly, conveyor 2. 01001481 Spray box 3. 01000472 Gasket, spray box 4. 01001476 Drain tank 5. 01000479 Bracket, front tank mounting 6. 00000041 Bolt, drain tank mounting, 1/4"-20x5/8", hex head (4 required) 06001545 Washer, flat, drain tank mounting, 1/4"-20 (8 required) 01000643 Lockwasher, split, drain tank mounting, 1/4"...

  • Page 26: Electrical Components

    leCtrICal omPonents...
  • Page 27 leCtrICal omPonents esCrIPtIon 1. 01001408 Soft start module 2. 01001406 Main control module 3. 01001407 Relay module 4. 01001561 Electrical panel 5. 01000556 Transformer, primary - 120 VAC, secondary - 24 VAC, 40VA 6. 00000039 Screw, transformer mounting, 10-32 x 3/8" phillips TH, MS, SS (2 required) 7.

  • Page 28: Recirculating Pump And Related Parts

    eCIrCulatInG umP and elated arts...
  • Page 29 eCIrCulatInG umP and elated arts esCrIPtIon 01001529 Pump kit, water recirculating (including items 1 - 8) 01001553 Mounting kit (including items 2 - 8) 1. 01000415 Pump, water recirculating, all stainless construction 2. 00000038 Screw, 1/4"-20x1/2" phillips truss head (4 required) 3.

  • Page 30: Peristaltic Pump, Chemical Tubing, And Related Parts

    erIstaltIC hemICal ubInG elated arts...
  • Page 31 erIstaltIC hemICal ubInG elated arts esCrIPtIon 01001558 Pump complete, triple, beta with tubing assemblies 01000570 Pump complete, triple, beta LESS tubing assemblies 1. 01001450 Pump panel 2. 00000001 Clamp, cable white nylon, 5/8" ID (2 required) 3. 00000153 Screw, phillips, pan head, 10x1/2" (4 required) 4.

  • Page 32: Drive Assembly Components

    rIve ssembly omPonents...

  • Page 33: Accessories

    rIve ssembly omPonents esCrIPtIon 1. 01001478 Drive shaft 2. 01000671 Bearing, flange (2 required) 3. 01000595 Drive motor, drive wheel, 10 RPM (same as drain stopper) 4. 01000531 Fan blade, drive motor 5. 00000035 Screw, drive motor mounting, 8-32 x 1/4" hex washer head (4 required) [attaches motor to motor mount] 6.

  • Page 34: Plumbing Components

    lumbInG omPonents...
  • Page 35 lumbInG omPonents esCrIPtIon 1. 01000561 Valve, water inlet 2. 00000041 Bolt, water inlet valve mounting, 1/4"-20 x 5/8", HWH 3. 01000617 Hose, nylon braider, water inlet (per foot) 4. 01000468 Clamp, hose, water inlet (6 required) 5. 01001523 Water line, hot 6.
