F-14
F-16DP
F-18DP
F-22
2019 03
JET TECH DISHWASHER OPERATOR MANUAL 2018 english only
1 mars 2019 07:06:50
DISHWASHER MANUAL
INSTALLATION AND MAINTENANCE
For operator. Do not discard.
1

Advertisement

Table of Contents
loading

Summary of Contents for Jet-tech F-14

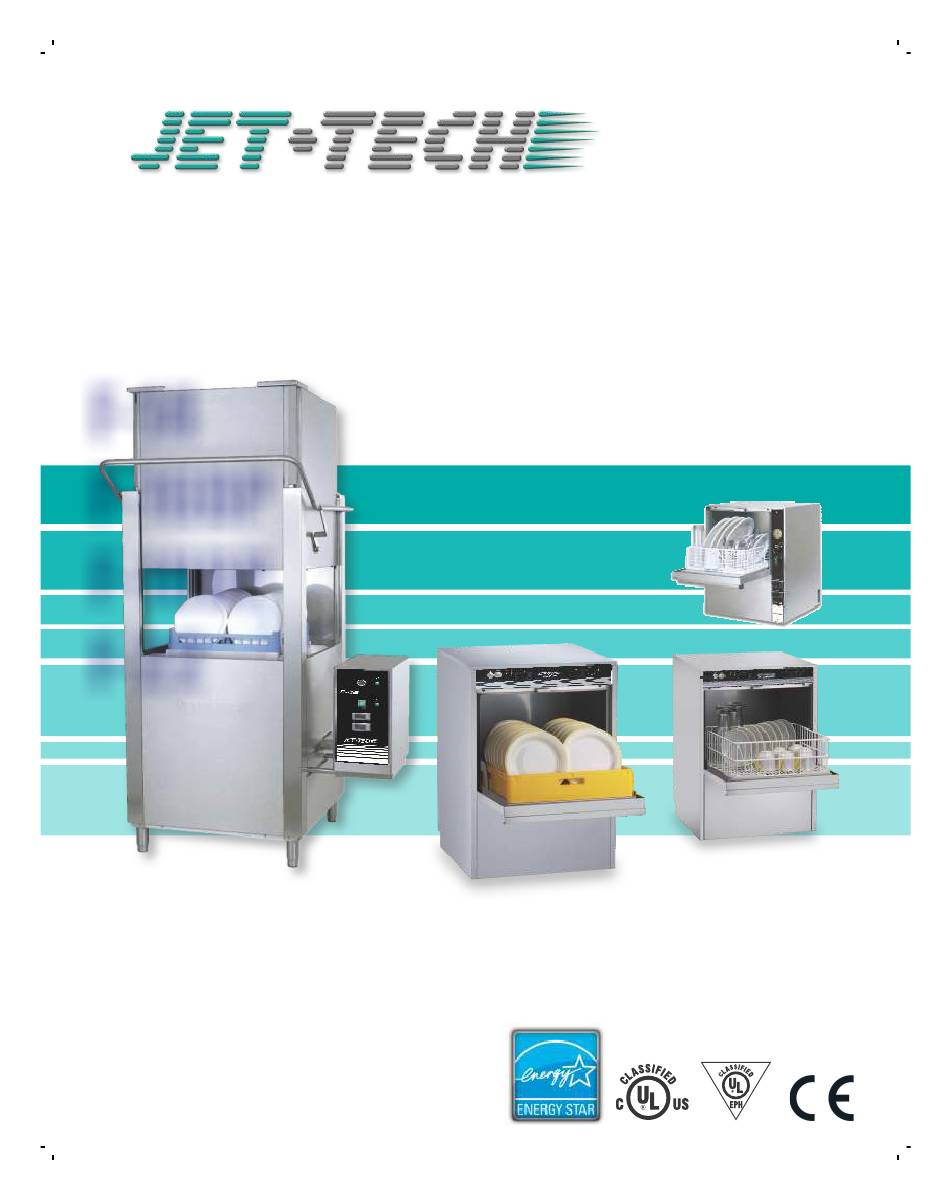

  • Page 1 DISHWASHER MANUAL INSTALLATION AND MAINTENANCE F-14 F-16DP F-18DP F-22 For operator. Do not discard. 2019 03 JET TECH DISHWASHER OPERATOR MANUAL 2018 english only 1 mars 2019 07:06:50...
  • Page 2 Welcome to JET TECH “Creating endless possibilities!” This manual was created specifically for you, the end-user. We have included information to resolving some problems. General information pertaining to our hi-temp ware washers will be covered in this section. Specific information on our current models is available upon request, model by model.
  • Page 3: Table Of Contents

    M a n u f a c t u r e ’ s W a r r a n t y ..... . p a g e 4 T e c h n i c a l D a t a .
  • Page 4: M A N U F A C T U R E ' S W A R R A N T Y

    Exceptions: Model F-14 - 90 days labor & one year parts. The manufacturer reserves the rights to alter design and specifications without notice.
  • Page 5: Technical Data

    Technical Data JET-TECH – Technical Data DESCRIPTION F 14 F 16DP F-18DP F 22 voltage 120V 60 Hz 208-240V 60 208-240V 60 208-240V 60 Maximum absorption 1500 W 2770 W 4850 W 9950 W Washing pump motor 100 W 370 W...
  • Page 6: Installation Guidelines

    Enough room should be allowed around the unit to allow for servicing. The units come equipped with hoses, ready to connect and install. The electrical wire (except for the F-14) needs to be supplied by the electrician and will be “hard-wired” on a dedicated circuit.
  • Page 7: Removing Panels

    WATER, make sure that both the power and the water is shut off before the panels are removed. F-14 On the F-14, the rear panel can removed by taken out the six phillips screws(A). The front panel can be removed by prying it out. Insert a flat tool on the edge of the panel and pry out.
  • Page 8 Removing Panels cont. F-18DP A)The front bottom panel needs to be removed to access the chemical pumps. To connect the electrical wire it will be necessary to access the inside of the machine. The panels should be removed in a specific sequence.
  • Page 9: Electrical

    - For tri-phase model, three live wire are required and the rotation of the pump(s) must be verified. -Only a licensed electrician can make sure the unit is installed with the proper set-up, according to local codes. F-14 120 volts, 60hz, 13.5 amps...
  • Page 10 ELECTRICAL (Cont.) F-22 208 to 240 volts, single or three phase (no neutral) , 60 hz. The model on three phase can not be connected or converted to single phase. The electrical connection is made on the terminal block located in the control panel, to the right of the machine.
  • Page 11: Water Supply

    NOTE: Do not rely on the pressure gauge on the machine. This pressure gauge shows internal pressure only. It will show a pressure of about 15 PSI if 30 PSI is applied to the machine. F-14 Water In Water connection is 3/4 NPT. A flexible fill hose is supplied with this unit.
  • Page 12: Drain Connection

    For unit equipped with a drain pump, the hose should come up behind the unit and Drain Hose than flow down. Water Out F-14 The drain connection is 1 inch (27mm). A flexible drain hose is supplied with this unit. This unit is gravity drained. The machine must be higher than the drain.
  • Page 13: Chemical Pumps

    CHEMICALS AND CHEMICAL DISPENSERS All models are equipped with factory installed liquid detergent and rinse-aid pumps which automatically dispense during the rinse/fill cycle. They are located in the base of the machine. Calibration may be necessary for certain area but is not covered by warranty. These pumps can not be substituted. Other dispensers can not be installed on these models as it will void the warranty.
  • Page 14: Basic Steps To Start

    CONTROL PANEL A: Pressure gauge PRESSURE GAUGE B: Start button C: Power switch button START D: Wash water temperature E: Rinse water temperature ON/OFF READY F: Cycle pilot light G: Ready temperatures pilot light WASH H: Power pilot light I: Drain button RINSE ON/OFF WASH...
  • Page 15: Troubleshooting

    TROUBLESHOOTING PROBLEM CHECK ACTION Machine had been turned off for Turn the machine OFF. Remove the The unit fills constantly several hours without having drained overflow pipe and drain the unit the water from the wash tank. completely. Once drained, clean wash tank and filters.
  • Page 16 TROUBLESHOOTING PROBLEM CHECK ACTION Verify that the scrap screens are clean. Clean the scrap screens. Do not forget Dishes are not clean the wash pump filter . Clean the jets/nozzles. Be careful not Check to see if the wash/rinse arm jets are clogged.
  • Page 17: Maintenance

    TROUBLESHOOTING PROBLEM CHECK ACTION Level the unit with the four (4) Machine has not been levelled. Wash Pump Not Operating adjustable feet. Consistently Water level in the washtank may be too Turn the machine OFF. Remove the low (below the level of the screens). overflow pipe and drain the unit completely .
  • Page 18: Contact Information

    IMPORTANT NOTES Locate and clearly identify the water shut-off valve that supplies the dishwasher and the fuse box or breaker switches. Only qualified and/or licensed technician can repair this piece of equipment. Removing panels expose wires and live current. Breaker switch should be switched off or fuses removed before removing the panels.
  • Page 19 20190301 JET TECH DISHWASHER OPERATOR MANUAL 2018 english only 1 mars 2019 07:06:55...
