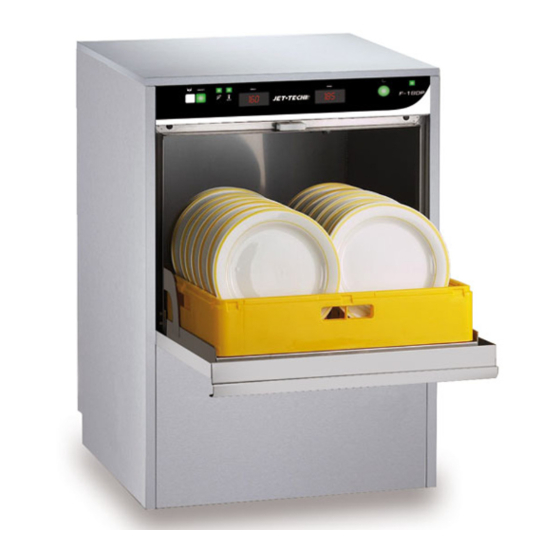

- Page 1 OWNER’S MANUAL DISHWASHER INSTALLATION AND MAINTENANCE...
-
Page 2: Control Panels
CONTROL PANELS F-18DP 1 Green Power Button Switch 2 Power ON Indicator Light 3 Rinse Temperature Gauge 4 Wash Temperature Gauge 5 “READY” Indicator Light 6 Cycle Start Button 7 Cycle Indicator Light 8 White Drain Pump Button... - Page 3 BASIC STEPS TO START Begin with an empty dishwasher. The wash tank should be empty. Make sure the filter screens and the overflow pipe are in place. Close the door. Push the square green button. The dishwasher will take about two minutes to fill and 20 minutes to heat the water.
- Page 4 On the model 767, set the selector to 2, 4 or 6 minute wash. Closing the hood on Models F-22, 747 & 767 will automatically start the cycle. The Cycle Indicator Light (7) will illuminate. The cycle starts and consists of a wash (up to 6 minutes), a brief pause and then a rinse (from 18 to 25 seconds).
- Page 5 Jet-Tech F-18DP BASIC STEPS TO OPERATE 185 F 165 F Close the door and press the power Make sure dishwasher is empty (no water) button. Wait 20 minutes for the water to and the filters & wash tank are clean of attain optimum washing temperatures.
- Page 7 PROBLEM ANALYSIS INDEX >The water level system may have an air leak. >>verify the water level system 1. Constantly fills from the pressure switch to the tube 2. Dishwasher makes a high down to the air trap. Replace the pitch noise when washing defective parts as required.
- Page 8 suds as possible. Leave overflow >>Verify all connections. out, close the door and put power on. Let unit run for 2 to 4 minutes. >Verify that power is going to the Turn off unit, put overflow back in, machine. close the door and refill unit. Try >>Verify the breaker or fuses.
- Page 9 opened. If it is, the customer may need to install a pressure-booster pump to increase the water pressure. Filling is too long. Exceeds 3 If the water pressure is too high minutes. (above 30psi), you must install a pressure regulator. >Incoming water pressure may be incorrect.
-
Page 10: Important Notes
The water supply must also required. be turned off. Don’t expose yourself injury. >The rinse agent may be of an Call Jet-Tech for service or support. inferior quality. >>Replace with a quality commercial brand. The wash pump does not...
