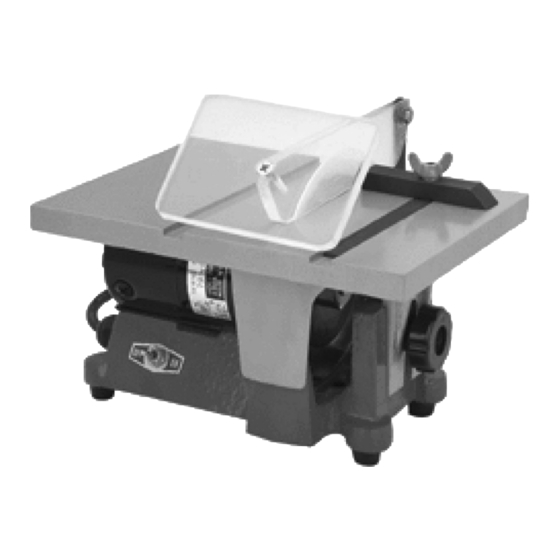

4" TABLE SAW
WITH 2 BLADES
ASSEMBLY AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright
2005 by Harbor Freight Tools
©
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools. Diagrams within this
manual may not be drawn proportionally. Due to continuing improvements, actual
product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 11e
93211
. All rights reserved. No portion of this
®
Advertisement
Table of Contents
Related Manuals for Chicago Electric 4" 93211
Summary of Contents for Chicago Electric 4" 93211
- Page 1 ® manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.
-
Page 2: Specifications
Specifications Motor 120 Volts AC /60 Hz / 90 Watts / HP / 14,000 no load RPM 14,000 RPM Minimum Accessory Rating Depth of Cut 3/4” Table Two miter slots, 3/8” each with miter gauge; 7-1/2” L x 5-1/2” W Arbor Diameter ”... - Page 3 Dress properly. Do not wear loose clothing or jewelry as they can be caught in moving parts. Protective, electrically nonconductive clothes and nonskid footwear are recommended when working. Wear restrictive hair covering to contain long hair. Use eye and ear protection. Always wear ANSI-approved impact safety goggles.
- Page 4 Approved accessories are available from Harbor Freight Tools. 19. Use proper size and type extension cord. If an extension cord is required, it must be of the proper size and type to supply the correct current to the tool without heating up.
- Page 5 Unpacking When unpacking, check to make sure that the product is intact and undamaged. If any parts are missing or broken, please call Harbor Freight Tools at the number on the cover of this manual. Important BEFORE first use, the Guard (4) and Eye Guard (5) must be properly installed.
-
Page 6: Operation
Operation Place your Table Saw on a flat, level surface capable of supporting weight of Table Saw and material being cut before use. Always wear ANSI-approved safety goggles when operating this tool and ensure that all guards are in place and in proper working order. -
Page 7: Parts List
Screw LIMITED 90 DAY WARRANTY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materi- als and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance. -
Page 8: Assembly Drawing
Assembly Drawing NOTE: Some parts are listed and shown for illustration purposes only and are not available individually as replacement parts. PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALI- FIED TO REPLACE ANY PARTS OF THE PRODUCT.
