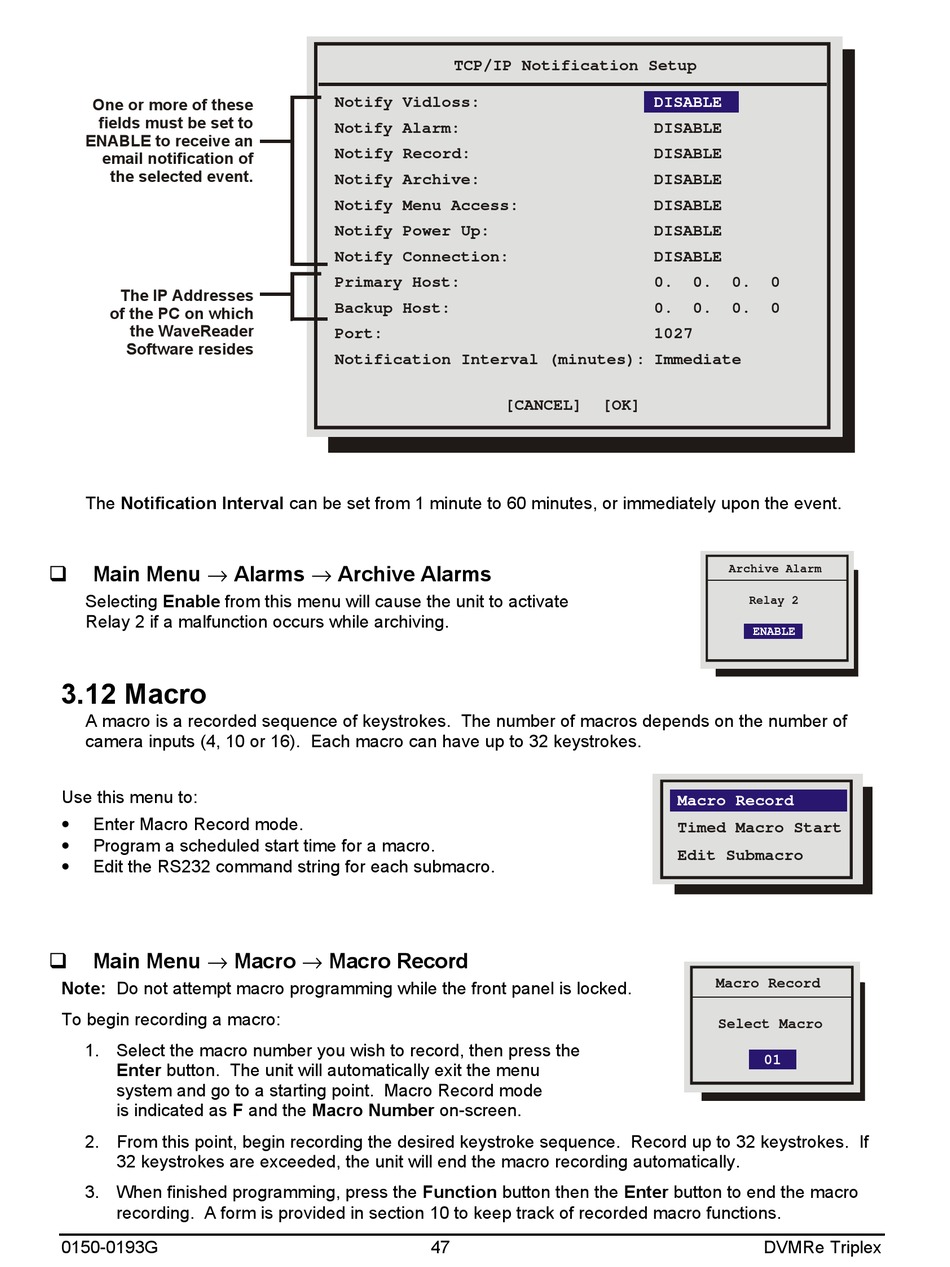

Macro - GE Security DVMRe Triplex User Manual

One or more of these
fields must be set to
ENABLE to receive an
email notification of
the selected event.
The IP Addresses
of the PC on which
the WaveReader
Software resides
The Notification Interval can be set from 1 minute to 60 minutes, or immediately upon the event.
q Main Menu
Selecting Enable from this menu will cause the unit to activate
Relay 2 if a malfunction occurs while archiving.

3.12 Macro

A macro is a recorded sequence of keystrokes. The number of macros depends on the number of
camera inputs (4, 10 or 16). Each macro can have up to 32 keystrokes.
Use this menu to:
Enter Macro Record mode.
Program a scheduled start time for a macro.
Edit the RS232 command string for each submacro.
Main Menu
q
Note: Do not attempt macro programming while the front panel is locked.
To begin recording a macro:
1. Select the macro number you wish to record, then press the
Enter button. The unit will automatically exit the menu
system and go to a starting point. Macro Record mode
is indicated as F and the Macro Number on-screen.
2. From this point, begin recording the desired keystroke sequence. Record up to 32 keystrokes. If
32 keystrokes are exceeded, the unit will end the macro recording automatically.
3. When finished programming, press the Function button then the Enter button to end the macro
recording. A form is provided in section 10 to keep track of recorded macro functions.
0150-0193G
Notify Vidloss:
Notify Alarm:
Notify Record:
Notify Archive:
Notify Menu Access:
Notify Power Up:
Notify Connection:
Primary Host:
Backup Host:
Port:
Notification Interval (minutes):
Alarms Archive Alarms
Macro Macro Record
TCP/IP Notification Setup
[CANCEL] [OK]
47
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
0. 0. 0. 0
0. 0. 0. 0
10 27
Immediate
Archive Alarm
Relay 2
ENABLE
Macro Record
Timed Macro Start
Edit Submacro
Macro Record
Select Macro
01
DVMRe Triplex
