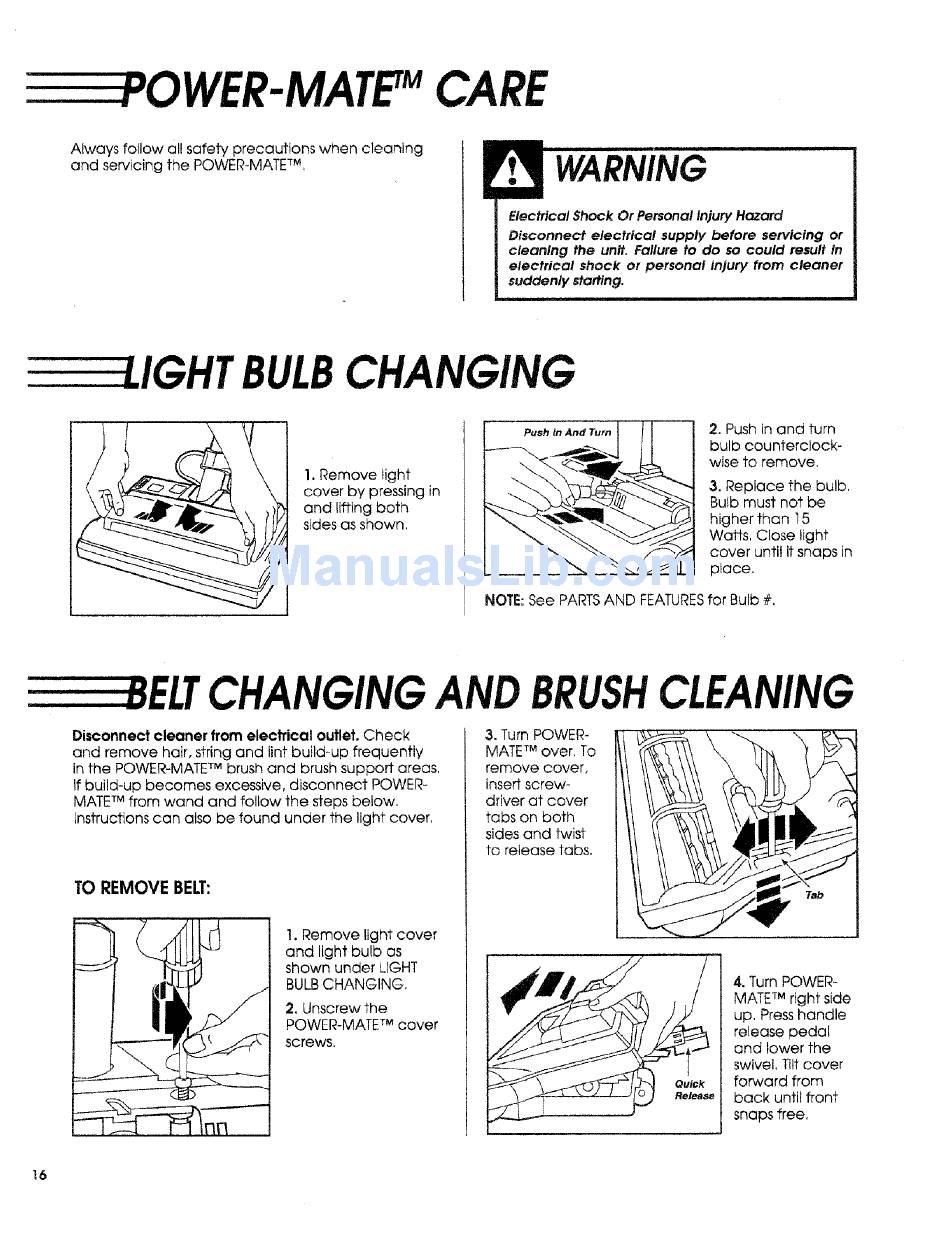

WER- M ATE CARE
Always follow all safety precautions when cleaning
and servicing the POWER-MATF M
I
Electrical Shock Or Personal injury Hazard i
Disconnect electrical supply before servicing or
I
cleanlng the unit. Failure to do so could nesult in
electrical shock or personal injury from cleaner
suddenly starting.
BULB CHANGING
1. Remove light
cover by pressing in
and lifting both
sides as shown,
Push tn And TI/rn
2, Push in and turn
bulb counterclock-
wise to remove.
3. Replace the bulb,
Bulb must not be
higher than 15
Wafts, Close light
cover until it snaps in
place.
NOTE: See PARTSAND FEATURES for Bulb #.
ELT CHANGINGAND BRUSH CLEANING
Disconnect cleaner from electrical outlet. Check
and remove hair, string and lint build-up frequently
in the POWER-MATE
TM
brush and brush support areas,
if build-up becomes excessive, disconnect POWER-
MATE
TM
from wand and follow the steps below,
instructions can also be found under the light cover,
TO REMOVE BELT:
1. Remove light cover
and light bulb as
shown under LIGHT
BULBCHANGING.
2. Unscrew the
POWER-MATE
TM
cover
screws.
3, Turn POWER-
MATE
TM
over. To
remove cover,
insert screw-
driver at cover
tabs on both
sides and twist
to release tabs,
4. Turn POWER-
MATE
TM
right side
up. Press handle
release pedal
and lower the
swivel. Tilt cover
forward from
back until front
snaps free,
16
