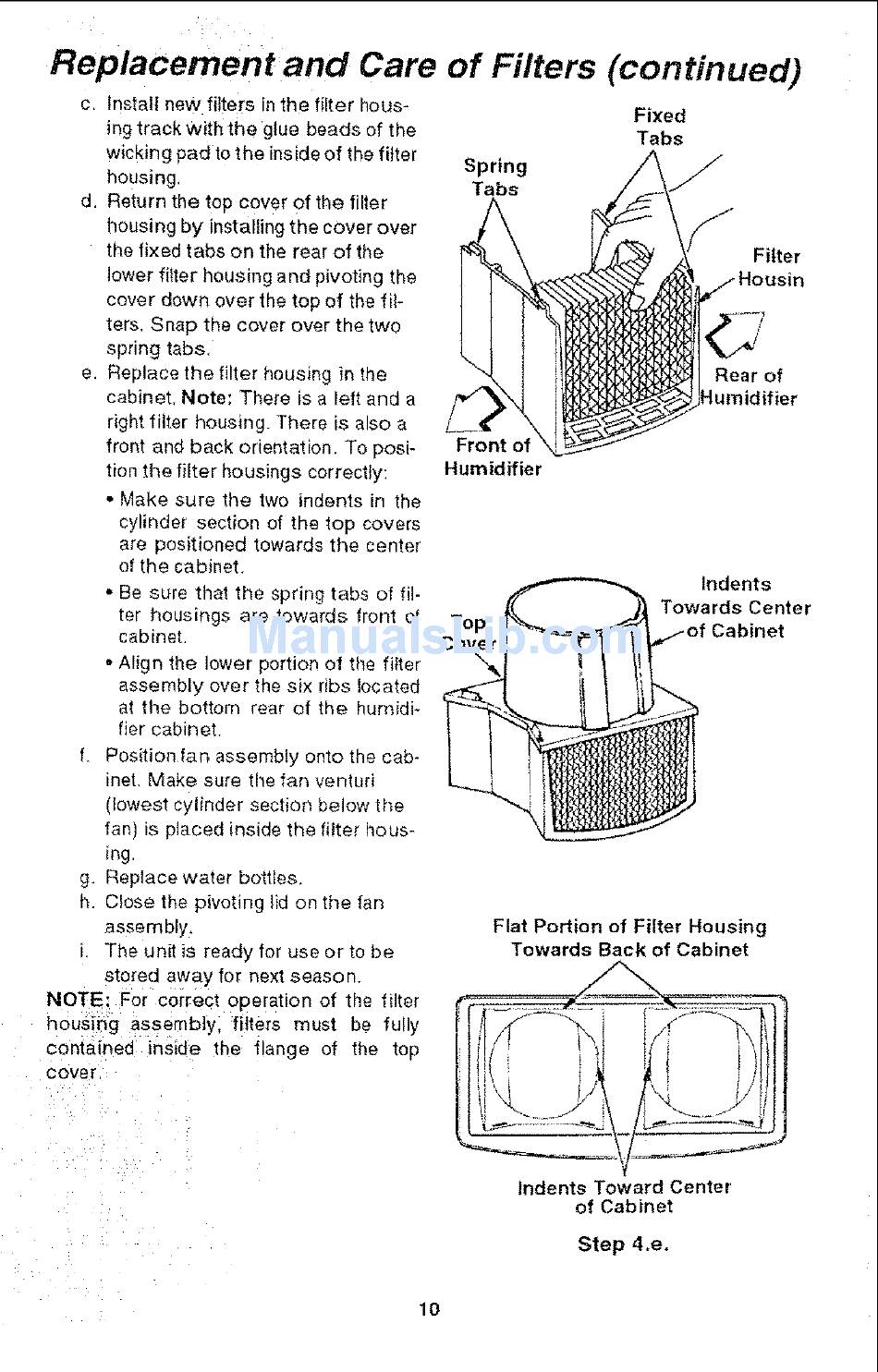

Replacement
and Care of Filters
(continued)
c. tnstali
new filters
in the filter hous-
ing track with the glue beads of the
wicking
pad to the inside of the filter
housing.
d. Return the top cover of the filter
housing
by installing
the cover over
the fixed tabs on the rear of the
lower filter housing
and pivoting
the
cover down over the top of the fil-
ters. Snap
the cover
over the two
spring tabs.
e. Replace
the filter
housing
in the
cabinet,
Note:
There
is a left and a
right filter housing.
There
is also a
front and back orientation.
To posi-
tion the filter
housings
correctly:
o Make sure
the two indents
in the
cylinder
section
of the top covers
are positioned
towards
the center
of the cabinet.
° Be sure that the spring tabs
of fil-
ter housings
are towards
front
of
cabinet.
• Align the lower
portion
of the filter
assembly
over
the six ribs located
at the bottom
rear of the humidi_
tier cabinet,
f. Position
fan assembly
onto the cab-
inet, Make
sure tile fan venturi
(_owest cylinder
section
below the
fan) is placed
inside
the filter hous-
ing.
g, Replace
water
bottles,
h. Close the pivoting
lid on the fan
assembly,
i, The unit is ready for use or to be
stored
away for next season.
NOTE:
For correct
operation
of the filter
housing
assembly,
filters
must
be fully
contained
insicte
the
flange
of
the
top
cover
Spring
Tabs
Front
of
Humidifier
Fixed
Tabs
Filter
/
Rear of
Top
Cove
\
Indents
Towards
Center
Flat Portion
of Filter
Housing
Towards
Back
of Cabinet
indents
Toward
Center
of Cabinet
Step 4.e.
10
