Kenmore QUIET COMFORT 758.144131 Owner's Manual

Whole house humidifier12 gallon output
Hide thumbs

Advertisement

Save this manual
for future
reference

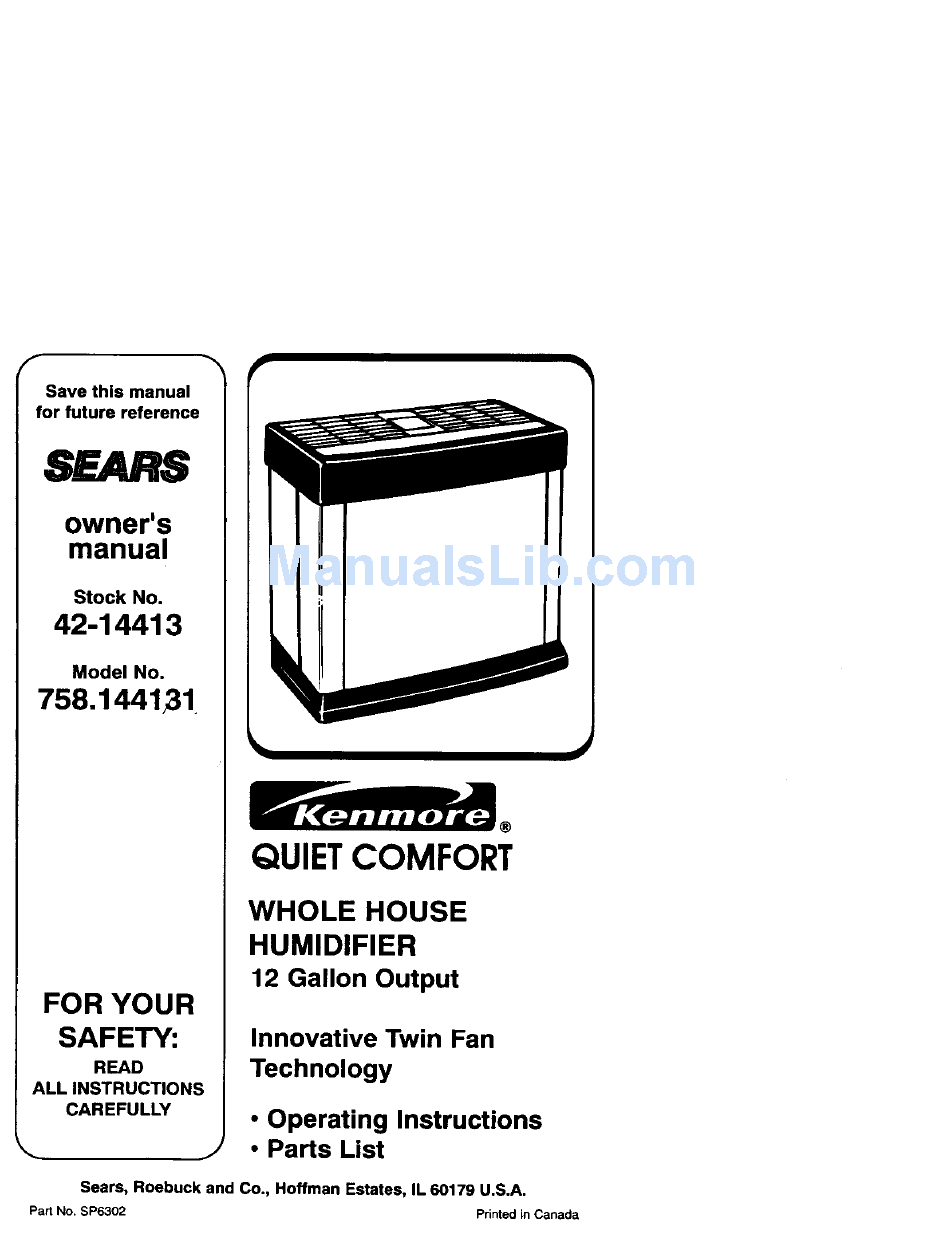

SEARS
owner's
manual
Stock No.
42-14413
Model No.
758.144131.
FOR YOUR
SAFETY:
READ
ALL INSTRUCTIONS
CAREFULLY
®
QUIETCOMFORT
WHOLE
HOUSE
HUMIDIFIER
12 Gallon Output
Innovative Twin Fan
Technology
J
• Operating
Instructions
• Parts List
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Part No. SP6302
Printed in Canada

Advertisement

Table of Contents
loading

  Related Manuals for Kenmore QUIET COMFORT 758.144131

  Summary of Contents for Kenmore QUIET COMFORT 758.144131

  • Page 1 QUIETCOMFORT WHOLE HUMIDIFIER 12 Gallon Output FOR YOUR SAFETY: Innovative Twin Fan Technology READ ALL INSTRUCTIONS CAREFULLY • Operating • Parts List Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. Part No. SP6302 ® HOUSE Instructions Printed in Canada...
  • Page 2: Table Of Contents

    FULL ONE YEAR WARRANTY f within one (1) year from the date of purchase, this humidifier fails due to a defect in materiel or workmanship, Sears will repair it, free of charge. If within two (2) years from the date of purchase, the motor falls due to defect in material will repair it free of charge.
  • Page 3: Know Your Humidifier

    Know Your Humidifier Controls Fill Light Top Filter Housing FIRers: Description Gallon OutputJ24 Hrs. Water Reservoir Capacity Sq. Ft. Coverage Fan Speeds Filters Fill Light Auto Humidistat Auto Shut Off Controls CUL Listed AHAM Certified Volts Hertz Amps Watts * Based on an area with average insulation and an 8 foot ceiling height.
  • Page 4: Humidifier Operations

    Humidifier Operations Your new Sears humidifier is designed to satisfy home humidity requirements through the principle of evaporation of water into the air. After water is added to the cabinet, the fil- ters begin to soak up the water and become totally saturated in approximately 30 minutes.
  • Page 5: Location Instructions

    If this is not appropriate the unit should be repositioned in another location, NOTE: Due to release of cool, moist air from humidifier, if is best to direct air away from home thermostat and hot air regis- ters. It is best to position humidifier next to an inside wall.
  • Page 6: Electrical Hook-Up

    Use recommended mixture of cold water and if necessary Sears Bacteriostat #42- 14900 only. Pour the water slowly from a bucket into the cabinet onto the splash guard. The water deflects off the splash guard and drops into the bottom of the cab- inet.
  • Page 7: Operating Humidifier Controls

    • FILL Manual Dryout At the end of the humidification season or if you do not plan to run the humidifier for one week or more, you can override the automatic shutoff function to completely dry the humidifier cabinet out.
  • Page 8: Using Your Humidifier

    2. Do not restrict airflow from entering or exiting the humidifier. 3. Use Sears recommended bacteriostat 42-14900 to retard bacteria growth that may cause odors and may be harmful to your health.
  • Page 9: Replacement And Care Of Filters

    Use Sears rec- ommended replacement filter 42-14912. All filters may be dnsed in deer water only, Take care not to damage paper. To replace...
  • Page 10: Replacement And Care Of Filters

    Close the pivoting lid on the fan assembly. e. The unit is ready for use or to be stored away for next season. Float /Retainer Top Filter Housing//.oat Front Filter Houslna Front of Humidifier (top view)
  • Page 11: Cleaning Your Humidifier

    EPA approved becterlostat, 42-14900 humidifier cleaner 42-14713, available at your local Sears store. NOTE: ff it is necessary to use approved bactedosfat, follow directions correctly. The cabinet of the wh_ !e house humidifier will hold 5 gallons. Step 1...
  • Page 12 Cleaning of Humidifier Bi-Weekly Maintenance Removing Scale 1. Fill the humidifier cabinet with one 8 oz. cup of undiluted white vinegar. Let solution stay 20 minutes. 2. Clean all interior surfaces with a soft brush. Dampen a soft cloth with undi- luted white vinegar and wipe out the cabinet to remove scale.
  • Page 13: Troubleshooting

    • A small amount of water will remain in cabinet after fill light comes on. • Change to fresh new filters • Deflect fill water off the splash guard • Do not overfillpast "Full" labels in cabinet Bacteriostat available from Sears products designed for...
  • Page 15 Cord w/Plug Retainer Micro Switch 826367 * Screw, Pan Hd. Type AB #6 x 3/8 STD610603 SP6302 Owner's Manual (Not Illustrated) 1- Stock Item - May Be Secured Through Sears Retail and Catalogue Stores. 1.o = o == _< o"...
  • Page 16 For in-home major brand repair service Call 24 hours a day, 7 days a week 1-800-4-REPAIR (1-800-473-7247) For the locationof a Sears Repair Service Centerin your area Call 24 hoursa day, 7 days a week 1-800-488-1222 For informationon purchasing a Sears...
