Dial ISDN
Activity
Drop B1
Drop B2
Broadband Access Mode/Status Display the broadband access mode and status. If the
WAN IP Address
Dial PPPoE or PPPoA
Drop PPPoE or PPTP
4 . 7 . 2 T r i g g e r
4 . 7 . 2 T r i g g e r

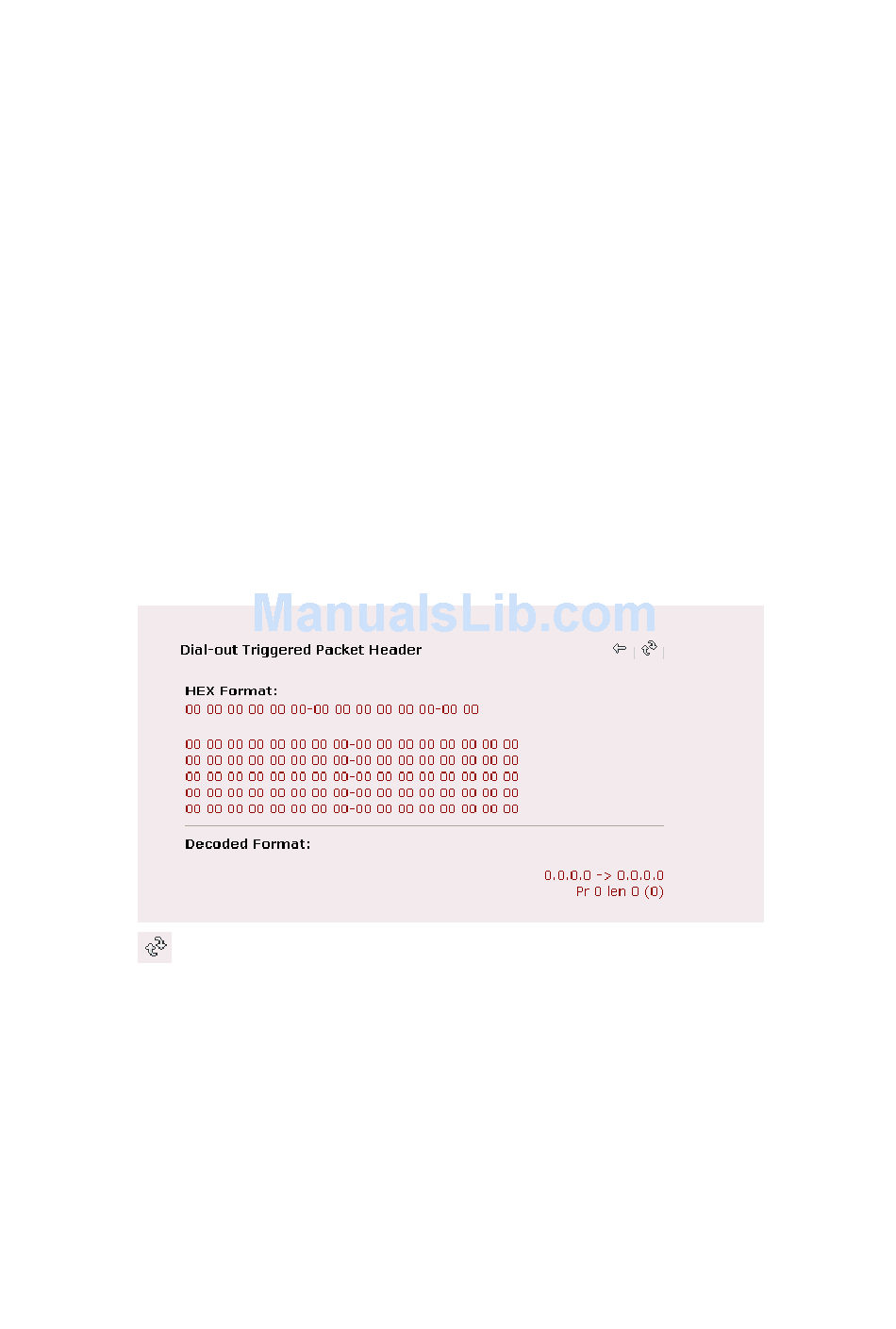

Triggered Dial-out Packet Header shows the last IP packet header that triggered the router to
dial out. Click Triggered Dial-out Packet Header to view the triggered dial-out packet
header.
4 . 7 . 3 V i e w i n g
4 . 7 . 3 V i e w i n g
Click View Routing Table to view the routing table of your Vigor router. The table provides
current IP routing information held in the router.
132
e d D i a l - o u t P a c k
e d D i a l - o u t P a c k
R o u t i n g T a b l e
R o u t i n g T a b l e
Clicking here causes the router to dial to the preset ISP.
Click Internet Access Setup > Dial to a Single ISP to
configure dial-up settings.
Display the connection name for each B channel. If the B
channel is idle, it will show Idle.
Click it to disconnect the B1 channel.
Click it to disconnect the B2 channel.
broadband connection is active, it will show Internet
access mode is enabled. If the connection is idle, it
will show "---".
The WAN IP address for the active connection.
Click it to force the router to establish a PPPoE or PPPoA
connection.
Click it to force the router to disconnect the current active
PPPoE or PPTP connection.
e t H e a d e r
e t H e a d e r
Click it to reload the page.
