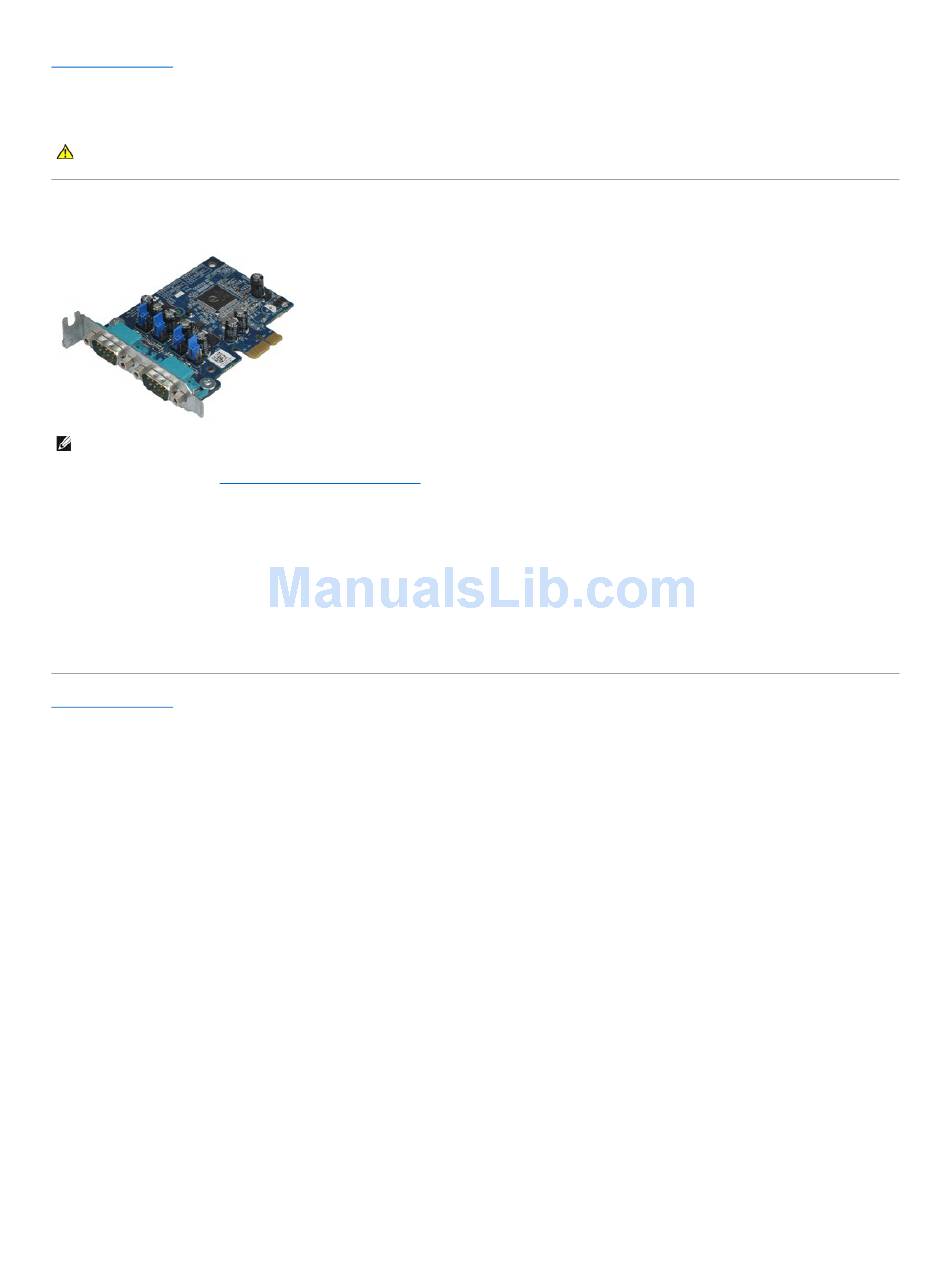

Expansion Card
Dell™ OptiPlex™ XE Service Manual—Small Form Factor
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Removing the Expansion Card

NOTE: You may need to install Adobe® Flash® Player from Adobe.com in order to view the illustrations below.
1. Follow the procedures in Before Working Inside Your
2. Rotate the release tab on the card-retention latch upward.
3. Pull the release lever from the card and lift the card up and out of its connector on the system board.
Replacing the Expansion Card
To replace the expansion card, perform the above steps in reverse order.
Back to Contents Page
Computer.
