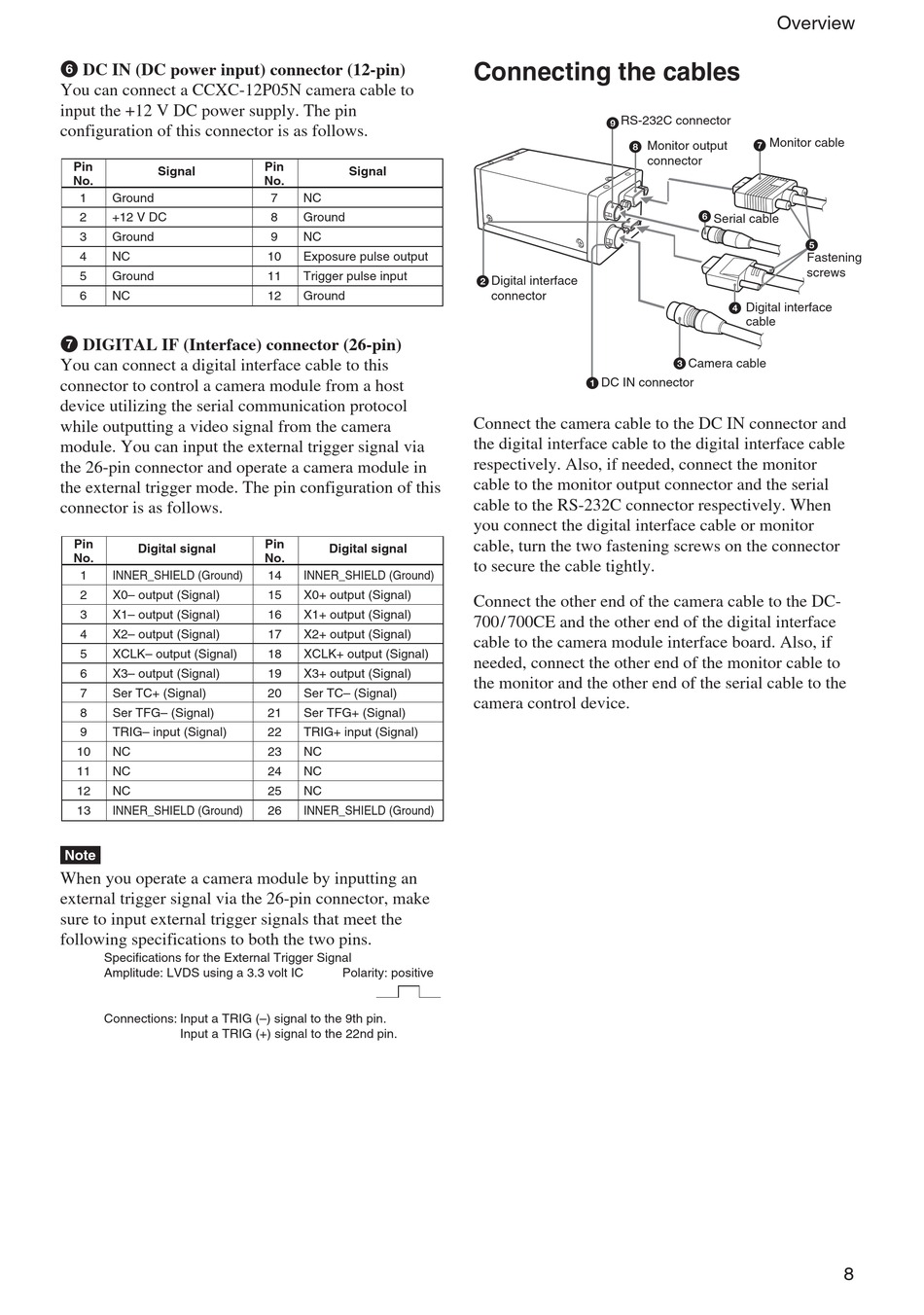

6 DC IN (DC power input) connector (12-pin)
You can connect a CCXC-12P05N camera cable to
input the +12 V DC power supply. The pin
configuration of this connector is as follows.
Pin
Signal
No.
1
Ground
2
+12 V DC
3
Ground
4
NC
5
Ground
6
NC
7 DIGITAL IF (Interface) connector (26-pin)
You can connect a digital interface cable to this
connector to control a camera module from a host
device utilizing the serial communication protocol
while outputting a video signal from the camera
module. You can input the external trigger signal via
the 26-pin connector and operate a camera module in
the external trigger mode. The pin configuration of this
connector is as follows.
Pin
Digital signal
No.
1
INNER_SHIELD (Ground)
2
X0– output (Signal)
3
X1– output (Signal)
4
X2– output (Signal)
5
XCLK– output (Signal)
6
X3– output (Signal)
7
Ser TC+ (Signal)
8
Ser TFG– (Signal)
9
TRIG– input (Signal)
10
NC
11
NC
12
NC
13
INNER_SHIELD (Ground)
Note
When you operate a camera module by inputting an
external trigger signal via the 26-pin connector, make
sure to input external trigger signals that meet the
following specifications to both the two pins.
Specifications for the External Trigger Signal
Amplitude: LVDS using a 3.3 volt IC
Connections: Input a TRIG (–) signal to the 9th pin.
Input a TRIG (+) signal to the 22nd pin.
Pin
Signal
No.
7
NC
8
Ground
9
NC
10
Exposure pulse output
11
Trigger pulse input
12
Ground
Pin
Digital signal
No.
14
INNER_SHIELD (Ground)
15
X0+ output (Signal)
16
X1+ output (Signal)
17
X2+ output (Signal)
18
XCLK+ output (Signal)
19
X3+ output (Signal)
20
Ser TC– (Signal)
21
Ser TFG+ (Signal)
22
TRIG+ input (Signal)
23
NC
24
NC
25
NC
26
INNER_SHIELD (Ground)
Polarity: positive

Connecting the cables

RS-232C connector
9
8
Digital interface
2
connector
1 DC IN connector
Connect the camera cable to the DC IN connector and
the digital interface cable to the digital interface cable
respectively. Also, if needed, connect the monitor
cable to the monitor output connector and the serial
cable to the RS-232C connector respectively. When
you connect the digital interface cable or monitor
cable, turn the two fastening screws on the connector
to secure the cable tightly.
Connect the other end of the camera cable to the DC-
700/ 700CE and the other end of the digital interface
cable to the camera module interface board. Also, if
needed, connect the other end of the monitor cable to
the monitor and the other end of the serial cable to the
camera control device.
Overview
Monitor cable
Monitor output
7
connector
6
Serial cable
5
Fastening
screws
Digital interface
4
cable
Camera cable
3
8
