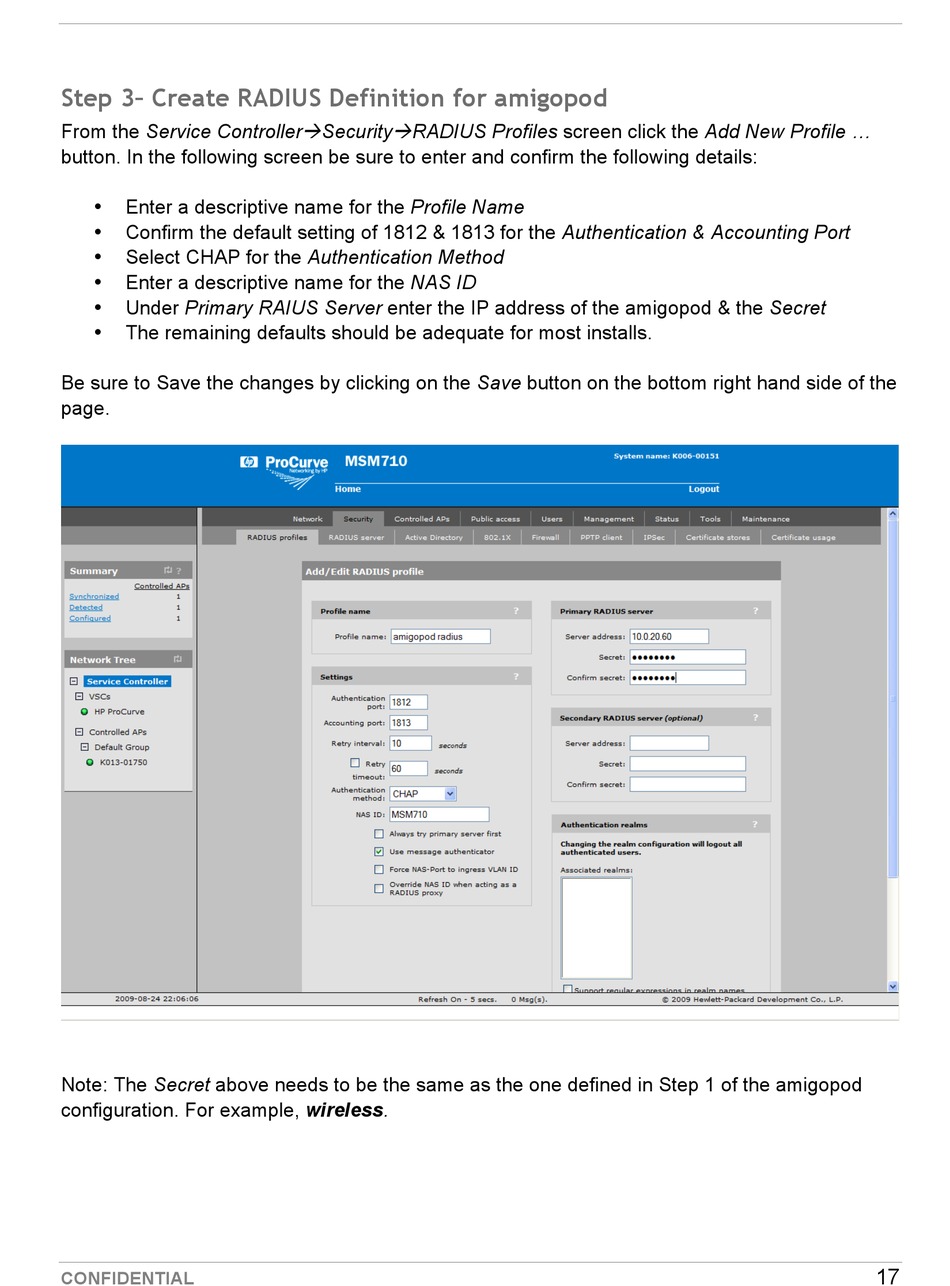

Step 3– Create RADIUS Definition for amigopod
From the Service Controller Security RADIUS Profiles screen click the Add New Profile ...
button. In the following screen be sure to enter and confirm the following details:
Enter a descriptive name for the Profile Name
•
Confirm the default setting of 1812 & 1813 for the Authentication & Accounting Port
•
Select CHAP for the Authentication Method
•
Enter a descriptive name for the NAS ID
•
Under Primary RAIUS Server enter the IP address of the amigopod & the Secret
•
The remaining defaults should be adequate for most installs.
•
Be sure to Save the changes by clicking on the Save button on the bottom right hand side of the
page.
Note: The Secret above needs to be the same as the one defined in Step 1 of the amigopod
configuration. For example, wireless.
CONFIDENTIAL
17
