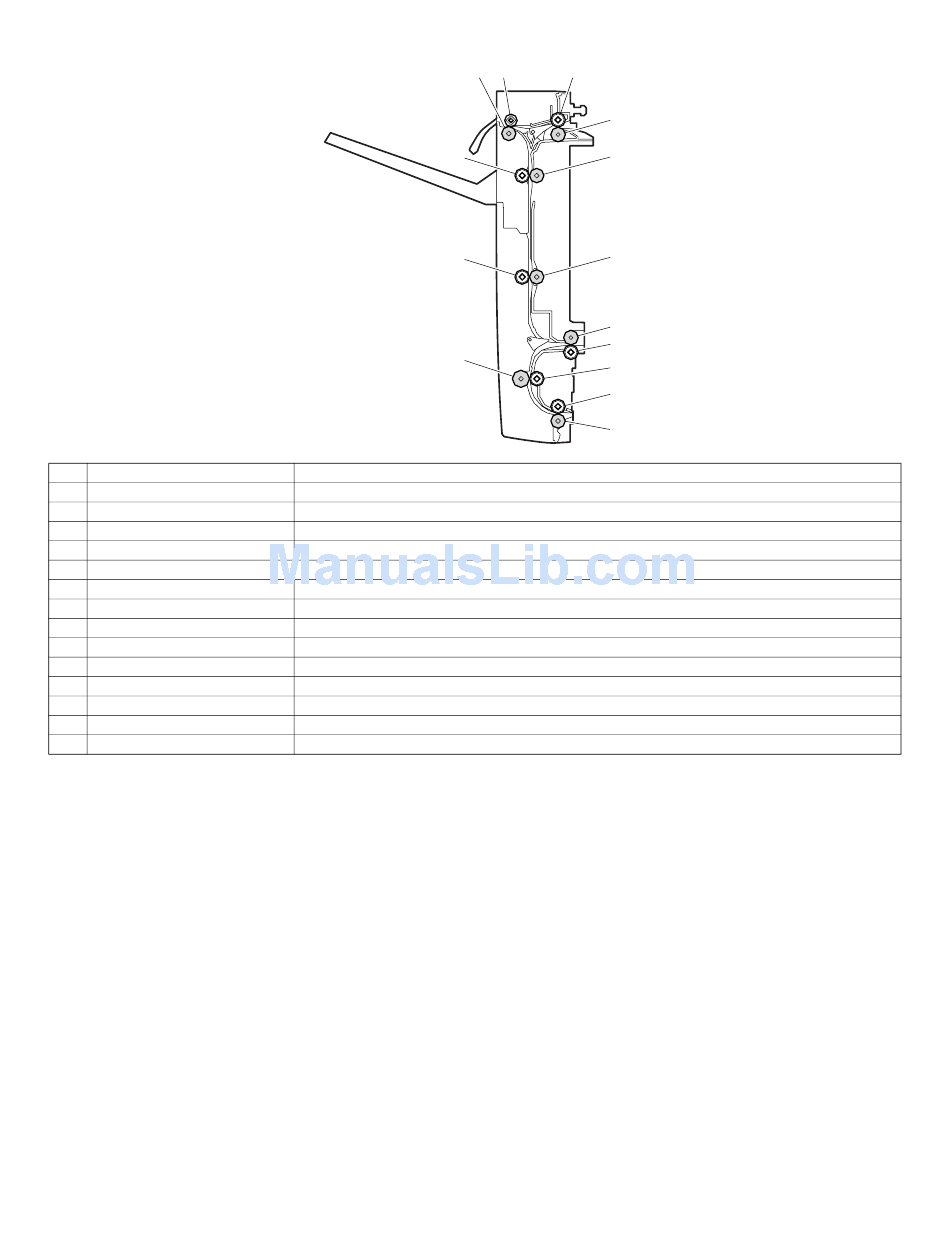

Cross-section diagram
No.
Name
1
Delivery roller
2
Idle roller
3
Idle roller
4
Paper feed roller
5
Upper reverse roller
6
Upper transport roller
7
Lower reverse roller
8
Idle roller
9
Idle roller
10
Idle roller
11
Paper exit roller
12
Lower transport roller
13
Idle roller
14
Idle roller
1
14
13
12
Discharges paper to the tray, or transports paper to the finisher.
Applies a pressure to the delivery roller to transport and discharge paper.
Applies a pressure to the paper feed roller to transport paper.
Transports paper being transported from the main unit to the paper-out and reverse bypass direction.
Transports paper to the paper-out and reverse bypass direction.
Transports paper to the paper-out and reverse bypass direction.
Reverses paper and transports it to ADU.
Applies a pressure to the lower reverse roller to transport paper.
Applies a pressure to the lower transport roller to transport paper.
Applies a pressure to the paper exit roller to transport paper.
Transports paper to ADU.
Transports paper to ADU.
Applies a pressure to the upper transport roller to transport paper.
Applies a pressure to the upper reverse roller to transport paper.
AR-RB1 INTERIOR CONSTRUCTION 3 - 2
2
3
4
5
6
7
8
9
10
11
Function/operation
