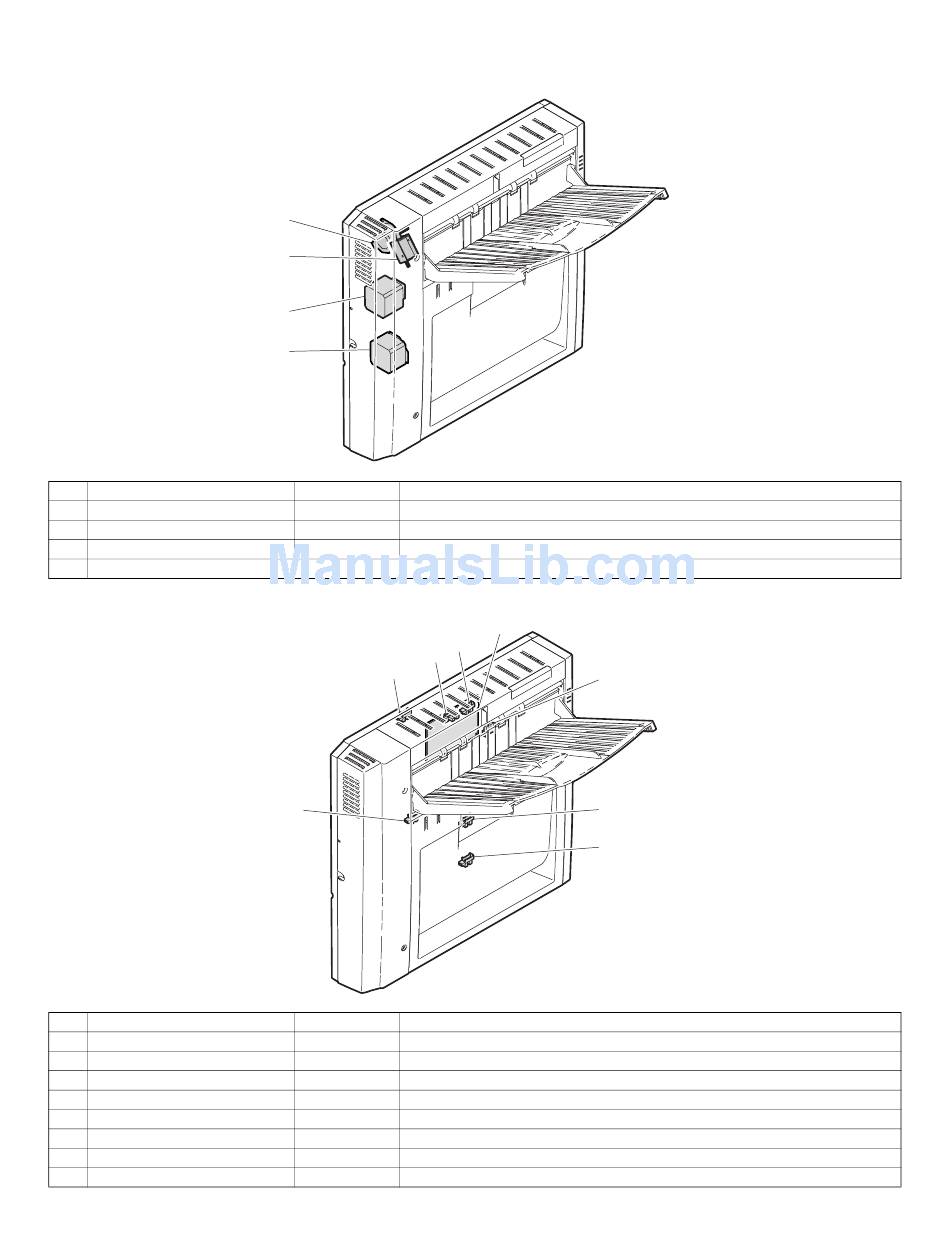

[3] INTERIOR CONSTRUCTION

Motors and solenoid
No. Name
1 Paper feed motor
2 Gate solenoid
3 Upper turnover motor
4 Lower turnover motor
PWB and sensors
No. Name
1 Door open/closed detector 1
2 Paper delivery sensor
3 Full capacity detection sensor
4 BY drive PWB
5 Transport sensor 1
6 Reverse section detection sensor
7 Transport sensor 1
8 Door open/closed detector 2
1
2
3
4
Abbreviation
BIM Transports paper to the paper feed section
BGSOL Switches the gate for straight delivery and reverse delivery
BRM Paper transport in upper section
BTM Paper transport in lower section
3
2
1
8
Abbreviation
BDD1 Detects open/closed status of upper door
BPOD Detects discharged paper
BPFD Detects full capacity status in paper tray
BY drive PWB INVERTER drive and controller
BPPD1 Detects transport of paper
BPRD Detects presence of paper in the reverse section
BPPD2 Detects transport of paper
BDD2 Detects open/closed status of lower door
AR-RB1 INTERIOR CONSTRUCTION 3 - 1
Function/operation
4
5
6
7
Function/operation
