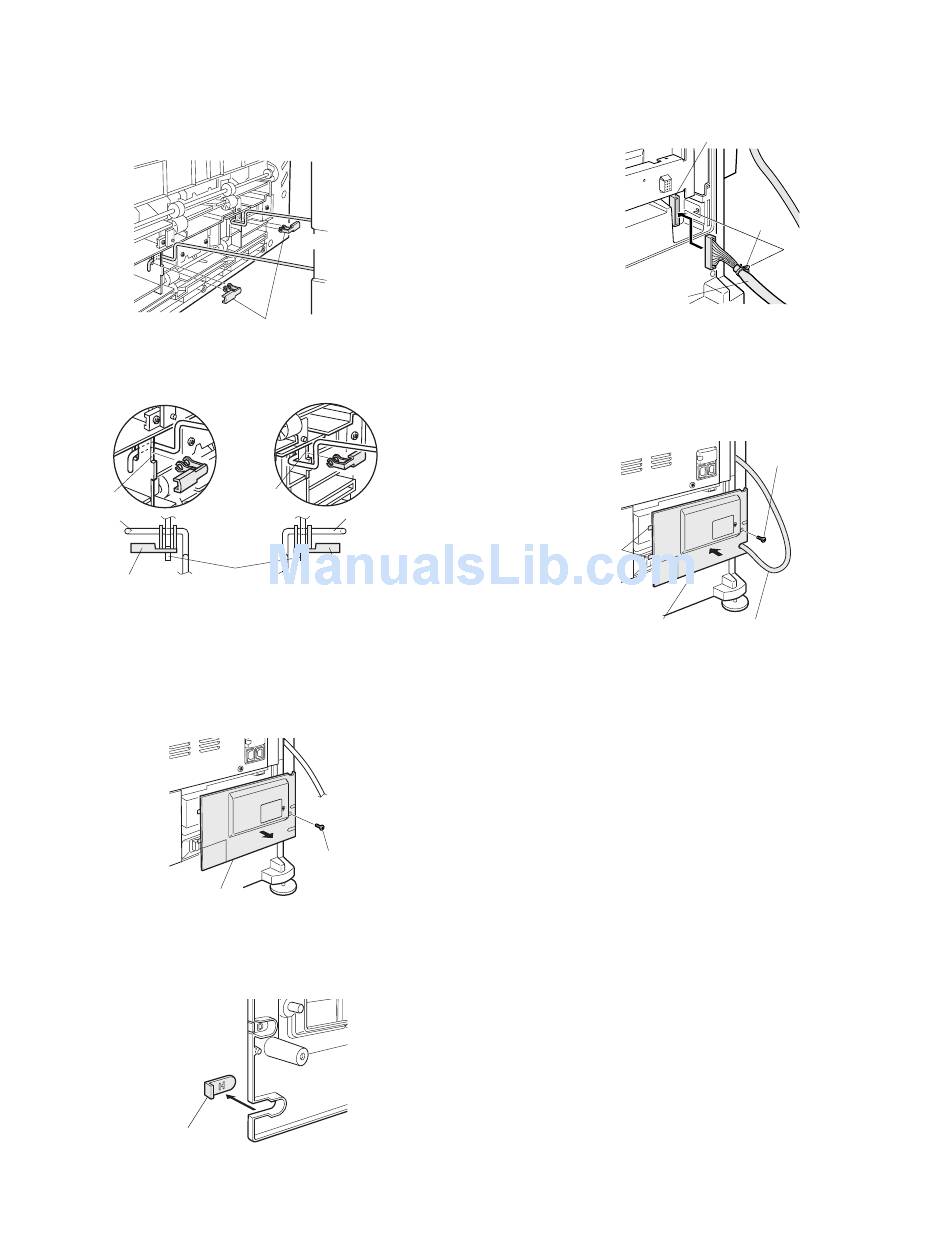

3) Attach the transport guide to the duplex bypass/inverter unit and
insert the two transport guide holders into the two transport guides
respectively. At this time, ensure that the transport guide holders
are secured at the notch positions.
4) After checking that the transport guide is aligned with the guide of
the stand, close the left cover of the main unit securely.
Front side
Front side
Notch
Transport guide
Notches
Transport guide holder
7. Connect the harness of the duplex bypass/
inverter unit.
1) Remove the screw from the power supply cover on the rear side of
the optional stand and then remove the power supply cover.
Power supply cover
2) Cut out the portion (indicated with H) of the removed power supply
cover shown in the illustration.
Cut-out portion
Rear side
Transport guide holders
Rear side
Notch
Transport guide
Transport guide holder
Screw
AR-RB1 UNPACKING AND INSTALLATION 2 - 4
3) Connect the relay harness of the duplex bypass/inverter unit to the
connector of the optional stand.
Then, insert the snap band into the mounting hole shown in the
illustration to secure the relay harness.
Relay harness
4) Pass the relay harness through the cut out hole, hang the two
pawls of the power supply cover on the rear cabinet, and attach the
cover with the screw.
Installation of AR-RB1 is now complete.
Pawls
Power supply cover
Connector
Snap band
Screw
Relay harness
