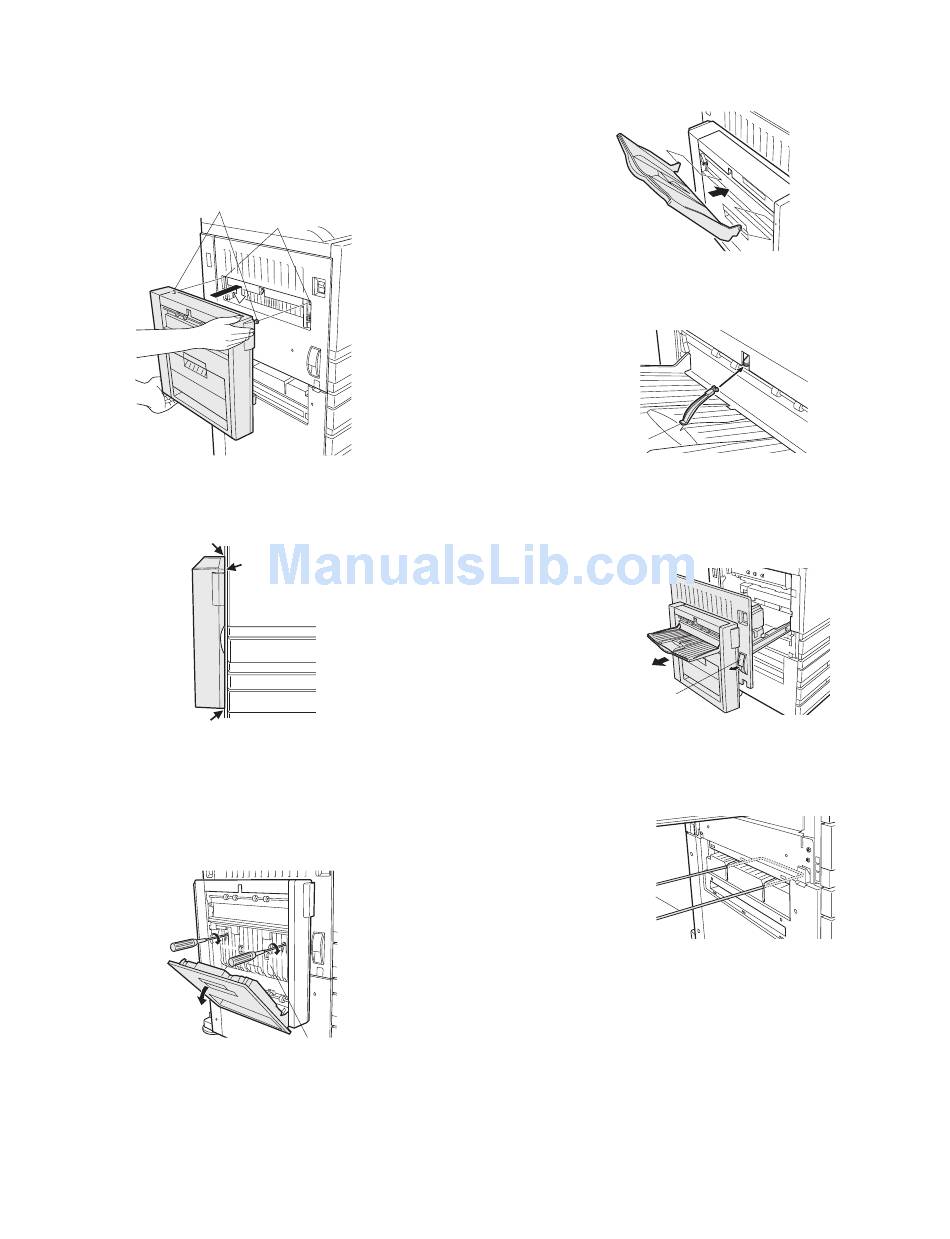

4. Attach the duplex bypass/inverter unit to the main
unit.
1) Close the left cover.
2) Hold the duplex bypass/inverter unit as shown in the illustration
and hang the two positioning bosses at the upper part in the two
positioning holes on the left cover of the main unit.
At this time, check that the two positioning bosses are hung
securely in the two positioning holes of the main unit.
Positioning bosses
3) Ensure that there is no clearance between the main unit and the
duplex bypass.
5. Secure the duplex bypass/inverter unit.
1) Close the cover of the duplex bypass/inverter unit and tighten the
two built-in screws to secure the duplex bypass to the main unit.
At this time, take care not to damage the transport surface with the
tip of a screwdriver.
Positioning holes
Transport surface
AR-RB1 UNPACKING AND INSTALLATION 2 - 3
2) Close the cover of the duplex bypass/inverter unit and reattach the
exit tray that has been removed in step 2<1> in the raised position
as shown in the illustration.
3) Insert the supplied actuator into the duplex bypass.
Actuator
6. Attach the transport guide.
1) Pull the lock release lever to pull out the left cover.
Lock release lever
2) Insert the transport guide into the paper input section (upper
groove) of the stand.
Transport guide
