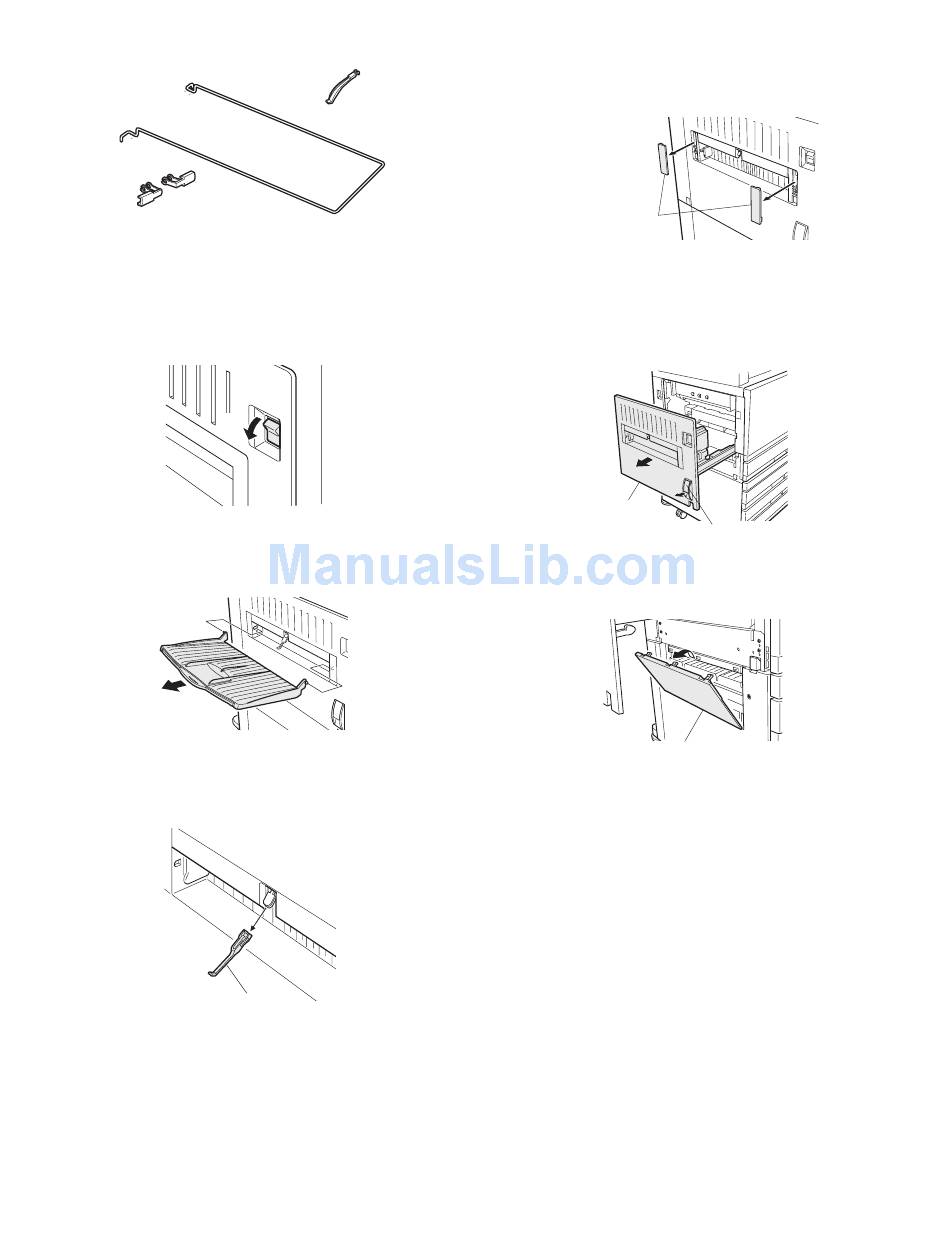

Parts included
Transport guide: 1 pc.
Transport guide holder: 2 pcs.
1. Turn off the main switch of the main unit.
1) Turn the main switch located on the left side of the main unit to the
"OFF" position.
2) Then remove the power plug of the main unit from the outlet.
2. Remove the actuator.
1) If the exit tray is installed to the main unit, remove it.
2) While holding the base of the exit actuator of the main unit with one
hand, pull the end of the actuator with the other hand to remove
the actuator.
Exit actuator
Actuator: 1 pc.
"OFF"
AR-RB1 UNPACKING AND INSTALLATION 2 - 2
3. Remove the paper output section covers.
1) Pull the centers of the two paper output section covers on the left
side of the main unit to remove them.
Paper output
section covers
In the case of AR-D17/D18:
1) Pull the lock release lever on the left side of the main unit to pull
out the left cover until it stops.
Left cover
2) Pull the upper part of the paper input section cover on the left side
of the optional stand to remove the paper input section cover.
Paper input section cover
Lock release lever
