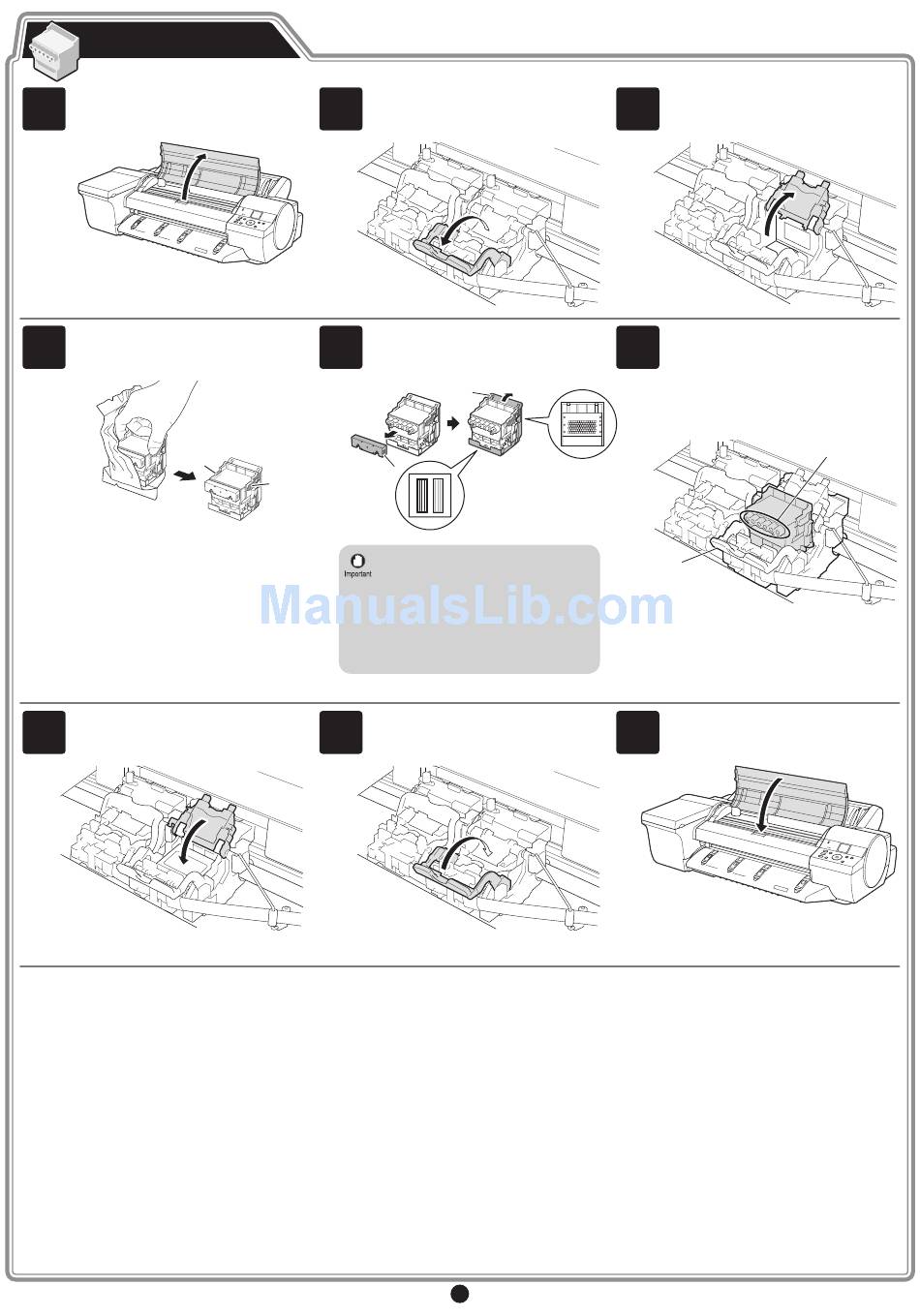

Install the Printheads
1
When the display screen shows Open
Upper Cover, open the top cover.
4
Hold the printhead by the grips (a) as you
remove it from the pouch.
a
7
Pull the printhead fixer cover down toward
the front to lock the printhead in place.
Install both printheads.
2
Pull the printhead fixer lever forward all
the way to open it completely.
5
Remove the orange protective part (a). To
remove the other orange protective part
(b), push the grip (c) as you remove it.
a
a
• Never touch the parts covered by the
protective parts. Doing so may damage
the printhead and affect printing quality.
• The printhead contains ink, so be
careful not to spill it once the protective
parts are removed.
• Do not reattach the protective parts
after removing them. Dispose of these
materials according to local regulations.
.
8
Press the printhead fixer lever inwards
until it clicks into place.
c
b
4
3
Lift the printhead fixer cover to open it
fully.
6
Insert the printhead into the carriage (b)
with the ink holes (a) up and facing the
front of the printer as shown in the figure.
Carefully push the printhead firmly into
the carriage (b), ensuring that the parts
that were covered by the protective parts
do not touch the carriage (b).
b
9
Repeat steps 2 to 8 to install the second
printhead set.
Close the top cover.
