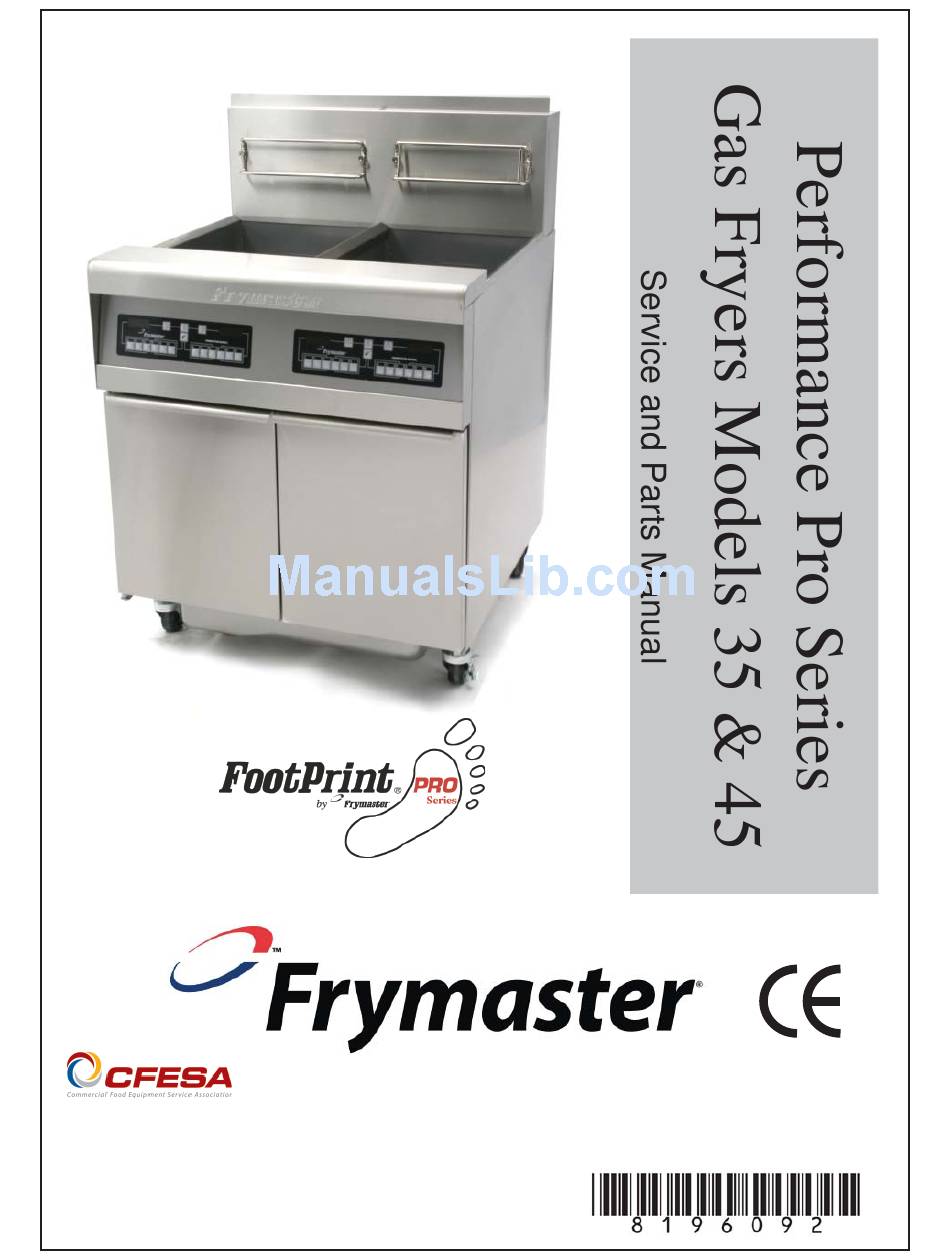

Frymaster, a member of the Commercial Food Equipment Service Association, recommends
using CFESA Certifi ed Technicians.
24-Hour Service Hotline 1-800-551-8633
MARCH 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PERFORMANCE PRO SERIES 45 and is the answer not in the manual?

Questions and answers

Related Manuals for Frymaster PERFORMANCE PRO SERIES 45

Summary of Contents for Frymaster PERFORMANCE PRO SERIES 45

  • Page 1 Frymaster, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certifi ed Technicians. 24-Hour Service Hotline 1-800-551-8633 MARCH 2011...
  • Page 2 FROM FRYMASTER AND DEAN, OR ANY OF ITS AUTHORIZED SERVICE CENTERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER AND DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.
  • Page 3 The front ledge of the fryer is not a step! Do not stand on the fryer. Serious injury can result from slips or contact with the hot oil.

  • Page 4: Table Of Contents

    1.1.2 Electronic Ignition ...1-1 1.1.3 Controller Options ...1-2 1.1.4 Thermostats and Temperature Probes ...1-2 1.2 Moving the Fryer for Servicing ...1-2 1.3 Diagnostic Procedures ...1-3 1.3.1 Cleaning the Gas Valve Vent Tube ...1-3 1.3.2 Checking the Burner Manifold Gas Pressure ...1-3 1.3.3 Adjusting the Pilot Flame ...1-5...
  • Page 5 CHAPTER 2: Parts List 2.1 Accessories ...2-1 2.2 Basket Lift and Associated Parts ...2-2 2.3 Cabinetry ...2-4 2.3.1 FPP/FMP Model Cabinetry ...2-4 2.3.2 PMJ (Non-fi lter) Model Cabinetry ...2-6 2.4 Casters, Legs, and Associated Hardware ...2-8 2.5 Component Boxes ...2-9 2.6 Control Panel Assemblies, Flue Caps, and Related Items ...2-11 2.7 Controller Assemblies ...2-13 2.8 Door Assembly...2-15...

  • Page 6: Performance Pro Series Gas Fryers Models 35

    The main gas valve will not open if the pilot valve is not open. Light the pilot fl ame manually using a match or the optional built-in piezo ignitor after installing the fryer. 1.1.2 Electronic Ignition In units confi...

  • Page 7: Controller Options

    These units have no interface board. When the melt cycle switch is placed in the ON position, the fryer stays in the melt cycle mode until the switch is manually placed in the OFF position, even if the oil is at setpoint temperature. In units equipped with thermostat access doors, the temperature control knob is located behind the hinged front panel.

  • Page 8: Diagnostic Procedures

    After servicing is complete: 5. Return the fryer to its original location, reconnect the unit to the gas supply, and open the gas supply valve. Be sure to reattach all restraining devices and plug in all electrical cords. 6. Refi ll the fryer with oil.
  • Page 9 35-Series Non-CE Standard Burner Manifold Gas Pressures Natural Propane 35-Series CE Standard Burner Manifold Gas Pressures Natural Gas Lacq (G20) under 20 mbar Natural Gas Gronigue* (G25) under 25 mbar Natural Gas Gronigue* (G20) under 20 mbar Propane (G31) under 37 or 50 mbar * Belgian G25 and G20 = 9.0 mbar 8.

  • Page 10: Adjusting The Pilot Flame

    3. Insert a thermometer or pyrometer into the frypot, about 1-inch from the thermostat. 4. Open the thermostat access door and set the thermostat on the fryer to 325°F (162°C). 5. When oil reaches 325°F (162°C), allow the burners to cycle on and off three times.
  • Page 11 1. Fill the frypot to the lower OIL-LEVEL line with cooking oil. If using solid shortening, pre-melt it before starting the calibration procedure. 2. Ensure the fryer power switch is in the OFF position, and light the pilot. (Refer to Chapter 3 of the Installation and Operation manual for detailed lighting instructions.) 3.

  • Page 12: Testing The Temperature Probe

    1.4 Replacing Fryer Components 1.4.1 Replacing a Controller or Computer 1. Disconnect the fryer from the electrical power supply. 2. Slide the metal bezel up to disengage the lower tabs. Then, slide the bezel down to disengage the upper tabs.

  • Page 13: Replacing The Operating Thermostat In Units With Thermostat Control Panels

    10. Reverse Steps 1-8 to install the replacement thermostat. 1.4.3 Replacing the Operating Thermostat in Units with Thermostat Access Doors 1. Disconnect the fryer from the electrical power supply. Turn off the gas and disconnect the fryer. 2. Drain the frypot.

  • Page 14: Replacing The Temperature Probe

    3. Remove the thermostat knob and/or control panel as instructed in Section 1.4.2 or 1.4.3. 4. Disconnect the high-limit thermostat leads from the gas valve pilot coil. 5. Unscrew the high-limit thermostat from the fryer and remove. 6. Apply Loctite™ PST56765 thread sealant or equivalent to the threads of the replacement high-limit thermostat.

  • Page 15: Replacing The Heat Mode Indicator Light In Fryers With Thermostat Controls

    6. Unscrew the high-limit thermostat from the fryer and remove it. 7. Attach the appropriate terminals (instructions furnished in the replacement kit) to the thermostat leads. 8. Apply Loctite™ PST56765 thread sealant or equivalent to the threads of the replacement high-limit thermostat.

  • Page 16: Replacing Burner Ceramic Targets

    1.4.9 Replacing Burner Ceramic Targets 1. Disconnect the fryer from the electrical power supply. Turn off the gas and disconnect the fryer. 2. Drain the frypot or remove the handle from the drain valve. 3. Remove the round drain sections as necessary to expose the burners and heat shield.

  • Page 17: Replacing The Pilot Assembly Or Thermopile

    Steps 3-8 in Section 1.4.3. NOTE: If the fryer is confi gured with a melt cycle, the thermostat leads will be connected to the PC board rather than to the terminal block and gas valve. Disconnect the leads from the PC board if this is the case.
  • Page 18 Remove the screws in the top and bottom holes of each brace of the control panel that secure it to the fryer. Pull the control panel straight out of the fryer frame. It may require a rubber mallet to loosen it.

  • Page 19: Replacing The Pump/Motor

    fi tting, allowing any residual oil to drain into the container. 4. At the rear of the fryer, unplug the left connector (as viewed from the rear of the fryer) from the transformer box. Using a pin pusher, push the pump solenoid valve wires from Pins 7 and 9.

  • Page 20: Typical Problems

    Verify that the quick disconnect hose is properly connected, the fryer is plugged in, the main gas supply valve is open, and the circuit breaker for the fryer electrical supply is not tripped.
  • Page 21 If the fryer is receiving gas and electrical power, the next most likely cause of ignition failure is a problem in the 24 VAC circuit of the pilot system. If the fryer is equipped with a drain valve for fi ltration purposes, check the drain valve to verify that it is fully closed.
  • Page 22 Other causes of popping are more ambiguous and may have two or more possible causes to consider. If the fryer’s gas and air supplies are okay, it is likely that the cause of the popping is one of the electrical components.

  • Page 23: Improper Temperature Control

    (in fryers equipped with other types of controllers). Depending upon the specifi c confi guration of the fryer, it may also include an interface board and controller. Problems with improper temperature control can be categorized into those issues concerning melt cycle malfunctions and those concerning a failure to control at setpoint.
  • Page 24 “9” will provide the highest sensitivity or most change. The correct sensitivity for any product is based on the type of product, its density, the setpoint temperature, and the customer’s own requirements. A generic sensitivity chart is located on Page 1-5 of the Frymaster Fryer Controllers manual (P/N 819-5916).

  • Page 25: Filtration Malfunction

    Filtration Malfunction The majority of fi ltration malfunctions arise from operator error. One of the most common errors is placing the fi lter paper on the bottom of the fi lter pan rather than over the fi lter screen. Inspect the fi lter paper to ensure that it is correctly sized and placed. Incorrectly sized or installed fi lter paper will allow particles and sediment to pass through the fi...
  • Page 26 Manual (Push-Button) Modular Basket Lift Simplified Schematic 2-Pole Mech Timer Upper Limit Microswitch 1 or 5 4 or 6 Lower Limit Microswitch When the timer button is pushed, the lower circuit is activated. The basket lift lowers, closing the normally open upper microswitch. The motor loses power when the basket lift rod moves down and opens the lower, normally closed microswitch.

  • Page 27: Leakage

    If oil coats the sides or ends of the frypot, the most likely cause is spillage over the top of the frypot. There may also be oil pooled on the fl oor below the fryer. This is not necessarily a sign that the frypot is leaking.
  • Page 28 • electronics failure. Binds and Jams Noisy, jerky, or erratic movement of the lifts is usually due to lack of lubrication of the rods and their bushings. Apply a light coat of Lubriplate™ or similar lightweight white grease to the rod and bushings to correct the problem.

  • Page 29: Interpretation Of Analog Controller Lights

    • If the fryer oil temperature is below 180°F (82°C), the lights indicate that the unit is operating normally. • If the fryer oil temperature is above 180°F (82°C) and the heat light continues to cycle as if in the melt cycle, this may indicate a defective probe circuit or low incoming 12 VAC to the controller.

  • Page 30: Troubleshooting Guides

    1.7 Troubleshooting Guides The following are only guides. They are provided to assist the technician or service professional in the isolation of failures in components and wiring on the fryer. 1.7.1 Troubleshooting the 24 VAC Circuit Troubleshooting the 24 VAC Circuit: Analog Controller Before troubleshooting, verify that the drain valve(s) is fully closed and move the power switch into the ON position.

  • Page 31: Troubleshooting The 24 Vac Circuit: Standing Pilot (Computer Controller)

    • If 24 VAC is present all the way through to the high-limit, go to Troubleshooting the Gas Valve, Section 1.7.2. 1.7.2 Troubleshooting the Gas Valve Before troubleshooting, verify that the gas main street valve is open and the fryer gasline cutoff valve is open. Place the gas valve in the ON position.

  • Page 32: Troubleshooting The Temperature Probe

    1.7.4 Troubleshooting the Temperature Probe Follow these guidelines to troubleshoot the temperature probe: 1. While it is still in the frypot, inspect the probe body for damage. Inspect the leads for fraying, burning, breaks, or kinks. If the probe is bent, dented, or cracked, or if the leads are damaged, replace the probe.

  • Page 33: Wiring Diagrams

    1.8 Wiring Diagrams 1.8.1 Standing Pilot 1-28...

  • Page 34: Electronic Ignition

    1.8.2 Electronic Ignition 1-29...

  • Page 35: Non-Computer Controlled

    1.8.3 Non-Computer Controlled Fryer 1-30...

  • Page 36: Electronic Ignition

    1.8.4 Electronic Ignition 1-31...

  • Page 37: Filter Box

    1.8.5 Filter Box 1-32...

  • Page 38: Modular Basket Lift 100/120V

    1.8.6 Modular Basket Lift 100/120V 1-33...

  • Page 39: Modular Basket Lift 208/250V

    1.8.7 Modular Basket Lift 208/250V 12 - - - - - 7 1-34...

  • Page 40: Chapter 2: Parts List

    Cover, Frypot or Holding Station, Full-vat 806-3232 Cover, Frypot or Holding Station, Dual-vat 826-0993SP Handle Kit, Frypot Cover 826-1351 Nut Retainer, ¼-20 Nutsert (pkg. of 10) 803-0197 Fryer Friend (Clean-out Rod), 27” 803-0209 Brush, Frypot 803-0278 Brush, L-Shaped 823-3660 Crumb Scoop 823-5936...

  • Page 41: Basket Lift And Associated Parts

    2.2 Basket Lift and Associated Parts...
  • Page 42 ITEM PART # 910-4776 Enclosure, Stainless Steel 900-4776 Enclosure, Cold-rolled Steel 826-1991 Kit, Cold-rolled Steel Enclosure (with 12 screws) 823-7062 Basket Lift Arm, Left 823-7064 Basket Lift Arm, Right 901-8499 Chassis, Left 902-8499 Chassis, Right 200-2942 Mount, Basket Lift 809-0082 Truarc Retaining Ring, ¾”...

  • Page 43: Cabinetry

    2.3 Cabinetry 2.3.1 FPP/FMP Model Cabinetry Front of fryer. Rear of fryer. Four station fryer shown.
  • Page 44 809-0417 823-4727 * Not illustrated. ** Four station fryers use two backs made for two station fryers. Five station fryers use two backs: a three station fryer back and a two station fryer back. COMPONENT Cabinet Assemblies (see Section 2.3.3)

  • Page 45: Pmj (Non-Fi Lter) Model Cabinetry

    Rail, LH Filter Pan Retaining Rail, Slide Stop, Filter Rail Divider Joiner Kit, Applesbee’s Dump Station ® Top Connecting Strip, Fryer-to-Fryer Nylon Washer Magnet, Door Garland Range Cabinetry (See Section 2.19, Garland Range) Front of fryer. Rear of fryer. Four station fryer shown.
  • Page 46 200-6062 200-6346 * Not illustrated. Four station fryers use two backs made for two station fryers. Five station fryers use two backs, a three station fryer back with a two station fryer back. COMPONENT Single Station Fryer, Stainless (106-4030, Cold Rolled Steel) (806-6741 Garland)

  • Page 47: Casters, Legs, And Associated Hardware

    ITEM PART # 200-6486 200-6894 200-6911 826-1374 823-4727 823-4728 823-4745 823-4746 900-7326 KIT0293 810-1105 809-0193 * Not illustrated. 2.4 Casters, Legs, and Associated Hardware ITEM PART # 810-3169 810-3168 826-1095 810-0357 810-0356 810-0378 810-0651 810-0750 826-0900 826-1113 * Not illustrated. Brace, Front Cross Post, Rear Cabinet Long Post, Front Cabinet Long...

  • Page 48: Component Boxes

    2.5 Component Boxes (Illustrations may differ slightly from actual boxes depending upon the confi guration of the fryer.) Full-vat Component Box Assembly Full-vat Component Box Assembly [with Melt Cycle Timer] Full-vat Component Box Assembly [Standing Pilot] Full-vat Component Box Assembly...
  • Page 49 ITEM PART # 807-0670 Relay, 24V 807-0833 Relay, Latch 807-0834 Relay, Basket Lift 200-7176 Bracket, Relay 810-2243 Spring, Relay Hold Down 816-0217 Insulating Paper 810-1164 Terminal Block, 1 Plc. Screwless Terminal 810-1168 Terminal Block, Screwless End 826-1337 Tab, Terminal (pkg. of 5) 806-5857 Interface Board, Electronic Ignition 826-2425...

  • Page 50: Control Panel Assemblies, Flue Caps, And Related Items

    2.6 Control Panel Assemblies, Flue Caps, and Related Items 2-11...
  • Page 51 Two Station Fryer Three Station Fryer Four Station Fryer Five Station Fryer Burger King/Checkers Two Station Fryer (with buttons, 106-4188) Three Station Fryer (with buttons, 106-4189) Four Station Fryer (with buttons, 106-4190) Five Station Fryer (with buttons, 106-4191) Applebee’s ®...

  • Page 52: Controller Assemblies

    Single Station Tab Mount (Use 230-7091 for Screw Mount 09/08) Two Station Tab Mount (Use 230-7092 for Screw Mount 09/08) Three Station Tab Mount (Use 230-7093 for Screw Mount 09/08) No Computer Single Station Fryer Two Station Fryer Three Station Fryer Spreader Applebee’s...

  • Page 53: Wiring Assemblies, Harnesses, And Remote Cable Assemblies

    CE Non-Direct Wiring Power Supply (power cords joined in junction box) 806-4214SP Fryer to Fryer Drain Safety Switch (2-pin male w/two wires and 2-pin female w/two wires) 806-4215SP Fryer to Filter Drain Safety Switch (2-pin male w/two wires and 2-pin female w/two wires) NOTE: Assemblies 806-2079SP, 806-9777SP through 806-9781SP and kit 826-1560 are “universal”...

  • Page 54: Door Assembly

    2.8 Door Assembly ITEM PART # 106-3965 230-4960 210-6739 809-0266 826-1343 232-4707 231-4707 810-2346 106-3931 * Not illustrated. COMPONENT Door Assembly Handle Pin, Door Hinge Screw, #10 x ½” Phillips Truss Head Spring, Door Hinge Lock Hinge, Lower, Right Hinge, Lower, Left Magnet, Horizontal Mount (white) ®...

  • Page 55: Drain System Components

    2.9 Drain System Components 2.9.1 Drain Tube System ITEM PART # Drain Tubes 823-4625 823-4624 823-4643 823-4642 823-4639 823-4638 823-4641 823-4640 200-6473 200-6474 823-4740 Drain Outlet, Both Ends Open 823-4741 Drain Outlet, One End Closed Miscellaneous 816-0729 809-0969 807-2484 811-0932 810-1372 811-1071 810-2493...

  • Page 56: Drain Valves; Fpp/Fmp Models

    2.9.2 Drain Valves; FPP/FMP Models Compression Washers Plastic Washer Flat Washers Flat Washer Dual-vat, Left Assembly 106-3999 Plastic Washer Dual-vat, Right Assembly 106-4000 2-17 Full-vat Assembly 106-3760 Compression Washers Flat Washer...
  • Page 57 ITEM PART # Drain Valve Assemblies 106-3760 106-3999 106-4000 Drain Valves 810-1018 810-1114 Drain Safety Switch 807-2103 816-0220 901-2348 806-8137 106-2671 106-2672 Miscellaneous 200-6496 900-2936 900-2934 809-0540 809-0539 826-0237 824-1602 824-1637 824-1636 816-0639 816-0135 810-1165 809-0196 COMPONENT Full-vat Dual-vat, Left Dual-vat, Right Full-vat, 1.25-inch Drain Valve (without Handle) Dual-vat, 1-inch Drain Valve...

  • Page 58: Drain Valves; Pmj Models

    2.9.3 Drain Valves; PMJ Models Dual-Vat Left ITEM PART # 810-1569 806-7915SP 806-7916SP 810-1338 806-9062 806-9064 812-1226SP 812-1227 810-1427 810-1568 816-0211 * Not illustrated. Full-Vat COMPONENT Valve, 1.25-inch, Non-fi lter, Full-vat Drain (with handle) Valve, 1-inch, Non-fi lter, Dual-vat, Left Drain Valve, 1-inch, Non-fi...

  • Page 59: Filter Boxes

    2.10 Filter Boxes 120V Assembly (106-3981) 208-250V Assembly (106-3988) 2-20 208-240V Assembly (106-3989)
  • Page 60 ITEM PART # Complete Box Assemblies 106-3981 106-3988 106-3989 Components 200-6836 200-6837 200-6838 806-7494 810-1421 806-8021 807-0012 807-0141 807-0800 807-0680 807-1999 810-1164 812-1704 812-0636 816-0217 826-1366 826-1359 809-0360 810-1421 * Not illustrated. COMPONENT 120V (see also 806-6912) 208-250V 208-240V Filter Box Mount Plug Assembly, Non-Reversing Harness (to Control Circuits)

  • Page 61: Filter Pan Assembly

    2.11 Filter Pan Assembly ITEM PART # 108-0184SP 810-3161 813-0568 826-1372 826-1392 810-2198 809-1025 826-2603 826-1979 809-0191 812-2024 810-3760 823-6412 823-5334 823-5294 106-5141 809-0173 200-9732 200-9715 826-1371 809-0785 200-6310 809-0743 803-0170 803-0002 810-2800 816-0757 * Not illustrated. COMPONENT Filter Pan No Rollers July 2008 (Use 106-3796SP Pan with Rollers) Crumb Tray Plug, ⅛”...

  • Page 62: Frypots

    2.12 Frypots MJ45, Full-vat, SS ITEM PART # PMJ 35 106-4115SP 106-9776 823-4492SP 106-8362SP 106-7671SP 106-9727SP 106-8363SP PMJ 45 106-2547SP 106-2545SP 106-5868SP 106-5869 106-7681SP 106-7740 * Not illustrated. ** Frypots listed above include insualtion and other necessary components. See Section 2.13. MJ35, Full-vat, SS MJ35, Full-vat, SS (Front Flush)

  • Page 63: Frypot Cabinetry

    2.13 Frypot Cabinetry 2.13.1 PMJ45 Frypot Cabinetry Frypot assemblies located in Section 2.12. ITEM PART # 806-5778SP Flue Defl ector Box Assembly 826-1374 Screw, #10 x ½” Washer Hex Head 806-5567SP Flue Assembly, MJ45 806-1095SP Front Baffl e Assembly 106-5874 Front Baffl...

  • Page 64: Pmj35 Frypot Cabinetry

    2.13.2 PMJ35 Frypot Cabinetry Frypot assemblies located in Section 2.12. All insulation is included in 826-0861 and should be cut to fit. ITEM PART # 106-8274SP Flue Assembly, MJ35 900-3267 Flue Defl ector Box Assembly 806-4168SP Combustion Chamber, Front 806-4168 Front Baffl...

  • Page 65: Gas Valves And Burners

    2.14 Gas Valves and Burners 2.14.1 PMJ45 Gas Valves and Burners NOTE: Red dot indicates propane/ butane pilot assembly; green dot indicates manufactured gas; no dot indicates natural gas. ITEM PART # 230-1177 230-1206 826-1155 810-2710 810-2708 810-2709 810-0691 * Not illustrated. Gas Valve Conversion Kits: Non-CE Natural to Propane: 826-1143 Non-CE Propane to Natural: 826-1144...
  • Page 66 ITEM PART # Orifi ces (for high altitude and special gasses, contact Frymaster) 826-1357 826-1387 810-0407 812-1203 Pilot Assemblies, Non-CE 810-1873 807-3485 106-1909SP Pilot Assemblies, CE and Export 806-8688SP 106-9570 106-1911 810-2071 806-8689SP 106-9571 106-1912 810-2070 Burner Heat Shield Assemblies...

  • Page 67: Pmj35 Gas Valves And Burners

    2.14.2 PMJ35 Gas Valves and Burners NOTE: Red dot indicates propane/ butane pilot assembly; green dot indicates manufactured gas; no dot indicates natural gas. Gas Valve Conversion Kits: (with Honeywell Pilots) Non-CE Natural to Propane: 826-1964 Non-CE Propane to Natural: 826-1965 2-28 NOTE: This style of burner heat shield is only used with the burner manifold...
  • Page 68 Metal Target Rear, Individual Ignitor (see Section 2.14.3) 826-1155 Ignitor Kit, Optional Piezo 810-1001 807-1906 810-1862 Burner Manifold, Full-vat (full assembly including targets, 106-5075SP) Orifi ces (for high altitude and special gasses contact Frymaster) 826-1353 826-1354 810-0407 812-1203 Pilot Assemblies, Non-CE 810-1830 106-1908SP...

  • Page 69: Ignitors

    2.14.3 Ignitors LEFT 806-5895 - Natural 806-5897 - Propane ITEM PART # 807-1928 910-2077 809-0121 809-0500 910-2078 910-2079 910-2080 807-1707 807-1708 * Not illustrated. COMPONENT Flame Sensor Electrode Pilot Mount Screw, 10-32 x ½” Hex Head Screw, Stainless Steel #10 x ½” Hex Head Washer Plate, Pilot Left Right...

  • Page 70: Oil Return Components

    2.15 Oil Return Components Oil Return Handle Full-Vat Assembly (106-4002) 115V Pump/Motor Assembly shown. Filter Suction Manifold 2-31 Dual-Vat (106-4003) Filter Return Manifold...
  • Page 71 ITEM PART # Handle Assemblies, Oil Return Valve 106-4002SP 106-4003SP 106-9265SP Pump and Motor 826-1712 826-1756 826-1270 826-1755 826-1264 106-3987 Filter Return Manifold (see additional components below) 813-0251 823-4739 106-3986 Filter Suction Manifold (see additional components below) 813-0247 823-4737 810-1668 810-1339 Included with Filter Return/Suction Manifolds 810-1669...

  • Page 72: Oil Return Assembly

    ITEM PART # 816-0093 816-0220 900-2110 806-8342 806-9385 900-2112 826-1376 826-1366 809-0194 809-0056 809-0514 WIR0220 826-1359 826-2118 826-2119 826-2120 826-2121 * Not illustrated. 2.16 Oil Return Assembly ITEM PART # 106-4002 106-4003 807-2484 810-1003 810-1372 810-1668 810-1669 810-1680 810-2791 813-0156 813-0165 813-0469 816-0644...

  • Page 73: Thermostats And Timers

    2.17 Thermostats and Timers ITEM PART # Operating Thermostat Assembly, Fenwall 806-0183 806-5816 806-7972 106-7036 806-9617 806-0087SP High-Limit Thermostat 826-1177 806-7550 Flex Shaft 810-0999 810-0345 810-1651 810-0276 900-2071 Timers, Basket Lift 826-2698 826-2699 810-0585 910-1551 Knobs 810-0387 826-1395 810-1287 810-0110 810-0334 810-0388 826-1575...

  • Page 74: Wiring Harnesses, Pin Terminals, And Power Cords

    2.18 Wiring Harnesses, Pin Terminals, and Power Cords ITEM PART # 807-1068 807-0158 807-0156 807-0159 807-0875 807-1067 807-0157 807-0155 807-0160 807-0804 826-1332 826-1333 807-2518 826-1331 826-1336 807-0154 * Not illustrated. COMPONENT Connectors 2-pin Female 6-pin Female 9-pin Female 12-pin Female 15-pin Female 2-pin Male 6-pin Male...

  • Page 75: Garland Range (S35) Parts

    2.19 Garland Range (S35) Parts ITEM PART # 806-6741 900-2266 823-2282 824-0517 806-6765 806-3943SP 106-4430 810-1195 806-6985 810-1306 KIT1653 * Not illustrated. 2.20 Power Shower ITEM PART # 806-4542SP 806-4503SP 823-1522 823-1485 809-0415 826-1344 826-1390 814-0001 COMPONENT Cabinetry Cabinet Assembly, H35 Cabinet, Back/Upper Fluecap Topcap...
  • Page 76 Frymaster, L.L.C., 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-219-7140 FAX (Tech Support) 1-318-219-7135 SERVICE HOTLINE 819-6092 PRINTED IN THE UNITED STATES 1-800-551-8633 March 2011...
