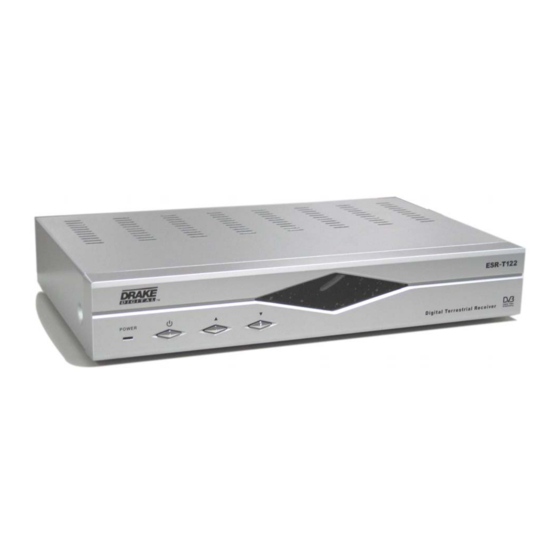

DRAKE ESR-T122 User Manual

Digital terrestrial receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

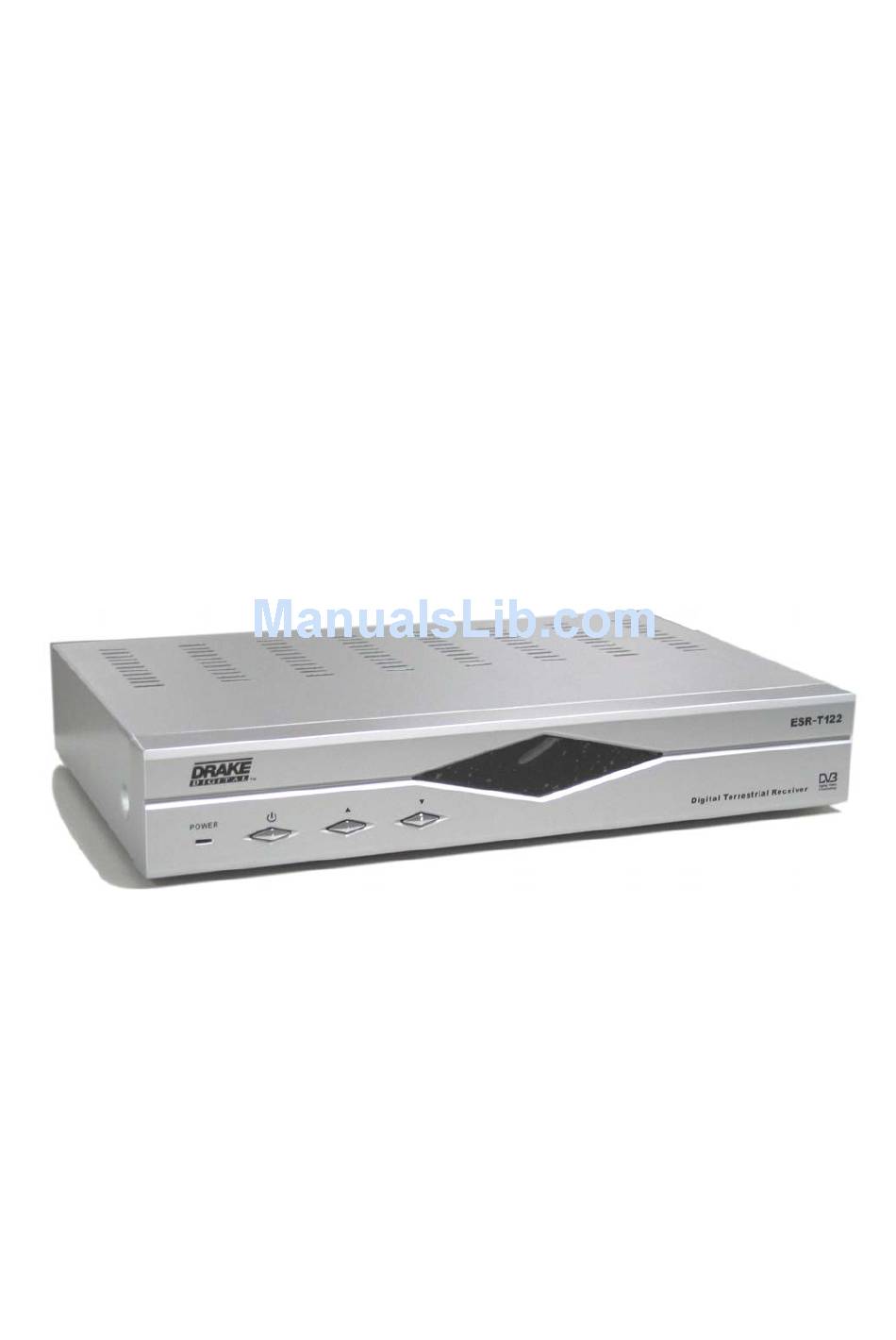

User's Guide
ESR-T122
Digital Terrestrial Receiver
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESR-T122 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DRAKE ESR-T122

Summary of Contents for DRAKE ESR-T122

  • Page 1 User’s Guide ESR-T122 Digital Terrestrial Receiver...

  • Page 2: Table Of Contents

    2 .- General Information ..................... 5 2.1.- Main Features ....................5 2.2.- Unpacking ...................... 5 2.3.- General Operation of the ESR-T122 .............. 6 3.- Description of panels and controls ...............6-7 3.1.- Remote control unit ..................8 4.- Installation of the ESR-T122 ................... 9 4.1.- Connecting the receiver ..................
  • Page 3 Technical specifications ..................... 20 Menu Tree ........................22 Troubleshooting ......................23...

  • Page 5: Remote Control Unit

    This user's guide covers the installation of the ESR-T122 and the necessary steps to operate various features. It also explains special features available only in this ESR-T122 in detail, and will allow you to take full advantage of these features.
  • Page 6 - 1 x ESR-T122 - 1 x AC mains cable Throughout this manual you will notice that the everyday operation of your ESR-T122 is based on a series of user friendly on screen display and menus. These menus will help you get the most from your ESR-T122, guiding you through installation, channel organizing, viewing and many other functions.
  • Page 7 Name Function ANT IN The input of the terrestrial antenna’s signal. TV OUT Output of the RF signal to connect it to a TV or VCR. To connect a VCR via a SCART connector. To connect a TV via a SCART connector. AUDIO R Audio output (right channel).
  • Page 8 Button Function Tums powers ON/OFF of the DTR. When watching a channel mutes the sound. Enter number of the required Menu item 0….9 or select a channel number to watch. TV/RADIO Switches between the TV and Radio channels. Display the favourite channel list. INFO Shows information of the current channel.
  • Page 9 Note: The buttons in red, green, yellow and blue color have secondary functions that are not described here and that can appear in various menus. This section explains the installation of ESR-T122. Refer to the manuals supplied with the equipment for the installation of outdoor equipment such as the antenna.

  • Page 10: User Installation

    DO NOT PLUG the Receiver into the mains until you have finished connecting it to all the other equipment. Once you have installed and connected the cables of the ESR-T122, the Menu will is displayed. This Menu consists of 5 main menus as shown below.

  • Page 11: Channel Search

    - Search free channels: Carries out a search of the free channels. ESR-T122 will automatically search channels for TV and Radio. During this procedure you can see a list of the previously searched channels in the Searched List Box on the screen.
  • Page 12 - If your SCART supports RGB control, select RGB. Otherwise select CVBS. 6.- Start On Channel: - If you press OK key, then the channel list is displayed. You can select one channel from the list. The selected channel starts whenever you turn on ESR-T122.
  • Page 13 6.- Unless you enter the correct password, you can not run any Menu. Note: Default password is 0000 Warning: Do not forget your password If you want to bring ESR-T122 back to the factory default condition, select Factory Default and press the OK key.

  • Page 14: Select Channel

    Warning: On selecting factory default you will lose all of data and information, which was previously installed. The following describes the basic functions of your ESR-T122 while watching terrestrial TV or listening to terrestrial radio. While watching, the current channel information will be shown on the screen if you press the INFO button on the RCU.

  • Page 15: Tv & Radio Mode

    1.- Volume Control - To increase or decrease volume, use Key on the RCU. Note: ESR-T122 has 18 volume levels and this can be controlled from the volume level of your TV. 2.- Mute - To mute the sound, press...

  • Page 16: Channel Manager

    press this key once again. 3.- Audio Control - Press the key repeatedly to select one of three possible Audio settings (Left, Right and Stereo) - The current audio setting will be displayed in the channel information 4.- Language Selection - Press the AUDIO key on the RCU repeatedly to select audio language.
  • Page 17 Pressing the Menu key on the RCU will display the command Menu. TV channel manager has 3 commands as shown below; 1.- Rename Favorite group 2.- Rename 3.- Sort When you select channel manager, default favorite list will be shown on screen as Favorite 1.

  • Page 18: Delete Channel

    In the TV channel manager page, press Lock key (blue color key) on the RCU. This Lock command allows you to lock the channel. First select the channel, which you want to lock, and press OK key. Then this will be marked beside the selected channel name. Note: To perform this function, you should set up the Parental Lock in advance.

  • Page 19: Timer

    ESR-T122 provides EPG function for you to get access to the TV Guide (or Radio Guide if you are listening to radio channels) that will show the titles and other information of the current and next programs on different channels. The information is only available from the network to which the channel you are watching.
  • Page 20 1. Tuner & channel Input Connector 1 x IEC (female) Output Connector 1 x IEC (male) Frequency Range 50 MHz a 860 MHz Signal Level -20 dBm to -75 dBm Input Impedance 75 Ohm RF Bandwidth 8 MHz (UHF) / 7 MHz (VHF) Wave form COFDM Transmission mode...
  • Page 21 Data interface RS232C, 9Pin SUB-D 6. Power supply Input voltage AC 90 - 240 V, 50 Hz Type Conmut. Power consumption 19W Max. 7. Physical specification Size (W x H x D) 260 mm x 45 mm x 165 mm Weight about 1 Kg 8.

  • Page 23: Troubleshooting

    Troubleshooting If you encounter technical difficulties during setup or operation, check the following troubleshooting procedures. If the unit still does not work, please contact your dealer or an authorized service center. [CAUTION: Before checking cables, please make sure the power is OFF and unplug the power chord for your personal safety.
