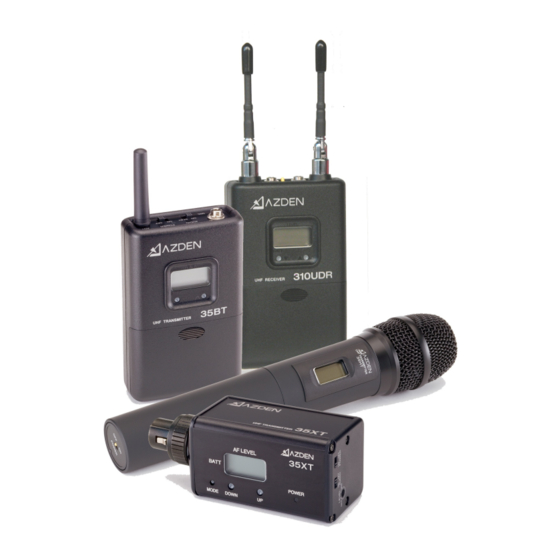

- Page 1 310 DIVERSITY CAMERA-MOUNT UHF WIRELESS MICROPHONE SYSTEM 310UDR - 35BT - 35HT - 35XT INSTRUCTION MANUAL...
- Page 2 Thank you for purchasing the Azden 310 Diversity Wireless Microphone system. The following table will show you the contents of the system you ordered: 310LT 1 x 310UDR Diversity Receiver 1 x Stereo Mini-to-Dual XLR Cable 1 x Stereo Mini-to-Stereo Mini Cable...
- Page 3 Have someone speak into the microphone as you monitor the sound through the 310UDR Receiver’s phone output. If the sound is distorted, lower the MIC input level on the 35BT Transmitter. If there is not enough volume, raise the MIC input level on the Transmitter.
- Page 4 35HT Handheld Microphone/Transmitter Turn the power switch on the 35HT Transmitter to “ON” position and the battery level indicator on the LCD display should come on. Have someone speak into the micro- phone as you monitor the sound through the camera’s monitor output. Adjust the MIC input level control accordingly.
- Page 5 The 310UDR is supplied with both mini-to-mini and mini-to-dual XLR cables. For mini jack microphone inputs: Use the supplied mini-to-mini cable. Plug one end of the cable into the 310UDR Receiver and the other end into the micro- phone input of the video camera.
- Page 6 LCD Display Readouts BATT LEVEL 30-02 a. TV channel number (30 – 33) b. Transmit channel number (01 -47) c. Reception level indicator: 4 bars = High, 1 bar = Low d. Battery level indicator: 3 bars = High, 1 bar = Low 35BT Body-Pack Transmitter...
- Page 7 ⑧ Battery Compartment Remove the battery compartment lid by sliding it down. Install two fresh alkaline “AA” batteries. Make sure the battery polarity is correct as marked inside the battery compartment. ⑨ Install two fresh alkaline “AA” batteries. Make sure the battery polarity is correct as marked inside the battery compartment.
- Page 8 35XT Plug-in Transmitter ⑮ Battery Compartment Open the battery compartment lid by pushing down on the tab and lifting it up. Install two fresh alkaline “AA” batteries. Make sure the battery polarity is correct as marked inside the battery compartment. ⑯...
- Page 9 ⑱ MIC Connector/Locking Ring This 3-pin XLR connector is the microphone input. Any low impedance microphone with a corresponding connector may be plugged here. Once the microphone is plugged into the 35XT, the locking ring should be rotated clockwise until snug. To remove the microphone, first rotate the locking ring counterclockwise and then pull the micro- phone away while pressing the XLR release.
- Page 10 35HT Handheld Microphone/Transmitter ㉑ Battery Compartment Cover Remove the battery compartment cover by rotating it counterclockwise and sliding it down. ㉒ Battery Compartment Install two fresh alkaline “AA” batteries. Make sure the battery polarity is correct as marked inside the battery compartment.
- Page 11 ㉓ MIC LEVEL Control This enables you to adjust the audio level of the microphone. Using the supplied tool, turn the orange dial clockwise to increase, or counterclockwise to decrease the audio level. ㉔ Channel UP and DOWN Button To change the channel number, use the tip of the tool provided and press the UP or DOWN button until the desired channel number is shown on the LCD Display.
- Page 12 Approx. 9.6oz (270g) w/ batteries Due to constant improvements, specifications are subject to change without notice. Azden Corp., 147 New Hyde Park Road, P.O. Box 10, Franklin Square, NY 11010 Tel : + 1.516.328.7500 Fax: +1.516.328.7506 E-Mail: sales@azdencorp.com Web: www.azdencorp.com...
