Specifications

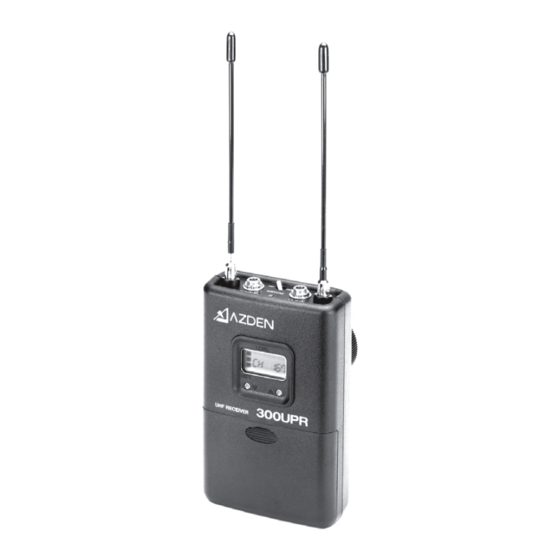

300UPR Receiver
Frequency Range
UHF 240-Channel Selectable (794.000 – 805.950MHz)
Type of Reception
Antenna Diversity Receiver
Oscillator
PLL Synthesized
RF Squelch Level
15dBµ
Frequency Response
50Hz – 15kHz
S/N Ratio
>70dB "A" Weighted
Audio Distortion
<1% @ 1kHz
Operating Temp.
0°C – 45°C (32°F – 113°F)
-64dBm @ 600 Ω - 3.5mm Mini-Jack (unbalanced)
MIC Out
-58dBm @ 600 Ω - 3.5mm Mini-Jack (balanced)
Power Requirement
2 – 1.5V "AA" Alkaline Batteries - 6 – 8 Hours
Dimensions
63W x 98H x 28.5D mm (2.48W x 3.86H x 1.12D inches)
Weight
Approx. 180g Including Battery (6.35oz)
30BT Transmitter
Frequency Range
UHF 240-Channel Selectable (794.000 – 805.950MH)
Oscillator
PLL Synthesized
RF Power
10mW (30mW Max.)
Frequency Response
50Hz – 15kHz
Max. Deviation
±40kHz @ 1kHz Modulation
S/N Ratio
>70dB "A" Weighted
Audio Distortion
<1% @ 1kHz
MIC Sensitivity
±5kHz @ -60dBm MIC Input (0dBm=+0.775V) - 3.5mm Mini-Jack
Operating Temp.
0°C – 45°C (32°F – 113°F)
Power Requirement
2 – 1.5V Alkaline "AA" Batteries - 8 – 10 Hours
Dimensions
63W x 98H x 28.5D mm (2.48W x 3.86H x 1.12D inches)
Weight
Approx. 170g Including Battery (6oz)
Due to constant improvements, specifications are subject to change without notice.
Azden Corporation, 147 New Hyde Park Road, P.O. Box 10, Franklin Square, NY 11010
vox - 516.328.7500 • fax - 516.328.7506 • email - azdenus@azdencorp.com
© 2006 Azden Corporation
Printed in USA
300LT SYSTEM
User's Guide
P1060-01
300UPR • 30BT
ON-CAMERA
UHF WIRELESS MICROPHONE SYSTEM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 300LT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Azden 300LT

  • Page 1: Specifications

    Approx. 170g Including Battery (6oz) Due to constant improvements, specifications are subject to change without notice. Azden Corporation, 147 New Hyde Park Road, P.O. Box 10, Franklin Square, NY 11010 vox - 516.328.7500 • fax - 516.328.7506 • email - azdenus@azdencorp.com ©...
  • Page 2: The Transmitter

    Important information Licensing of this, or any Azden wireless equipment is the user’s responsibility. The ability to receive a license depends largely on the user’s classification, application and frequency. Contact the appropriate agency (FCC in the US) for further information.
  • Page 3 If it does not, check the battery. Have someone speak into the microphone as you monitor the Thank you for purchasing Azden’s 300LT wireless system, which consist of the 300UPR receiver, 30BT transmitter and EX-503L lapel microphone. This...
  • Page 4 receiver. Plug the XLR end of the cable into the microphone input of the video camera. (6) LCD Display This display shows the following information. Channels: Numbered from 1 to 240 Battery Condition: Using a 3 step indicator. (1 Low to 3 High) Reception Level: Using a 4 step indicator.
