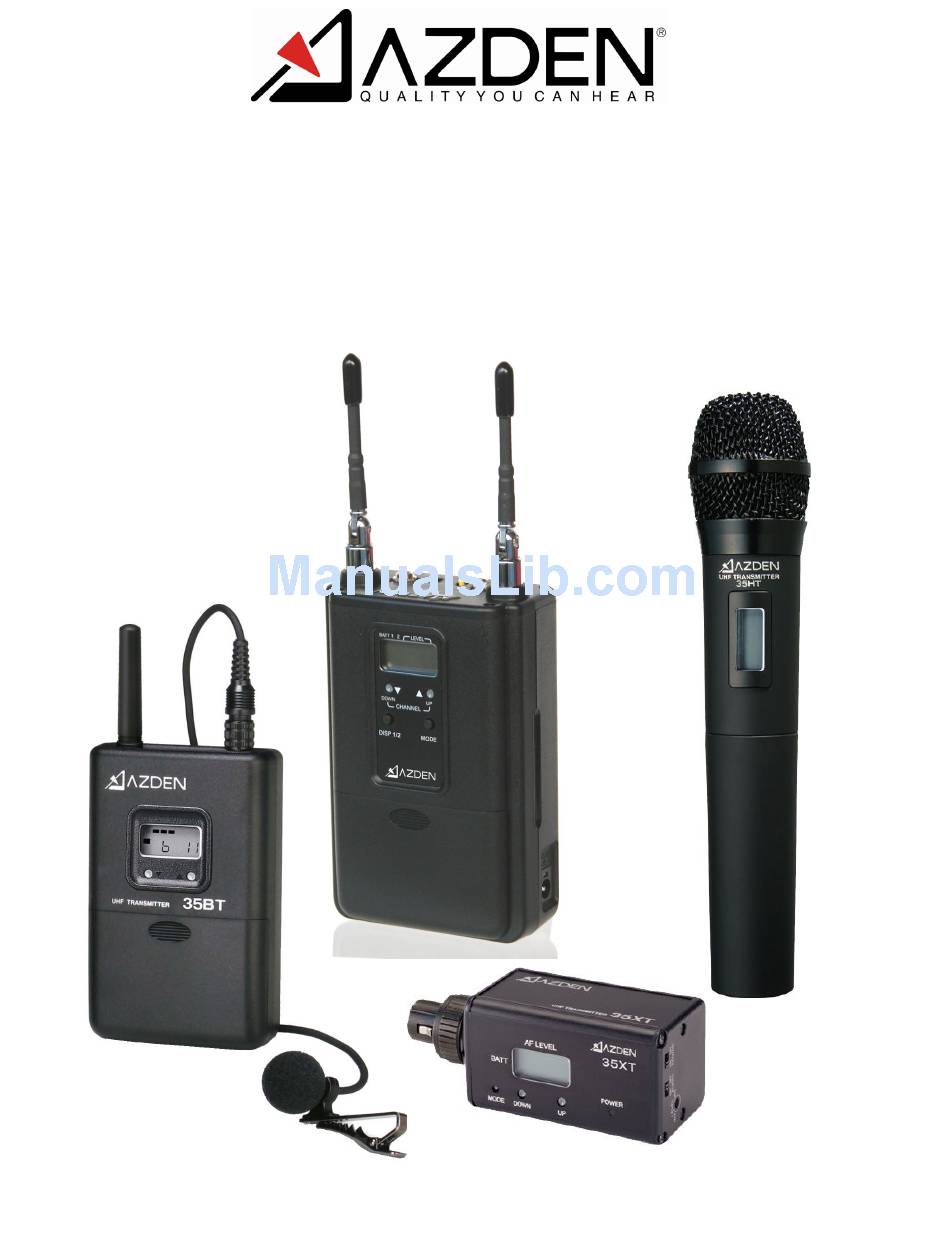

330 DUAL-CHANNEL CAMERA-MOUNT
UHF WIRELESS MICROPHONE SYSTEM
330UPR - 35BT - 35HT - 35XT
INSTRUCTION MANUAL
Advertisement
Related Manuals for Azden 330UPR
Summary of Contents for Azden 330UPR
- Page 1 330 DUAL-CHANNEL CAMERA-MOUNT UHF WIRELESS MICROPHONE SYSTEM 330UPR - 35BT - 35HT - 35XT INSTRUCTION MANUAL...
- Page 2 Thank you for purchasing the Azden 330 Dual-Channel Wireless Microphone system. The fol- lowing table will show you the contents of the system you ordered: 330ULT 1 x 330UPR Dual-Channel Receiver 1 x Stereo Mini-to-Dual XLR Cable 1 x Stereo Mini-to-Stereo Mini Cable...
- Page 3 Ch. 2 to “ON” and the battery level indicator on the LCD display should come on. If not, check the batteries. When the 330UPR receives a signal from the transmitter, the reception level indicator will come on. If it does not, make sure both the receiver and the transmitter are on matching channels.
- Page 4 330UPR Dual-Channel Receiver ①Antennas For the best reception, the antennas should be pointed in an upward position. Use cau- tion and do not force them into this position. ②Power Switch for each Channel A separate Power Switch for Channel 1 and 2.
- Page 5 The 330UPR is supplied with both mini-to-mini and mini-to-dual XLR cables. For mini jack microphone inputs: Use the supplied mini-to-mini cable. Plug one end of the cable into the 330UPR Receiver and the other end into the micro- phone input of the video camera.
- Page 6 LCD Display Readouts BATT LEVEL BATT LEVEL 30-02 579.375 Displays the selected channel between Ch. 1 and Ch. 2. TV channel number (30 – 33) Transmit channel number (01 -47) Reception level indicator: 4 bars = High, 1 bar = Low Battery level indicator: 3 bars = High, 1 bar = Low The actual frequency number in MHz.
- Page 7 ⑪Battery Compartment Lid Remove the battery compartment lid by sliding it down. ⑫Battery Compartment Install two fresh alkaline “AA” batteries. Make sure the battery polarity is correct as marked inside the battery compartment. Inside the battery compartment, you will also find: ⑬MIC Input Level Control This control enables you to adjust the input level of the microphone.
- Page 8 35XT Plug-in Transmitter ⑱Battery Compartment Open the battery compartment lid by pushing down on the tab and lifting it up. Install two fresh alkaline “AA” batteries. Make sure the battery polarity is correct as marked inside the battery compartment. ⑲POWER Switch Turns the 35XT Transmitter “ON”...
- Page 9 ㉑MIC Connector/Locking Ring This 3-pin XLR connector is the microphone input. Any low impedance microphone with a corresponding connector may be plugged here. Once the microphone is plugged into the 35XT, the locking ring should be rotated clockwise until snug. To remove the microphone, first rotate the locking ring counterclockwise and then pull the micro- phone away while pressing the XLR release.
- Page 10 35HT Handheld Microphone/Transmitter ㉔Battery Compartment Cover Remove the battery compartment cover by rotating it counterclockwise and sliding it down. ㉕Battery Compartment Install two fresh alkaline “AA” batteries. Make sure the battery polarity is correct as marked inside the battery compartment. ㉖MIC LEVEL Control This enables you to adjust the audio level of the microphone.
- Page 11 ㉗Channel UP and DOWN Button To change the channel number, use the tip of the tool provided and press the UP or DOWN button until the desired channel number is shown on the LCD Display. Keep the button pressed to fast forward the channel numbers. ㉘POWER Switch Turns the 35HT Transmitter/Microphone “ON”...
- Page 12 Specifications 330UPR Receiver Frequency Range: UHF 188 Selectable Frequencies (566.125-589.875MHz) Type of Reception: Dual-Channel Receiver Oscillator: PLL Synthesized RF Squelch Level: -95 dBm Frequency Response: 50Hz – 15kHz S/N Ratio: >57dB (± 5kHz) “A” Weighted Audio Out: MIC Level – Unbalanced – 3.5mm Mini Jack -64 dBm –...
