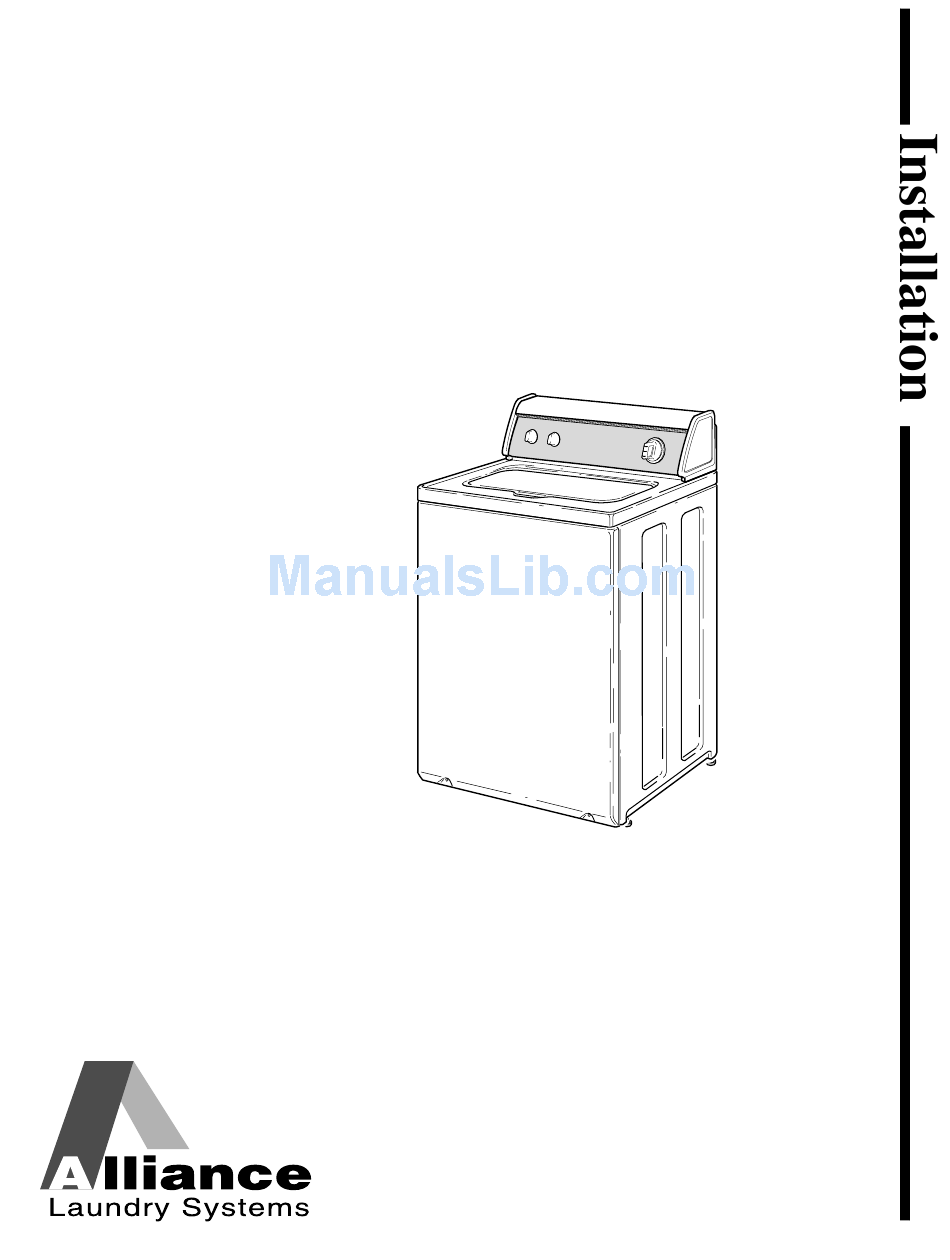

- Page 1 Automatic Washers Home Laundry W001C W001C Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com. Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 39239R4 July 2007 www.comlaundry.com...
-
Page 3: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 39239 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 4: Replacement Parts
Shepard Street P.O. Box 990 Ripon, WI 54971-0990 Phone: (920) 748-3950 for the name and address of the nearest authorized parts distributor. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39239... -
Page 5: Installation
28 in. (71.1 cm) 22.13 in. (56.2 cm) 0.4 in. 25.6 in. 26 in. (1 cm) (65 cm) (66 cm) TLW2075N *With leveling legs turned into base. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39239... -
Page 6: Before You Start
(138 and 827 kPa). For more detailed information, refer to section on Water Supply Requirements. D074I D074I Wrench Screwdriver Pliers Level Figure 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39239... -
Page 7: Installing The Washer
This will prevent damage to washer components. NOTE: Refer to your Use and Care Guide for reinstalling shipping brace and shipping plug. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39239... -
Page 8: Step 3: Connect Fill Hoses
All hoses should be checked on a yearly basis for any visible signs of deterioration. Any hose showing the signs of deterioration listed above should be replaced immediately. All hoses should be replaced every 5 years. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39239... -
Page 9: Step 4: Connect Drain Hose To Drain Receptacle
Standpipe Adapter Tie-Down Strap Standpipe 2 in. (5.08 cm) or 1-1/2 in. (4 cm) W324I Diameter Retainer Clamp Drain Hose Sleeve Standpipe Adapter Figure 6 Figure 5 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39239... - Page 10 562P3 Siphon Break Kit Standpipe Drain Hose TLW1962N Figure 8 TLW1962N Drain Hose Standpipe (Standpipes higher than 4 feet [122 cm] are not recommended) Tie-Down Strap Standpipe Adapter Figure 7 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39239...
- Page 11 W329I Tie-Down Strap (Tape if necessary) Standpipe Adapter Figure 10 TLW1963N Drain Hose Tie-Down Strap or Wire Tie Cabinet Top Hinge Figure 9 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39239...
-
Page 12: Step 5: Position And Level The Washer
TLW1964N TLW1964N Verify that washer doesn’t rock. Tie-Down Strap (Tape if necessary) Figure 11 W179I Level Locknut Leveling Leg Rubber Cup Washer Base Figure 12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39239... -
Page 13: Step 6: Plug In The Washer
NOTE: The agitator should not be removed except for service. The washtub is designed to be self- cleaning. W391I W391I Figure 14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39239... -
Page 14: Electrical Requirements
The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local Figure 17 codes and ordinances. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39239... -
Page 15: Water Supply Requirements
(138 kPa) will cause an extended fill time in the washer. W187I Water Supply Faucets Cold Water Connection Hot Water Connection Fill Hoses Figure 18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39239... -
Page 16: Risers
Refer to Figure 19. W005I W005I Risers (Air cushions) Water Supply Faucets Figure 19 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39239... -
Page 18: Installer Checklist
Installer Checklist Fast Track for Installing the Washer (Refer to the manual for more detailed information) ➊ ➎ • Remove the Shipping • Position and LEVEL Brace and Shipping Level the D255I Plug. Washer. CHECK CHECK W316I W316I TLW521N ➏ ➋...
