Inside . . .
Safety Information . . . 3
Operation . . . . . . . . . . . 6
Clothing Care . . . . . . . 18
Maintenance . . . . . . . 27
Troubleshooting . . . . 29
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.

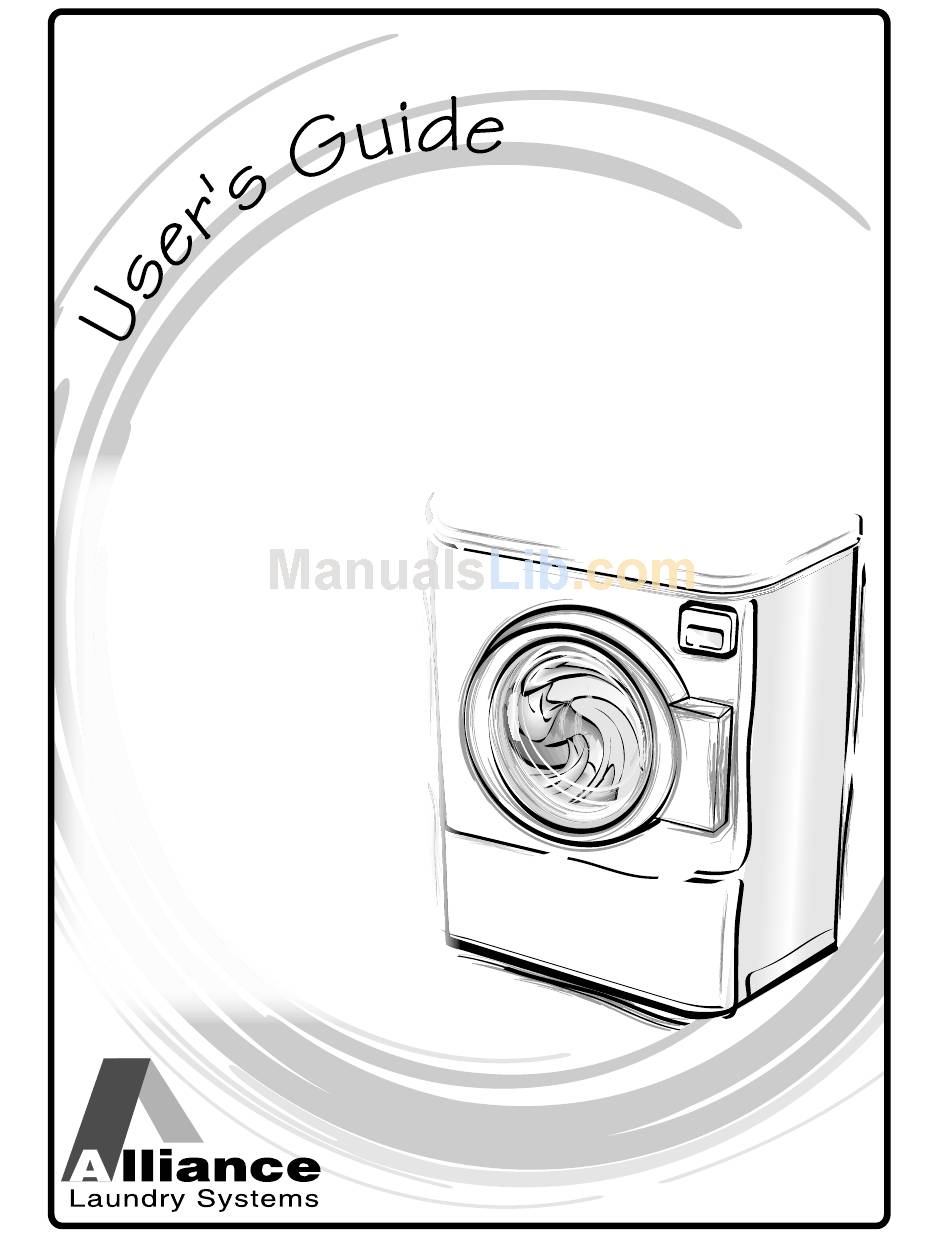

for your
frontload
washer
www.comlaundry.com
Part No. 802753
November 2006
Advertisement
Table of Contents
Related Manuals for Alliance Laundry Systems Frontload Washer
Summary of Contents for Alliance Laundry Systems Frontload Washer
-
Page 1: Table Of Contents
frontload Inside . . . Safety Information . . . 3 Operation ... 6 Clothing Care ..18 Maintenance ..27 Troubleshooting . - Page 2 W A R N I N G For your safety and to reduce the risk of fire or an explosion, do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 3: Safety Information
4. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode. © Copyright 2006, Alliance Laundry Systems LLC of the publisher. 802753 W A R N I N G... - Page 4 5. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine or combination washer-dryer, turn on all hot water faucets and let the water flow from...
- Page 5 25. Always read and follow manufacturer’s instructions on packages of laundry and cleaning aids. Heed all warnings or precautions. To reduce the risk of poisoning or chemical burns, keep them out of the reach of children at all times (preferably in a locked cabinet).
-
Page 6: Operation
Operation Before Washing Prepare Wash Load Empty Pockets and Cuffs Make sure all pockets are empty and turn them inside out. One bobby pin, metal or plastic toy, nail or sharp object in a load can catch laundry and cause tears. Facial tissue left in a pocket will produce extreme “lint”. -
Page 7: Loading The Washer
W A R N I N G Do not wash or dry items soiled with vegetable or cooking oils. Some oils may remain after washing and may cause the fabric to catch on fire by itself. Loading the Washer Load Articles •... - Page 8 Wash Temperature Guide Water Temperature BOOSTED HOT (select models only) (approximately 140°F [60°C]) (approximately 120°F [49°C] or as determined by outside hot water supply) WARM (approximately 100º F [37°C]) COLD (approximately 60º F [15°C]) Energy You can save energy when washing by following a few guidelines: 1.
-
Page 9: Operating Your Washer
Operating Your Washer W A R N I N G To reduce the risk of fire, electric shock, serious injury or death to persons, read the Safety Information section before operating your washer. NOTE: Always follow manufacturer’ s care labels. Determine Proper Cycle NOTE: The cycle times might be longer if a Boosted Hot Wash, if available, is selected. - Page 10 To Wash Clothes IMPORTANT: Before using your new washer, make sure the washer cord is plugged into an appropriate electrical outlet that has the proper grounding (earthing) and polarity. Refer to the washer nameplate and Installation Instructions for proper voltage and Hertz the washer is designed to operate on.
- Page 11 4. Close the loading door tightly. The washer will not operate with the loading door open. W A R N I N G To reduce the risk of serious injury, do not bypass the loading door switch by permitting the washer to tumble or spin with the loading door open.
- Page 12 There is no agitator on this washer. Instead, the clothing gently tumbles through the water. The wash action consists of a period of tumbling in one direction, a brief pause, and then a reverse tumble in the opposite direction. The pauses are part of the tumble action and add to the unique cleaning capabilities of the washer.
- Page 13 DOOR Light When the washer is started, the DOOR light will come on after a short delay. The light will turn off approximately 45 seconds after the cycle is complete. WASH Light This light comes on during the wash part of each cycle.
-
Page 14: Available Washing Cycles
Available Washing Cycles The cycles of your washer include several different settings. Refer to the table below for what can be expected during the cycles that you select. Wash Spin Rinse Spin Extra Rinse (Optional) Spin Final Rinse Spin Spin Final Spin Fluff Wash... -
Page 15: Common Washer Sounds
Wash Spin Rinse Spin Extra Rinse (Optional) Spin Final Rinse Spin Final Spin Fluff Rinse Spin Spin Final Spin Fluff NOTE: The Rinse setting will give a cold rinse when the optional Extra Rinse is selected. Common Washer Sounds Sounds Accelerating Tapping Thumping... - Page 16 Using Your Dispenser Drawer Detergent Bleach Fabric Softener Detergent Compartment The detergent compartment is located on the right side of the dispenser drawer. Refer to compartment 1 of illustration. Use low sudsing, high efficiency (HE) powdered or liquid detergents that are recommended for use with frontload washers.
- Page 17 Fabric Softener Compartment The fabric softener compartment is located in the left rear corner of the dispenser drawer. Refer to compartment 3 of illustration. Use no more than the maximum level indicated for the fabric softener compartment. Adding more than the maximum amount could result in early dispensing of the product and possible staining of fabrics.
-
Page 18: Clothing Care
Clothing Care Clothing Care Labels The symbols below appear on many clothing care labels. Following the instructions on each label will help ensure the best laundry results. WASH Machine Wash Cycle Normal Permanent Gentle/ Hand wash TLW2011N TLW2010N TLW2012N Press/Wrinkle Delicate Resistant Water Temperature... -
Page 19: Washing Special Items
Washing Special Items NOTE: Always Follow Manufacturer’ s Care Label Instructions. Bedding Diapers Draperies, Curtains, Slip Covers Pillows (Feather and Down) Rugs Slips and Nightgowns Shoes Small Items Cotton Knits Rayon Knits Synthetic Fiber Knits Knits of Manufactured Fibers • Warm wash and warm rinse. •... - Page 20 Sweaters of Manufactured Fibers Wool Items Permanent Press NOTE: We do not recommend starching in this washer. • Follow directions for comparable knits. • Button sweaters and turn inside out. • Stretch to shape after washing. • Avoid pulling when wet. •...
-
Page 21: Clothing Concerns
Clothing Concerns To keep clothes looking white or bright, use good washing practices at all times to prevent a gradual build-up of soil or water hardness minerals on them. If you notice that your clothes are not as bright as they should be, take corrective measures immediately. - Page 22 Laundry Products Laundry Aids Soak/Pretreat • Use a pretreating agent and soak overnight to remove Products stains and soils. • Always follow manufacturer’s instructions with any pretreat product (Spray ‘N Wash, Shout*, etc.). Detergents/Soaps • Use low-sudsing, high efficiency (HE) detergent (recommended for frontload washers) in your washer.
-
Page 23: Stain Removal
Stain Removal • Many soils will not become stains if treated promptly. Older stains may be difficult or impossible to remove. Hot water will set some stains, particularly protein based stains. Use cold or warm water on these before washing in hot water. •... - Page 24 Stain Chocolate or Cocoa Coffee, Tea Copier Toner Crayon Deodorants and Anti-Perspirants Egg, Gravy Eye and Face Make-up Fabric Softener Felt-Tip Marker Fruit Juices Grass Grease, Oil Iodine Jam, Jelly Rinse with cold water. Rub detergent into stain and soak in cold water. If greasy stain remains, sponge face down on paper towels with a pretreat product.
- Page 25 Stain Ketchup, Tomato-Based Products Lipstick Lotion (Hand, Body, Suntan) Mildew Milk and Milk Products Mustard Nail Polish Paint Perspiration Rust Salad Dressing, Mayonnaise Scorching Shoe Polish Soft Drinks Soy Sauce Tobacco Toothpaste Scrape off excess. Soak in cold water 30 minutes. Rub detergent into the stain and, if safe for fabric, wash in hot water and chlorine bleach.
- Page 26 Stain Urine Vomit Wine *Brand names are trademarks of their respective manufacturers. Rinse with cold water. Soak with an enzyme soaking product. Wash in hot water with chlorine bleach (if safe for fabric). If the color of the fabric has changed, sponging the area with ammonia may restore the color.
-
Page 27: Maintenance
Maintenance Lubrication • All moving parts are sealed in a permanent supply of lubricant or are equipped with oilless bearings. Additional lubrication will not be necessary. Cold Weather Care • If the washer is delivered on a cold day (below freezing), or is stored in an unheated room or area during the cold months, do not attempt to operate it until the washer has had a... -
Page 28: Reinstallation Of Shipping Materials
Filter Screens Check the filter screens in the fill hoses for debris or damage annually. Clean or replace them if necessary. If the washer is filling with water slower than normal, check the filter screens. Clean or replace them if necessary. Order filter screen Part No. -
Page 29: Troubleshooting
Troubleshooting Try these troubleshooting tips before making a service call. You may save time and money! Washer Symptom Won’t Fill • Make sure power cord is plugged all the way into the electrical outlet. • Make sure hot and cold water faucets are turned on. •... - Page 30 Is Noisy • Make sure washer is level. Uneven leveling can cause vibration. • Some sounds may be a part of normal operation for a frontload washer. Refer to Common Load is too Wet • Wash load may be unbalanced. The washer may have limited the spin speed to prevent •...
-
Page 31: Contact Information
If you are unable to locate an authorized service center or are unsatisfied with the service performed on your unit, contact: Alliance Laundry Systems Shepard Street P.O. Box 990 Ripon, Wisconsin 54971-0990 www.comlaundry.com...
