© 2009 Pella Corporation
INSTALLATION INSTRUCTION - INSTRUCCIONES DE INSTALACIÓN
FOR CLAD AWNING, CASEMENT &
NON-RECTANGULAR CASEMENT WINDOW
pARA LAS VENTANAS DE MADERA RECUbIERTAS DE ALUMINIO
TIpO bISAGRAS, bATIENTE y bATIENTE NO-RECTANGULAR

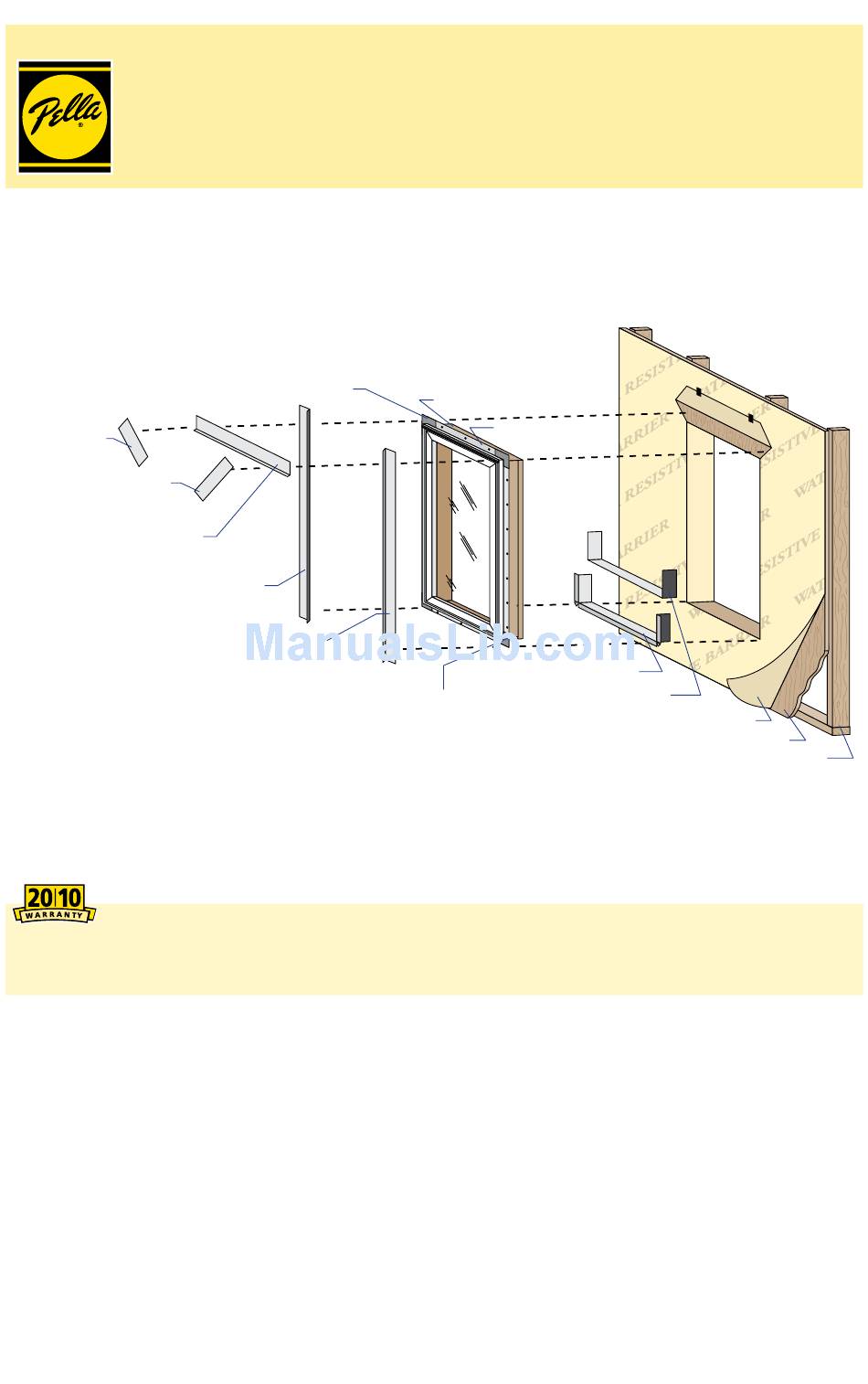

Corner
Flashing
Tape
Corner
Flashing
Tape
Top
Flashing
Tape
Always read the Pella
By installing this product, you are acknowledging that this Limited Warranty is part of the terms of
the sale. Failure to comply with all Pella installation and maintenance instructions may void your Pella
product warranty. See Limited Warranty for complete details at http://warranty.pella.com.
Installation Instructions for Typical Wood Frame Construction.
These instructions were developed and tested for use with typical wood frame wall construction
in a wall system designed to manage water. These instructions are not to be used with any
other construction method. Installation instructions for use with other construction methods,
multiple units or bow and bay windows, may be obtained from Pella Corporation, a local Pella
retailer, or by visiting http://www.pella.com. Building designs, construction methods, building
materials, and site conditions unique to your project may require an installation method
different from these instructions and additional care. Determining the appropriate installation
method is the responsibility of you, your architect, or construction professional.
Fin
Corner
Side
Flashing
Tape
Side
Flashing
Tape
Window Bottom
®
Limited Warranty before purchasing or installing Pella products.
Window Top
Nailing Fin
Sill Flashing Tape #1
Sill Flashing Tape #2
Water Resistive Barrier
Part Number: 812W0100
Sheathing
Framing
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pella 812WO100
Summary of Contents for Pella 812WO100
- Page 1 By installing this product, you are acknowledging that this Limited Warranty is part of the terms of the sale. Failure to comply with all Pella installation and maintenance instructions may void your Pella product warranty. See Limited Warranty for complete details at http://warranty.pella.com.
- Page 2 • Tape measure • 2" galvanized roofing nails (1/4 lb.) • Level • Closed cell foam backer rod/sealant backer (12 to 30 ft.) • Square • Pella ® SmartFlash ™ foil backed butyl window and door flashing tape or equivalent •...
- Page 3 ROUGH OpENING pREpARATION (continued) E. Apply sill flashing tape #1. Cut a piece of flashing tape 12" 1 " longer than the opening width. Apply at the bottom of the opening as shown (1E) so it overhangs 1" to the exterior. 6 "...
- Page 4 SETTING AND FASTENING THE WINDOW (continued) D. Curved Units with Fins (Continued): #6 x 5/8” corrosion resistant screws Curved Units with frame radius ≤ 12", full circle 6“ from end and elipse units will be provided with a flexible non-structural fin on the curved portion of the unit.
- Page 5 SETTING AND FASTENING THE WINDOW (continued) G. Check the interior reveal. Make sure the measurement from the interior face of the window to the interior face of the wall is equal at several points around the window. Note: If the dimensions are not equal, check to make sure the fins are folded out to 90°...
- Page 6 INTEGRATING THE WINDOW TO THE WATER RESISTIVE bARRIER (continued) C. Fold down top flap of water resistive barrier (3C). D. Apply flashing tape to diagonal cuts. Cut pieces of flashing tape at least 1" longer than the diagonal cuts in the water resistive barrier.
-
Page 7: Interior Seal
INTERIOR SEAL Caution: Ensure use of low pressure polyurethane window and door insulating foams and strictly follow the foam manufacturer’s recommendations for application. Use of high pressure foams or improper application of the foam may cause the window frame to bow and hinder operation. A. - Page 8 SEALING THE WINDOW TO THE EXTERIOR WALL CLADDING (continued) A. Insert backer rod into the space around the window approximately 3/8" deep. This should provide at least a 3/8" clearance between the backer rod and the exterior face of the window.
-
Page 9: Exterior Finish
The determination of the suitability of all building components, including the use of Pella products, as well as the design and installation of flashing and sealing systems are the responsibility of the Buyer or User, the architect, contractor, installer, or other construction professional and are not the responsibility of Pella. - Page 10 INSTALLING ROTO COVER AND CRANK Note: Finish the interior of the window and allow Pocket End the window to dry before proceeding with these instructions. (To open the window for finishing, partially insert the lock handle into the jamb, unlock the unit, temporarily attach the crank handle and turn to open.) A.
