1. (Optional) If a door strike/release is to be utilized, connect wiring
to operate door strike. Connect to Normally Open or Normally Closed (as required)
and Common. Relay contacts are rated for a maximum of 1Amp at 24VDC.
2. Connect the Door Plate to the Network Interface. If the Door Plate is close to
the Network Interface, a standard Patch Cable may be used to connect between
them. For longer distances, the VM-186 RJ45 Junction Boxes can be used to
extend up to 900' between the Door Plate and Network Interface.
Step 3
Network Port
(802.3af Compatible PoE)
Patch Cable
RJ45
BROWN
BROWN
BROWN
WHITE/BROWN WHITE/BROWN
GREEN GREEN
WHITE/GREEN WHITE/GREEN
ORANGE
ORANGE
WHITE/ORANGE WHITE/ORANGE
BLUE
BLUE
WHITE/BLUE WHITE/BLUE
BLUE
VM-186

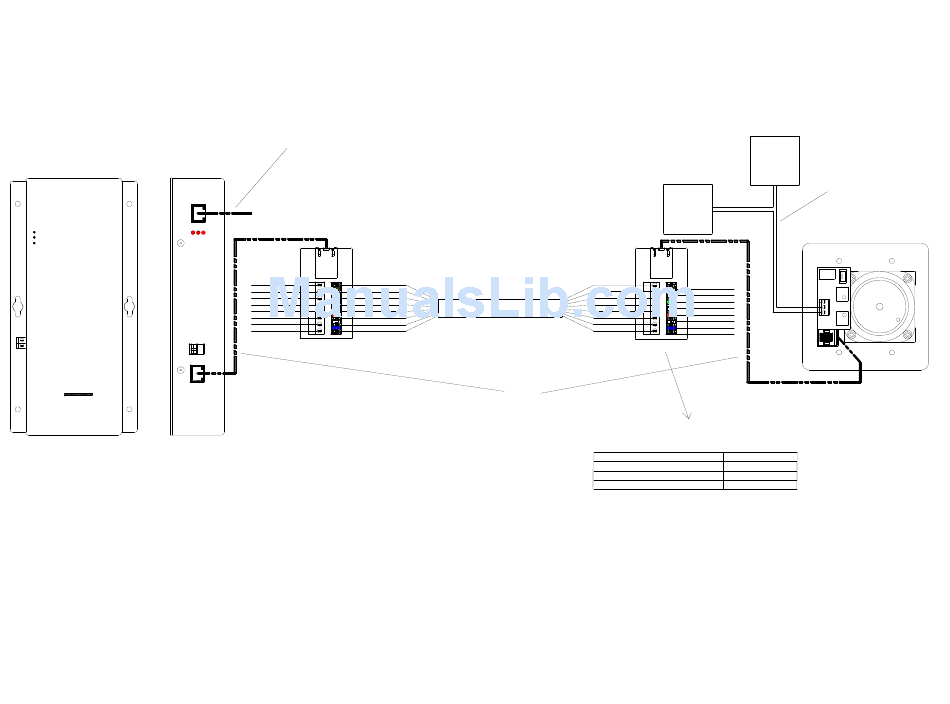

FIGURE 1. VIP-172L QUICK START INSTALLATION
NOTE: CONSULT MANUFACTURER'S
CONNECTION DIAGRAM FOR CONNECTION OF
STRIKEPLATE. THE N.C. CONNECTION MAY BE
REQUIRED ON SOME STRIKEPLATES INSTEAD
OF N.O.
WHITE/BROWN
WHITE/GREEN
CAT 3/5/6 UTP
ORANGE
WHITE/ORANGE
900' MAXIMUM DISTANCE
WHITE/BLUE
Step 2
BROWN & WHITE / BROWN
GREEN & WHITE / GREEN
ORANGE & WHITE / ORANGE
BLUE & WHITE / BLUE
3. Connect RJ45 connector from network. Power over Ethernet (PoE) is required;
if PoE is not available from the switch, an inline power injector will be required.
4. Program the VIP-172L using the VIP-102B IP Solutions Setup Tool.
