10. Once pushed completely into the opening finish routing the drain
tubing to the desired location. Common installations use a floor
drain, standpipe, garbage disposal, or Y-branch tailpiece-type drain
connection (Figure 73 - 76). After the installation is complete,
check the unit to ensure it is level both side to side and front to
back. For disposal connections an optional adapter may be
required (included with the kit) to adapt from the 7/8" connection.
11. For the gravity/floor drain or the standpipe drains it is important to
secure the drain tubing to those items to prevent it from coming
loose. For the disposal or
Y-branch tailpiece connections press the drain tube over the
barbed end on the connector. Make sure the knockout inside the
tailpiece has been removed for both types of connections. Attach
these two with a worm drive hose clamp. Depending on the size of
the
Y-branch or disposer fitting an adapter may be needed to interface
between the 5/8" hose and connection.
12. After all connections have been completed turn the unit to the ON
position. Pour one gallon of water into the ice bin and check all drain
connections for leaks. During this time also ensure that the water
flows from the bin. If the water does not flow from the bin there
may be a problem with the drain connection such as kinks or
improper slope. If your unit has a drain pump an indicator of P1 on
the display will alert to a slow or clogged drain. If any problems are
found, retrace the drain connection, correct the issue and retest
with water.

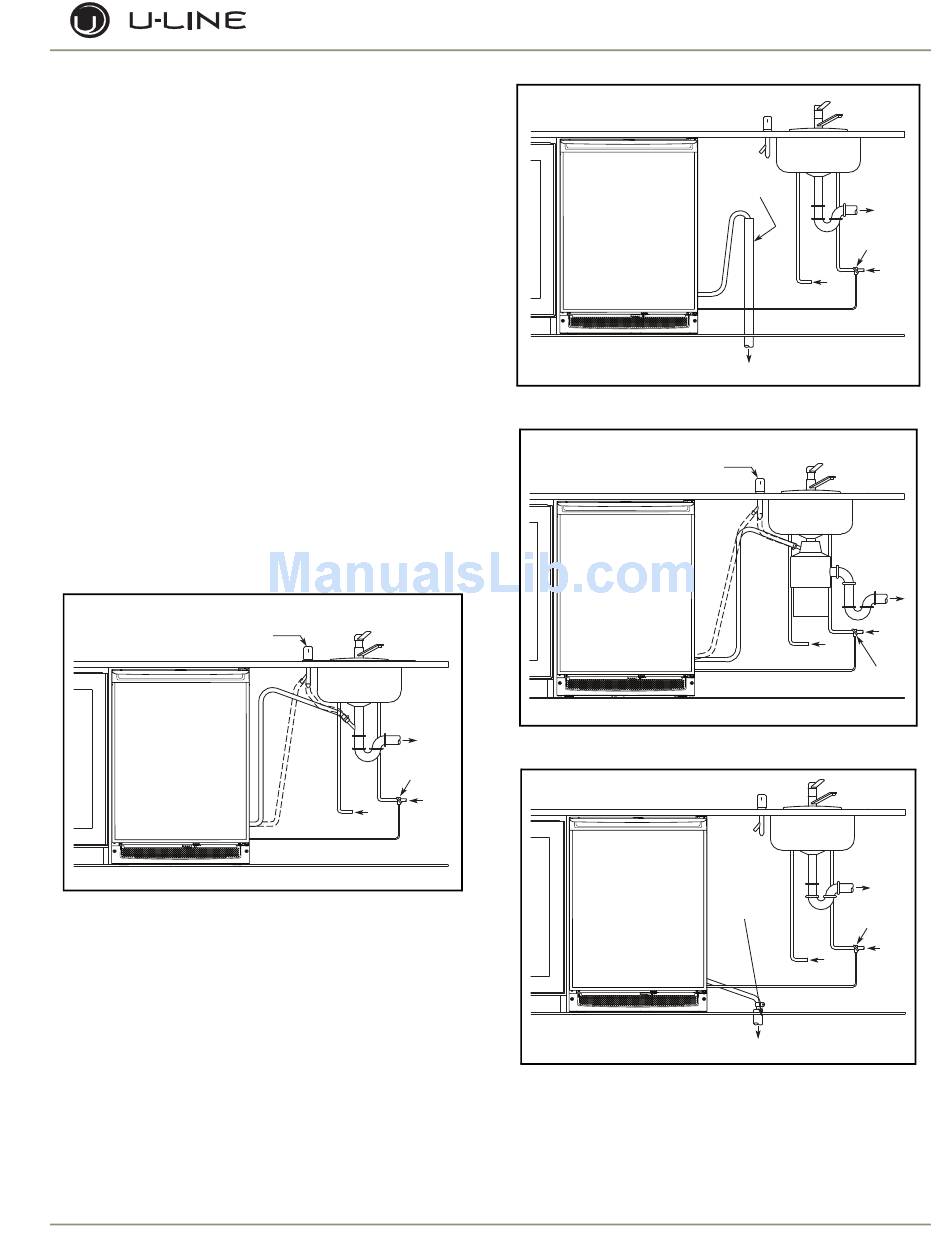

Y-Branch Tailpiece
P60 Pump Required
(Optional Hook-Up)
Figure 73
Air Gap
Shut-Off
Valve
Hot
Water
ULIN_0600a_A
Standpipe
P60 Pump Required
Disposal
P60 Pump
Required
Waste
Floor Drain
Cold
Water
Section 3 - Service and Repair
Air gap must
be left between
drain line and
water level.
Water
Waste
Figure 74
Air Gap
(Optional Hook-Up)
Water
Figure 75
Air gap must
be left between
drain line and
water level.
Water
Waste
Figure 76
Waste
Shut-Off
Valve
Cold
Hot Water
ULIN_0598a_A
Waste
Cold
Hot Water
Shut-Off
Valve
ULIN_0599a_A
Waste
Shut-Off
Valve
Cold
Hot Water
ULIN_0597a_A
3-63
