Section 3 - Service and Repair
REPLACING MOLD AND HEATER
- CO2175F/CO2175DWR
1. Remove ice maker assembly. Refer to Replacing Ice Maker
Assembly.
2. Remove one stripper screw (Figure 61) and stripper.
3. Remove three face plate screws and face plate.
Face plate
screw
3-58
4. Remove one screw and detach limit switch from mold.
5. Detach heater leads.
6. Remove two screws and mold from support housing.
7. To assemble, replace parts in reverse order.
8. Install the ice maker assembly.
Mold and support
housing screws
Heater leads
Face plate
screws
Limit switch
screw

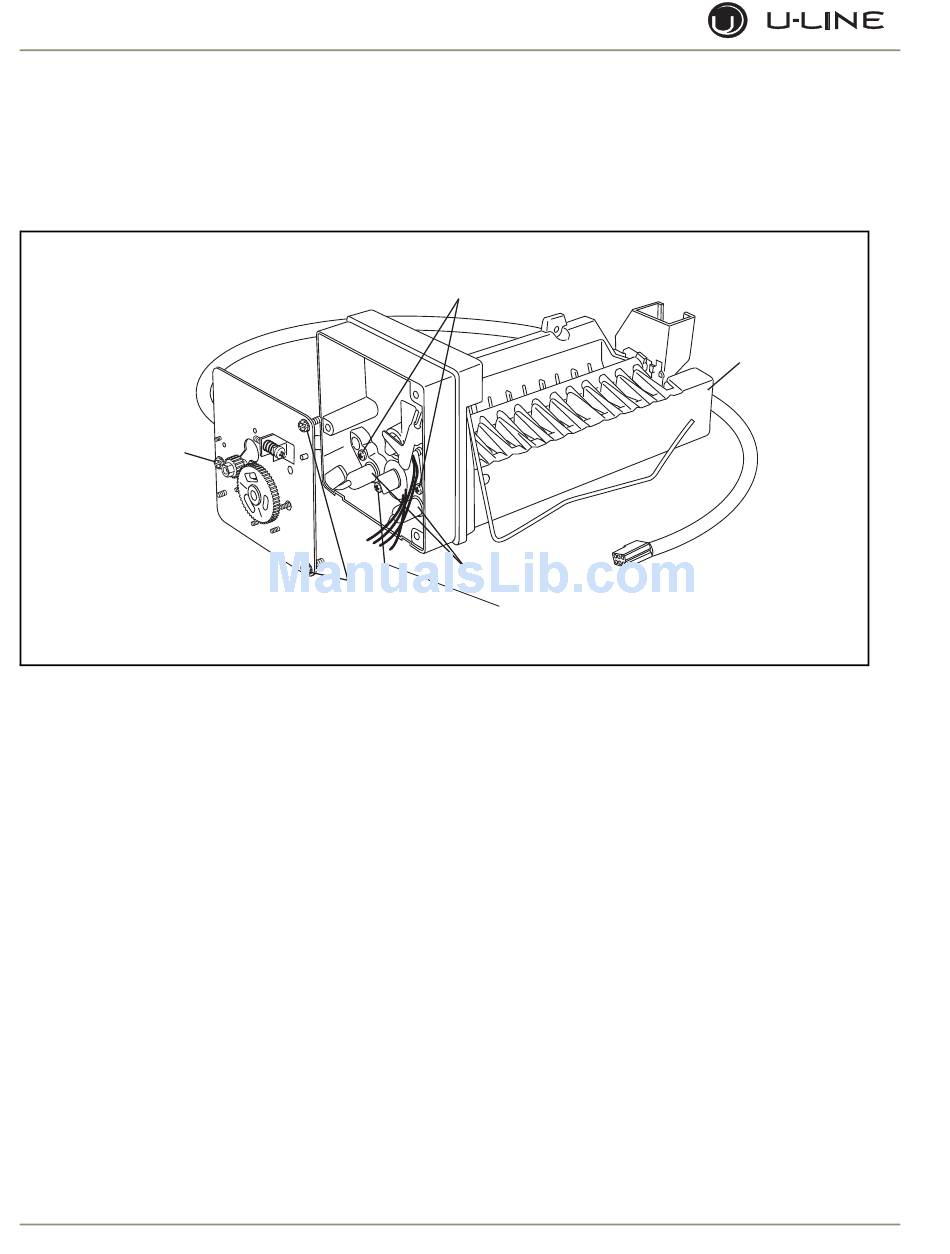

Figure 61
Stripper
ULIN_0374_A
