REPLACING ICE MAKER
1. Unplug unit.
2. Disconnect ice maker wire harness at plug
(Figure 60).
3. Disconnect thermistor plug.
4. Remove water inlet tube.
5. Remove front cover.
6. Advance ejector blade to the 3 o'clock position by turning the 5/
16" hex head on the small brass gear counterclockwise.
7. Remove three screws from wall of freezer housing.
8. Remove ice maker assembly.
9. Install new ice maker assembly.
10. Reconnect plug.
11. Reconnect thermistor plug.
12. Insert water inlet tube.
13. Apply Permagum
®
14. Install back panel.
15. Plug in unit and test.

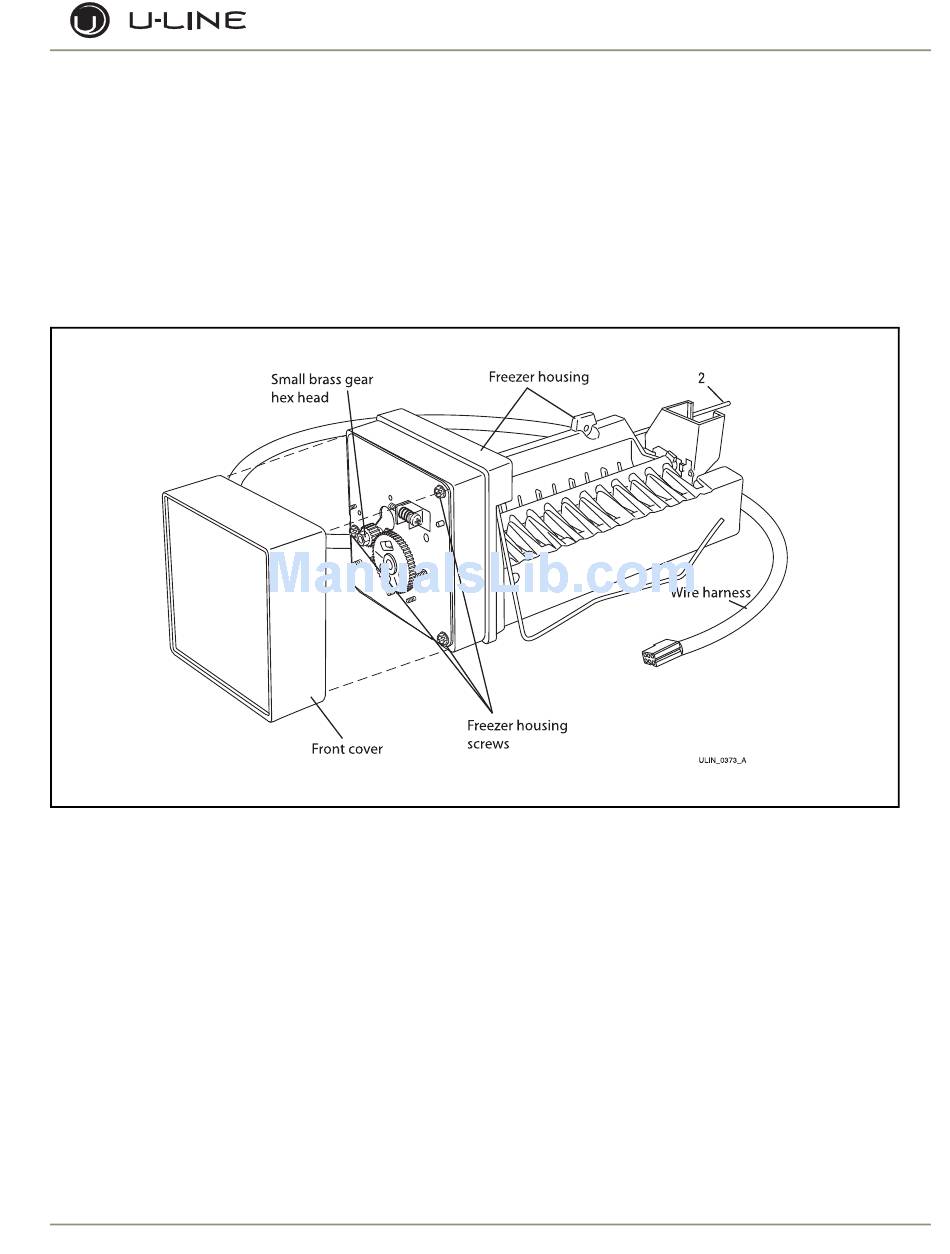

Figure 60
Section 3 - Service and Repair
to all exit holes.
3-57
